Connection Port Functions; Front Panel Display - LEGRAND Server Technology PRO3X User Manual

• •
USB-B
• • AUX
• •
SENSOR

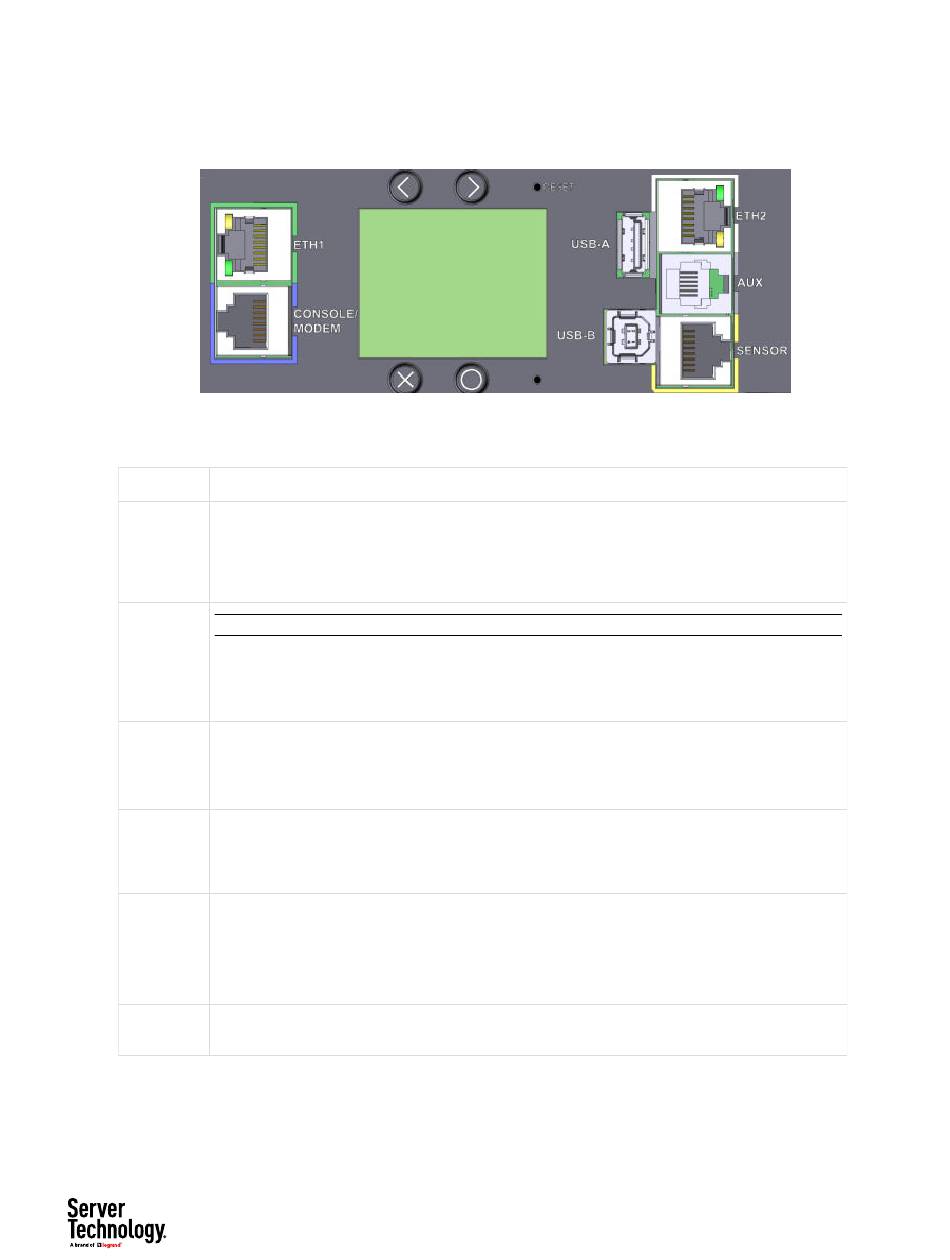

Connection Port Functions

Port Used for...
USB‑B • •
Cascading devices for sharing a network connection.
• • Establishing a USB connection with a computer for: Using the command line interface and
performing disaster recovery with Technical Support.
• • Connecting to an Android mobile device.
USB‑A
This is a powered "host" port.
• •
Connecting to an iOS mobile device.
• •
Connecting a USB device, such as a Logitech® webcam or wireless LAN adapter.
• •
Cascading devices for sharing a network connection.
CONSOLE/
Requires an RJ45 cable with DB9 adapter for serial connections.
MODEM
(RJ‑45)
SENSOR
Connection to one of the following devices:
(RJ‑45) • •
Environmental sensor package(s).
• • Sensor hub.
ETH1/ETH2
Connecting to your company's network via a standard network patch cable (Cat5e/6).
There are two small LEDs adjacent to the port:
• •
Green indicates a physical link and activity.
• • Yellow indicates communications at 10/100 BaseT speeds.
AUX • • Connecting to the AUX port of another unit with an AUX port for power sharing in the event of
inlet failure.

Front Panel Display

The front panel display will vary by model.
