In this example, we want PRO3X to activate the load shedding function when a contact closure sensor
enters the alarmed state. This event rule requires creating a new action before creating the rule.
▶

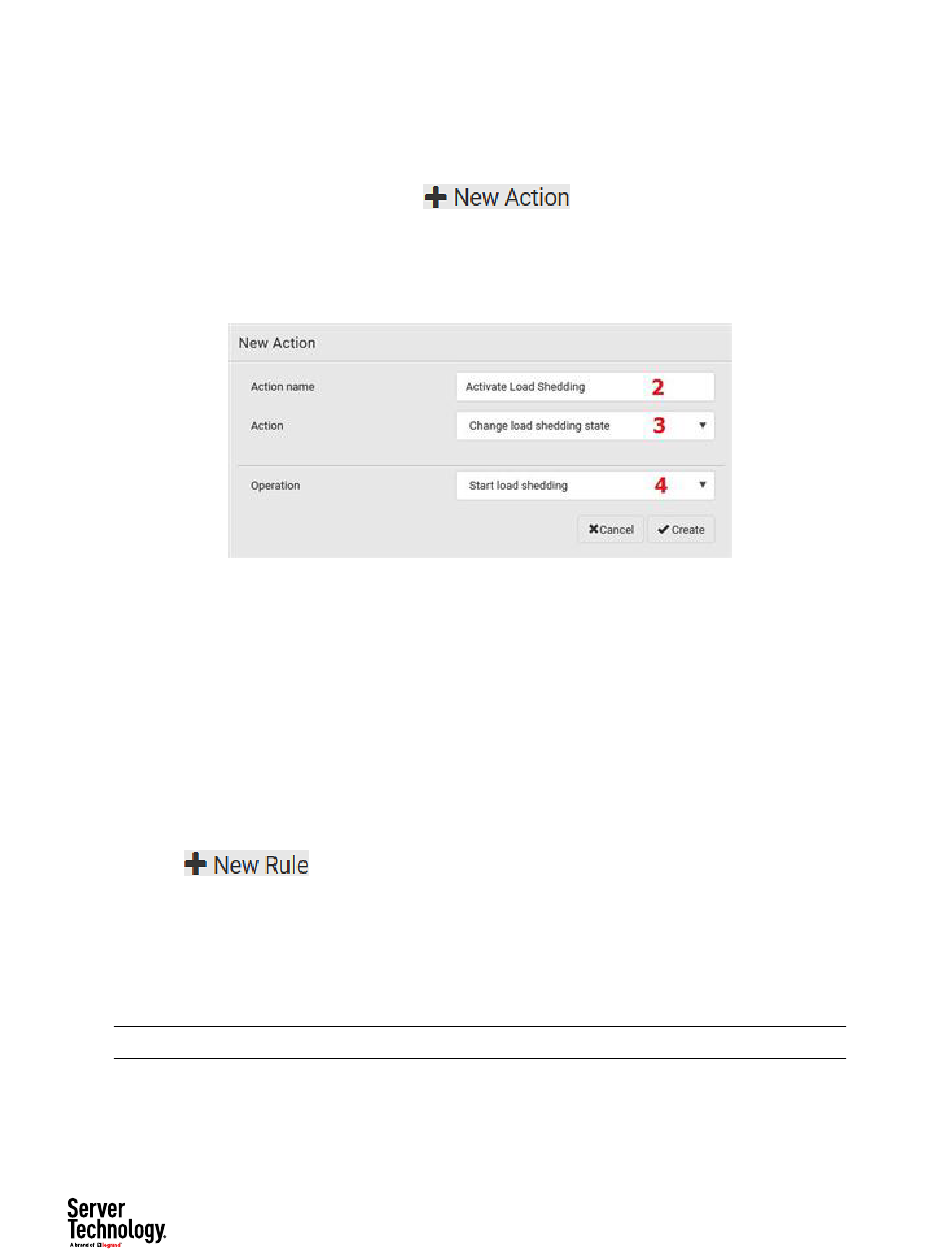

Step 1: create a new action for activating the load shedding
1) Choose Device Settings > Event Rules >
2) In this illustration, assign the name "Activate Load Shedding" to the new action.
3) In the Action field, select "Change load shedding state."
4) In the Operation field, select "Start load shedding."
5) Click Create.
After the new action is created, follow the procedure below to create an event rule that triggers the
load shedding mode when the contact closure sensor enters the alarmed state. This event rule involves
the following:
• •
Event: Peripheral Device Slot > Slot 1 > State Sensor/Actuator > Alarmed/Open/On
• •
Trigger condition: Alarmed
• •
Action: Activate Load Shedding
▶
Step 2: create the contact closure-triggered load shedding event rule
1) Click
2) In this illustration, assign the name "Contact Closure Triggered Load Shedding" to the new rule.
3) In the Event field, select "Peripheral Device Slot" to indicate we are specifying an event related to
the environmental sensor package.
4) Select the ID number of the desired contact closure sensor. In this illustration, the ID number of the
desired contact closure sensor is 1, so select Slot 1.
Note: ID numbers of all sensors/actuators are available on the Peripherals page.
5) Select "State Sensor/Actuator" because the contact closure sensor is a state sensor.
on the Event Rules page.
.
