To switch to a different unit:
1) Click the Switch
2) Select one of the link units from the drop-down list. Link number "2-8" appears in parentheses.
3) The page displays data for the selected link unit.
4) To return to the page for the primary, select the primary unit. Primary number "1" appears in
parentheses.
▶
Configure load shedding on linked units
You can switch between units in the GUI and setup / activate load shedding separately for every link
unit. Activating load shedding on the primary unit will not activate load shedding for the whole cascade.

Re-linking a Link Unit

Re-link is a required function when a link unit no longer recognizes or responds to the primary unit,
most likely caused when the link unit has been reset to factory defaults. Resetting to factory defaults
causes the linked unit in the chain to be unreachable, and it would have to be removed from the chain
manually.

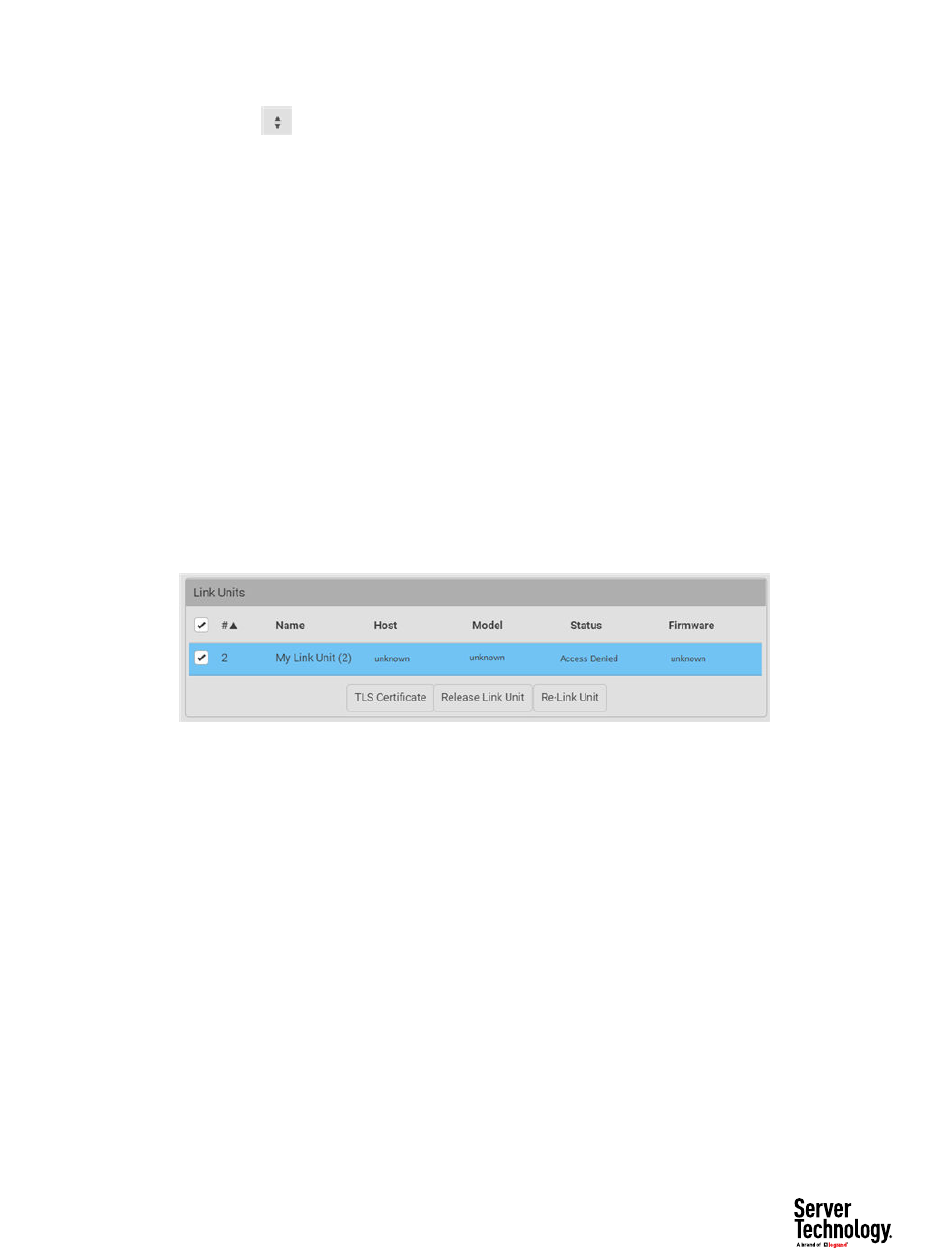

If reset to factory defaults, the status of the disassociated link unit will be displayed as "Access Denied",
shown below.
▶
To re-link a link unit:
1) When you select the link unit in the "Access Denied" status, the Re-link button displays, as noted
above.
2) To reconnect the link unit in the chain, and to regain full control of the unit, click Re-Link Unit.
3) Although re-linking uses the same Link Unit ID and hostname of the unreachable unit, you will need
to reauthenticate with your login credentials.
4) Click the Re-link button.
5) The status of the link unit changes to "OK".

Viewing Link Unit Information

When a link unit is added to the chain, the primary unit view (through the GUI) allows full access to the
operational data of the link unit. For example, using the navigation tabs of the GUI, link unit data is
displayed in several pages: the Dashboard, PDUs, Inlets, Outlets, Outlet Groups, Peripherals, and
Feature Ports.
