Identifying The Sensor Position And Channel; Automatic Management Of Sensors - LEGRAND Server Technology PRO3X User Manual

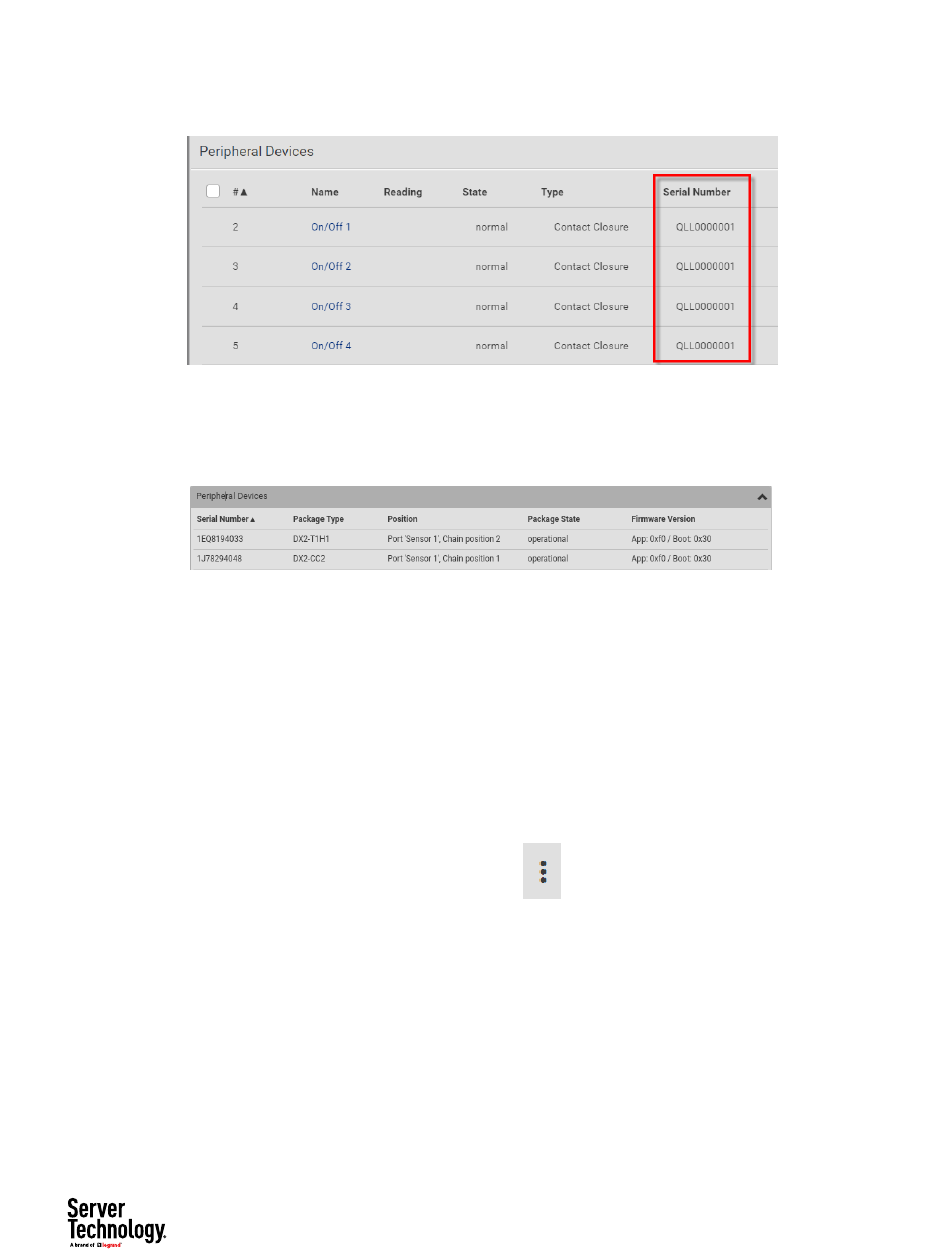

The serial number for each sensor or actuator appears listed in the web interface when it is detected.
Match the serial number from the tag to those listed in the sensor table.

Identifying the Sensor Position and Channel

The Peripheral Devices page shows where each sensor or actuator is connected.
• •
The position information includes the port name and the sensor's position in a sensor chain.
Port 'Sensor', Chain Position 3
For example:
• •
If a sensor hub is involved, the hub port information is also indicated for most sensors.
Port 'Sensor', Hub port 2, Chain Position 3
For example:
• •
If a sensor/actuator contains channels, such as a contact closure sensor or dry contact actuator, the
channel information is included.
Port 'Sensor', Hub port 2, Chain Position 3, Channel 1
For example,

Automatic Management of Sensors

To configure automatic management, go to Peripherals >
▶
After enabling the automatic management function:
When the maximum number of sensors are not yet managed, newly-connected environmental sensors
and actuators are automatically managed upon detection.
▶
After disabling the automatic management function:
You must manually manage all sensors to start communications. Until you do this, they will not have ID
numbers or show sensor readings or states.
> Peripheral Device Setup.
