To control the door:
Per default, only one door handle can be opened at the same time so you must close one door before
opening another. To increase the upper limit of concurrently opened doors, go to the Peripherals page.

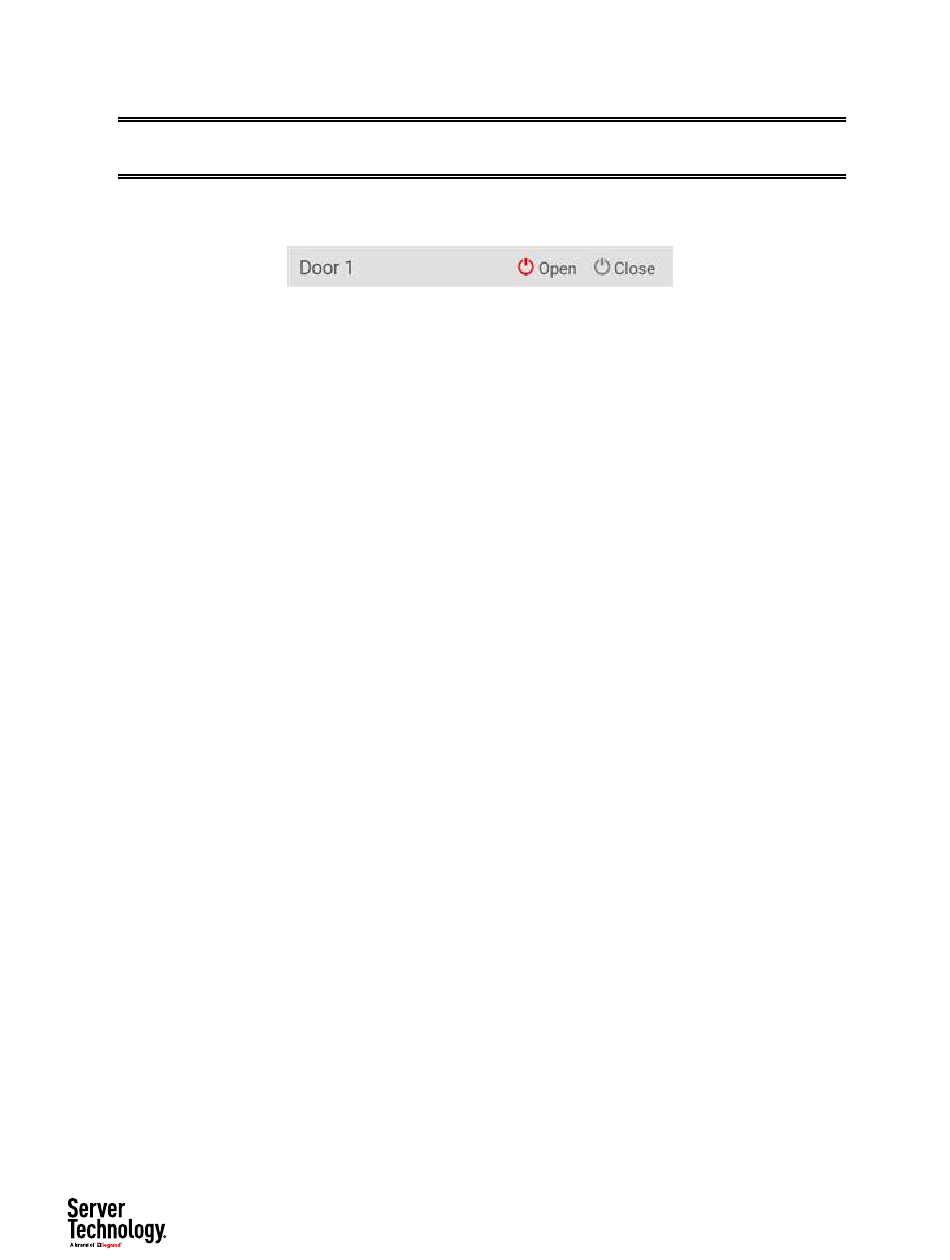

1) Go to the proper door section, and click Open or Close.
2) Confirm the operation when prompted.
3) Now you can physically open or close the door.
▶
Door Terms:
The following terms and definitions are helpful when discussing doors, door handles, and locks. Note
that all door sensors also display in the Peripherals page.
• •
SmartLock Controllers: DX2-DH2C2
• •
Door Handle Assembly: Door Handle and Door Lock which are connected to the SmartLock
controller 8 pin connector, for example "door handle 1".
• •
Door: Door is the same as "Door Handle Assembly", but with optional contact closure sensor that is
connected to the SmartLock controller connector. The contact closure sensor status describes
whether the cabinet door is open or closed.
• •
Door Handle: The small grip on the front of the Door Handle Assembly, which is used to
mechanically open the door by hand if it's unlocked. Sensor status describes if the Door Handle is
pulled out (open) or closed.
• •
Door Lock: The small lock actuator inside of the Door Handle Assembly which locks or unlock the
Door Handle. Sensor status describes if the Door Handle is unlocked or locked.

Card Readers

To open the Card Readers page, choose Card Readers in the Menu.
This page lists all card readers connected, including:
• •
Standalone USB card readers
• •
Card readers integrated with door handles
