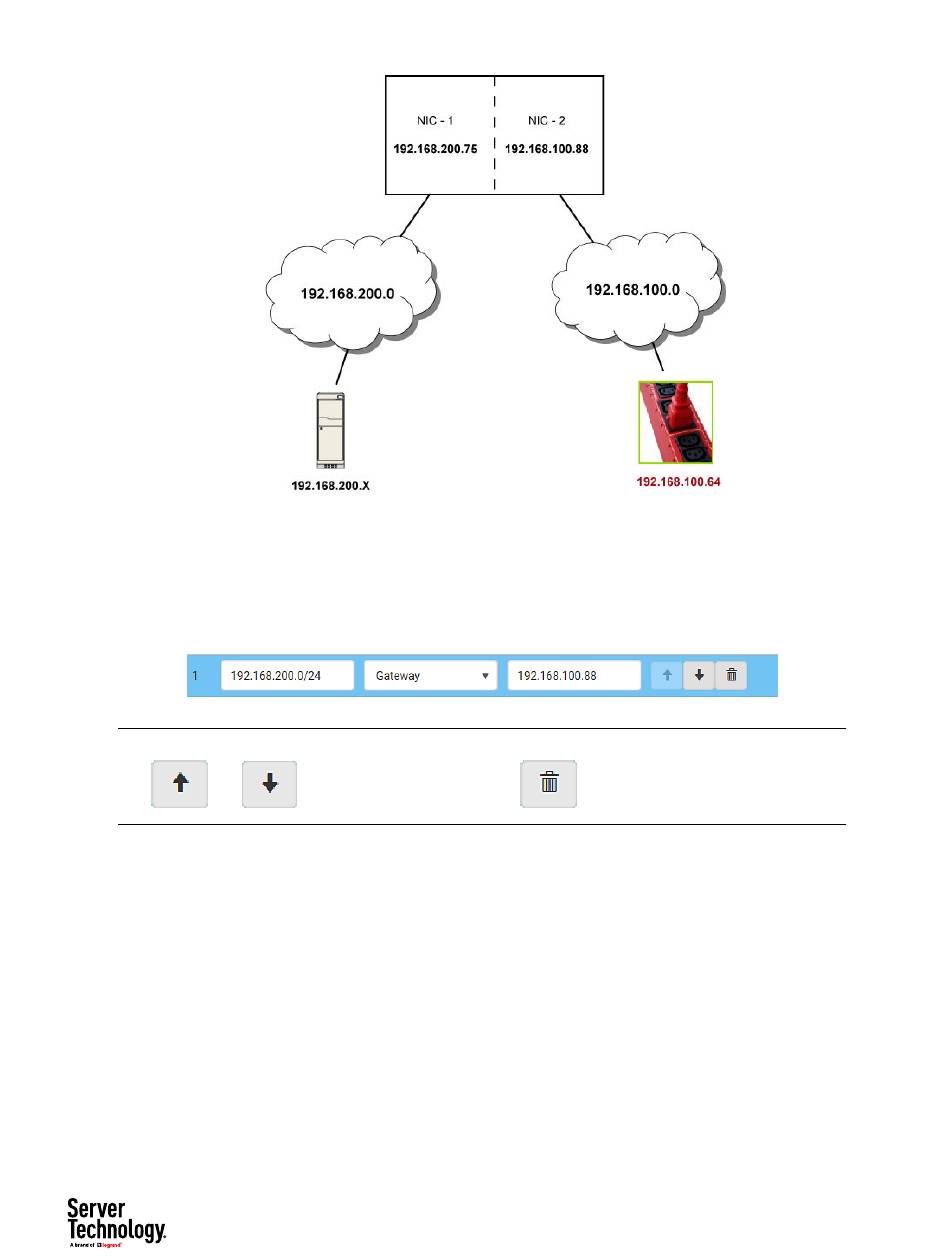

In this example, NIC-2 (192.168.100.88) is the next hop router for your PRO3X to communicate with any
device in the other subnet 192.168.200.0.
In the IPv4 "Static Routes" section, you should enter the data as shown below. Note that the address in
the first field must be of the Classless Inter-Domain Routing (CIDR) notation.
Tip: If you have configured multiple static routes, you can click on any route and then make changes,
use or
▶
IPv6 example:
• •
Your PRO3X: fd07:2fa:6cff:2405::30
• •
Two NICs: fd07:2fa:6cff:1111::50 and fd07:2fa:6cff:2405::80
• •
Two networks: fd07:2fa:6cff:1111::0 and fd07:2fa:6cff:2405::0
• •
Prefix length: 64
to re-sort the priority, or click to delete it.
