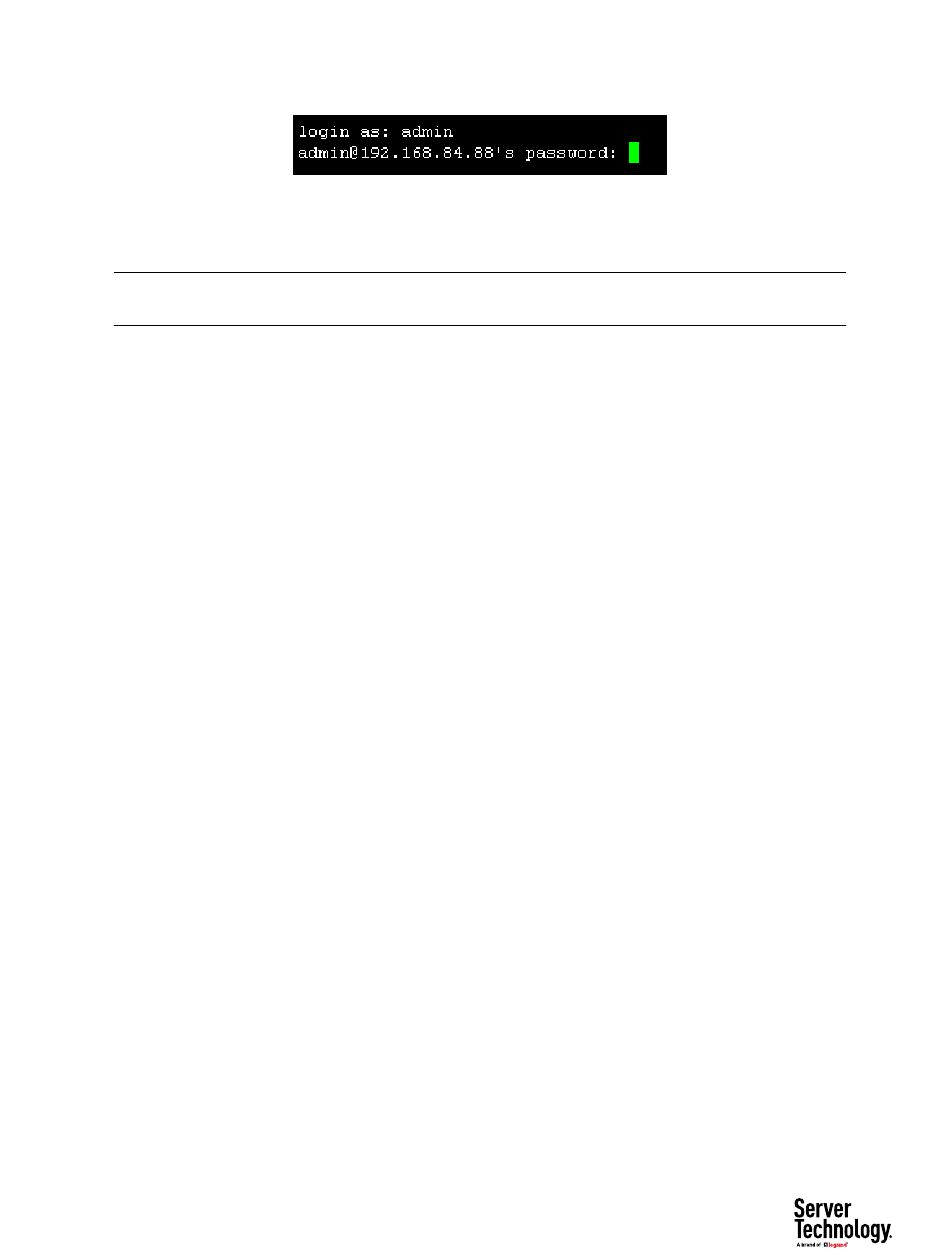

Then you are prompted to enter a password.
4) Type a password and press Enter. The password is case sensitive.
5) After properly entering the password, the PRO3X name appears at the prompt.
Tip: The 'Last login' information, including the date and time, is also displayed if the same user account
was used to log in to this product's web interface or CLI.
6) You are now logged in to the command line interface and can begin administering this product.

With an Analog Modem

The PRO3X supports remote access to the CLI via a connected analog modem. This feature is especially
useful when the LAN access is not available.
▶
To connect to the PRO3X via the modem:
1) Make sure the PRO3X has an analog modem connected. See Connecting an Analog Modem.
2) Make sure the computer you are using has an appropriate modem connected.
3) Launch a terminal emulation program, and configure its baud rate settings according to the baud
rate set for the analog modem connected to the PRO3X. See Configuring the Serial Port.
4) Type the following AT command to make a connection with the PRO3X.
ATD<modem phone number>
5) The CLI login prompt appears after the connection is established successfully. Then type the user
name and password to log in to the CLI.
▶
To disconnect from the PRO3X:
1) Return to the modem's command mode using the escape code +++.
2) After the OK prompt appears, type the following AT command to disconnect from the PRO3X.
ATH

Different CLI Modes and Prompts

Depending on the login name you use and the mode you enter, the system prompt in the CLI varies. The
device name appears with the prompt.
