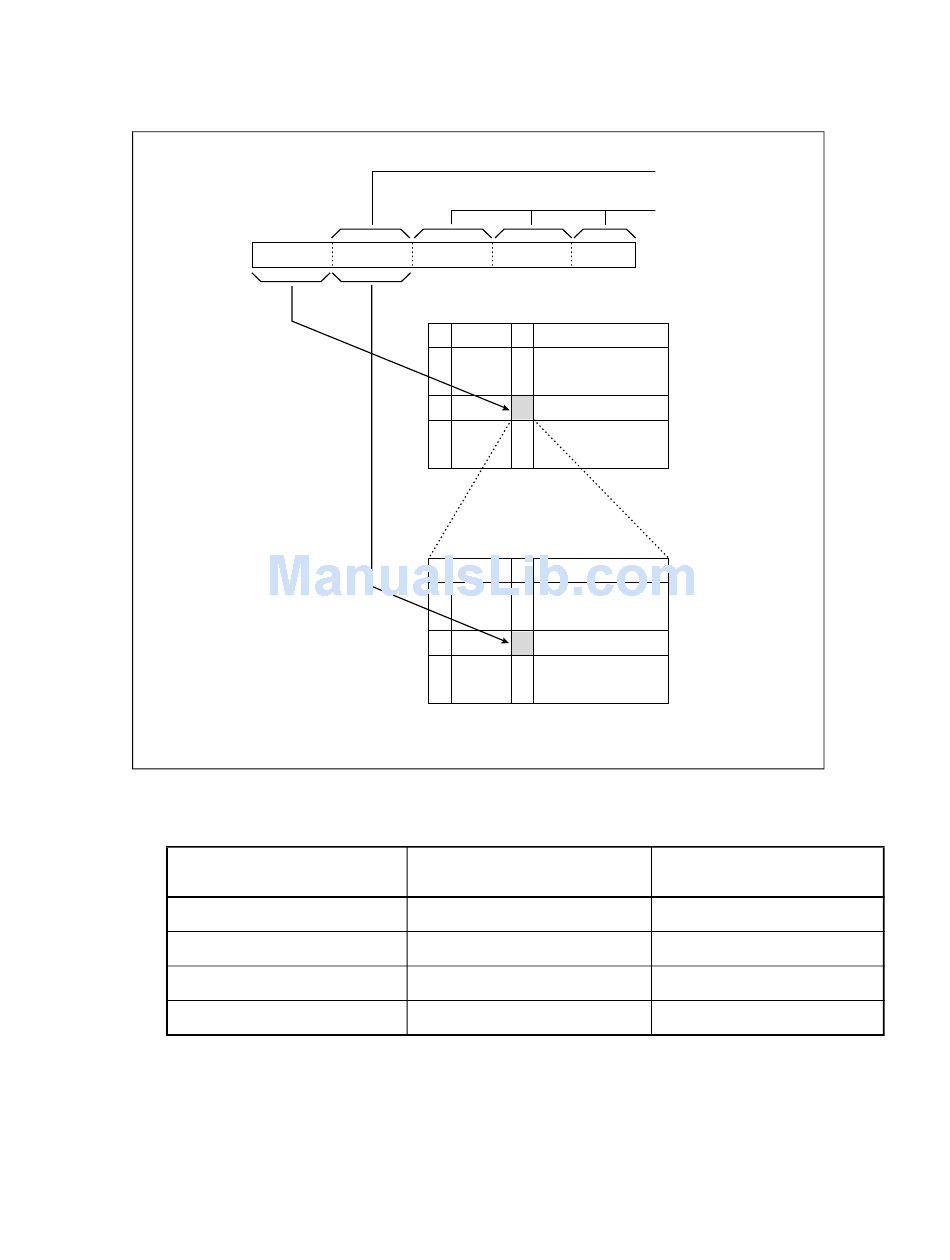

Figure B.9-2 Correspondence between Actual Instruction Code and Instruction Map
Byte 1
Instruction code
*1 The extended page map is a generic name of maps for bit operation instructions, character string operation instructions, 2-byte
instructions, and ea instructions. Actually, there are multiple extended page maps for each type of instructions.
An example of an instruction code is shown in Table B.9-1 .
Table B.9-1 Example of an Instruction Code
Instruction
NOP
AND A, #8
MOV A, ADB
@RW2+d8, #8rel
Byte 2 Operand
Operand
[Basic page map]
XY
+Z
[Extended page map] (*1)
UV
+W
Byte 1
(from basic page map)
00 +0=00
30 +4=34
60 +F=6F
70 +0=70
APPENDIX B Instructions
Some instructions do
not contain byte 2.
Length varies depending
on the instruction.
. . .
Byte 2
(from extended page map)
-
-
00 +0=00
F0 +2=F2
