Block Diagram of Address Match Detection Function

The address match detection module consists of the following blocks:
• Address latch
• Address detection control register (PACSR0/PACSR1)
• Detect address setting registers (PADR0 to PADR5)
Block Diagram of Address Match Detection Function
Figure 22.2-1 shows the block diagram of the address match detection function.

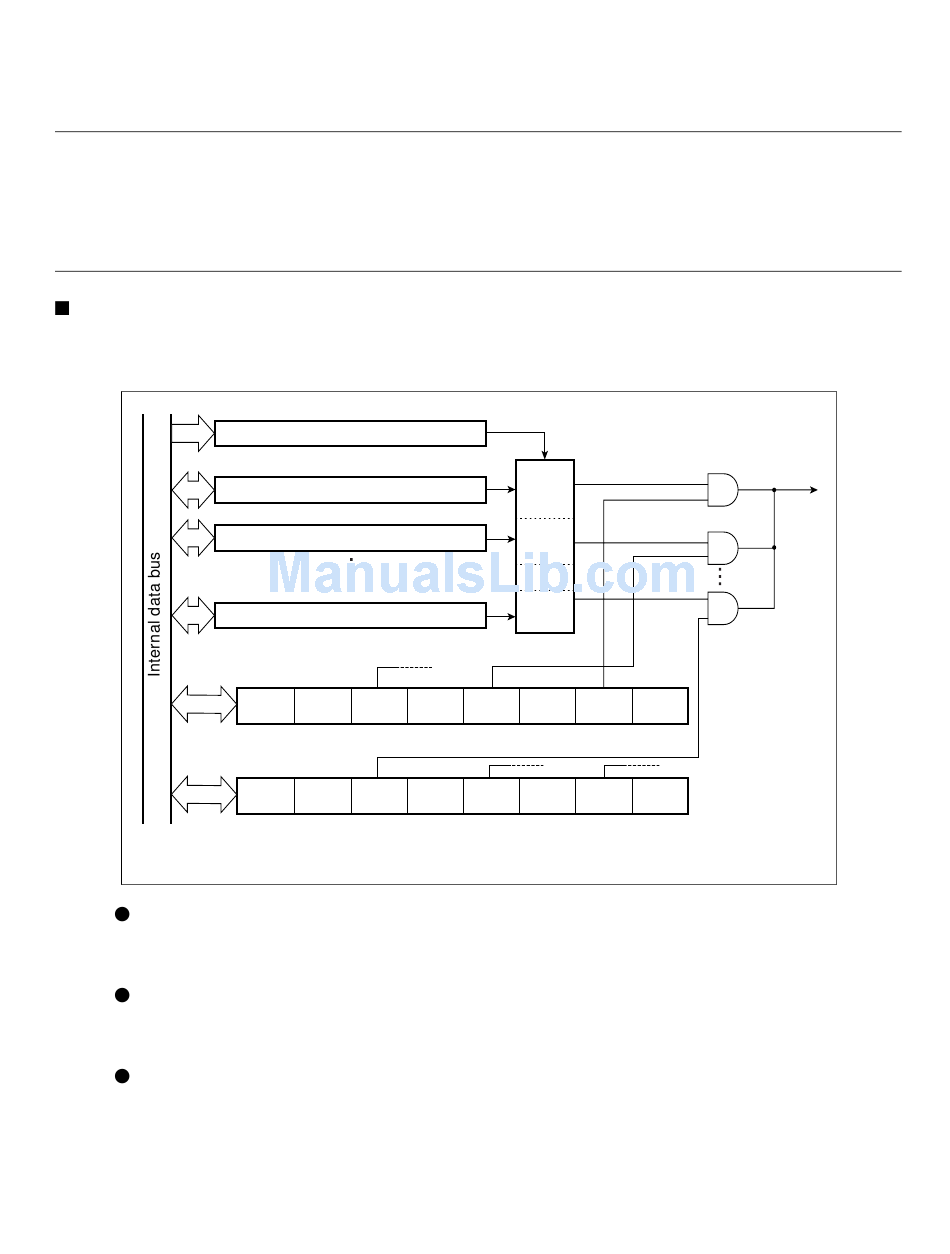

Figure 22.2-1 Block Diagram of the Address Match Detection Function
Detection address setting register 0
Detection address setting register 1
Detection address setting register 5
Reserved: Always setting to 0.
Address latch
The address latch stores the value of the address output to the internal data bus.
Address detection control register (PACSR0/PACSR1)
The address detection control register enables or disables output of an interrupt at an address match.
Detect address setting registers (PADR0 to PADR5)
The detect address setting registers set the address that is compared with the value of the address latch.
Address latch
PADR0 (24 bits)
PADR1 (24 bits)
PADR5 (24 bits)
PACSR0
Reserved Reserved
Reserved
AD2E
Address detection control register 0 (PACSR0)
PACSR1
Reserved
Reserved Reserved
AD5E
Address detection control register 1 (PACSR1)
CHAPTER 22 ADDRESS MATCH DETECTION FUNCTION
Comparator
Reserved
AD1E AD0E
Reserved
AD4E AD3E
INT9 instruction
(INT9 instruction
generation)
Reserved
Reserved
