13.2

Block Diagram of 16-bit I/O Timer

The 16-bit I/O timer consists of the following modules:
• 16-bit free-run timer
• Input capture
Block Diagram of 16-bit I/O Timer
16-bit free-run timer
The count value of the 16-bit free-run timer can be used as the base time for the input capture.
Input capture
When the trigger edge is inputted to the external input pin, or when the trigger edge for the LIN slave baud
rate measurement from the LIN-UART is inputted, the counter value of the 16-bit free-run timer is retained
and the interrupt request is generated at the same time.

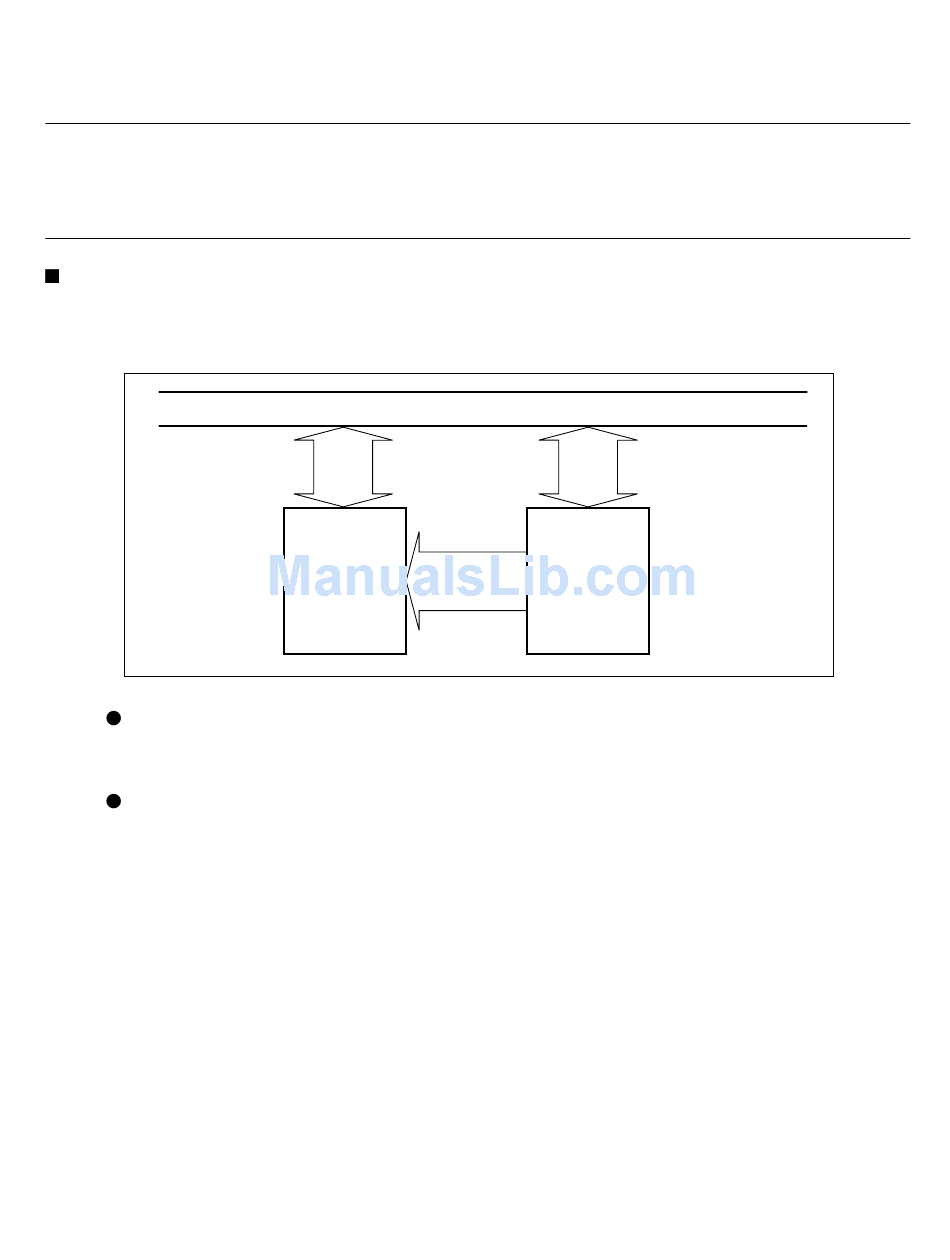

Figure 13.2-1 Block Diagram of 16-bit I/O Timer
Internal data bus
Input
Dedicated bus
capture
CHAPTER 13 16-Bit I/O TIMER
16-bit
free-run
timer
211
