CHAPTER 25 EXAMPLES OF MB90F362/T(S), MB90F367/T(S) SERIAL PROGRAMMING CONNECTION
• Even if the SIN1, SOT1, and SCK1 pins are used for the user system, the control circuit shown in the
figure below is required. (The /TICS signal of the flash microcontroller programmer can be used to
disconnect the user circuit during serial programming.)
AF220/AF210/AF120/AF110
write control pin
AF220/AF210/AF120/AF110
/TICS pin
• Connect the AF220/AF210/AF120/AF110 while the user power is off.
• When the programming power is supplied from the AF220/AF210/AF120/AF110, be careful not to
short-circuit the user power supply.
564

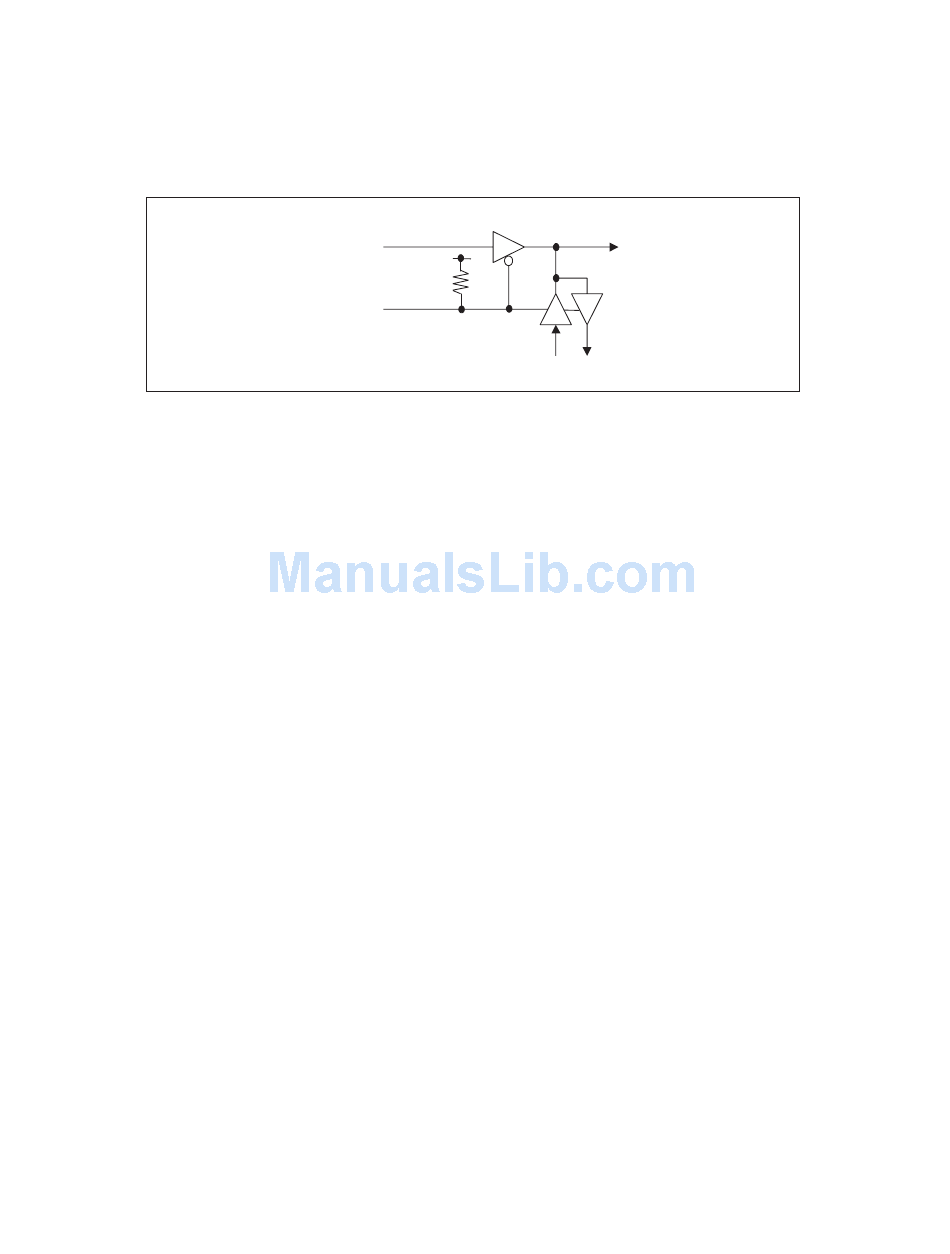

Figure 25.5-2 Control Circuit
10kΩ
User
MB90F362/T(S),
MB90F367/T(S)
Write control pin
