CHAPTER 1 OVERVIEW
1.3

Package Dimensions

MB90360 series has a package.
Note that the dimensions show below are reference dimensions. For formal dimensions
of each package, contact us.
Package Dimensions

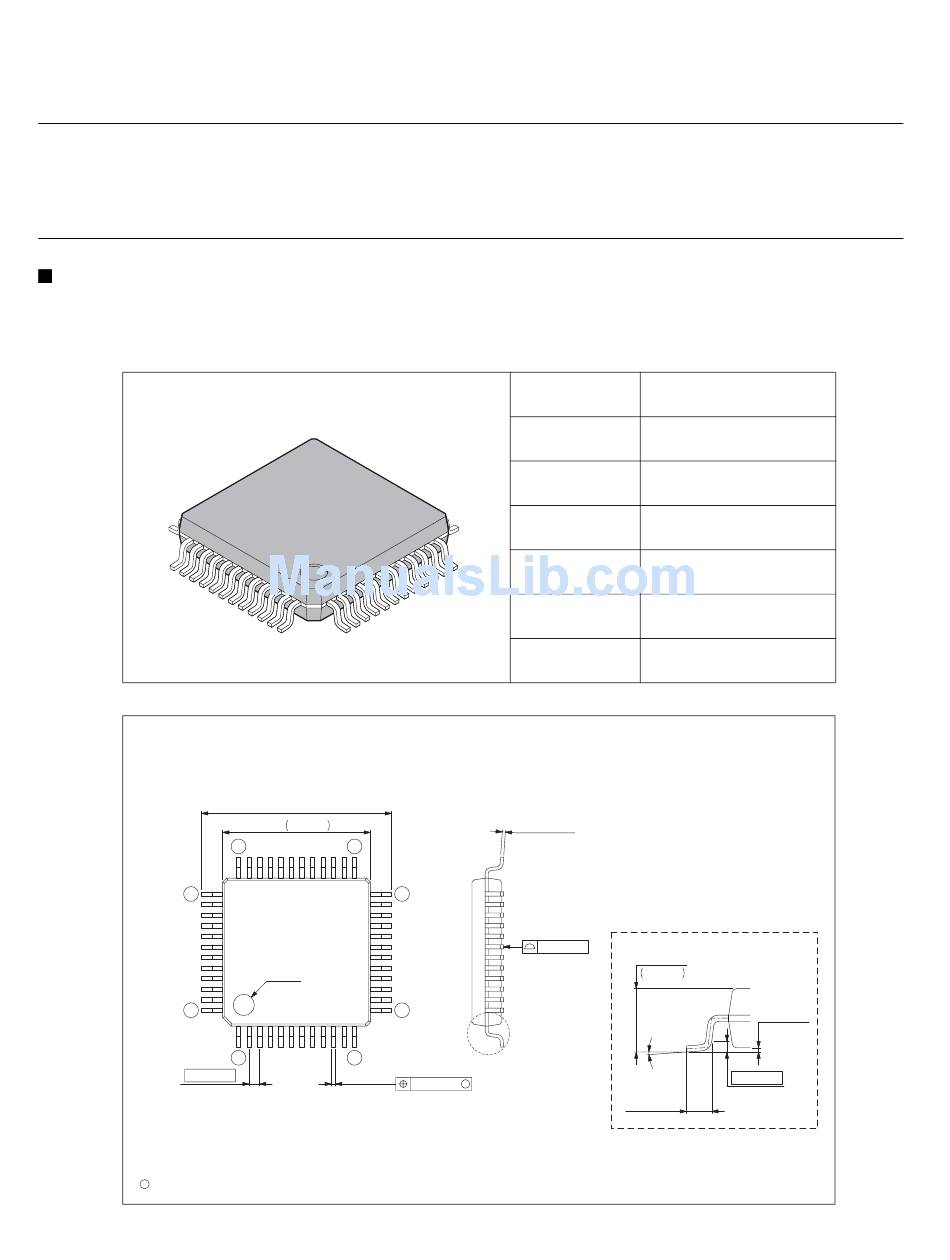

Figure 1.3-1 shows the package dimensions of LQFP-48 type.
48-pin plastic LQFP
(FPT-48P-M26)
37
48
LEAD No.
0.50(.020)
2003 FUJITSU LIMITED F48040S-c-2-2
C
12
Figure 1.3-1 Package Dimensions of LQFP-48 Type
48-pin plastic LQFP
(FPT-48P-M26)
9.00±0.20(.354±.008)SQ
+0.40 +.016
*
7.00 .276 SQ
–0.10 –.004
36 25
24
INDEX
13
1 12
0.20±0.05
(.008±.002)
Lead pitch
Package width ×
package length
Lead shape
Sealing method
Mounting height
Weight
Code
(Reference)
Note 1) * : These dimensions include resin protrusion.
Note 2) Pins width and pins thickness include plating thickness.
Note 3) Pins width do not include tie bar cutting remainder.
0.145±0.055
(.006±.002)
0.08(.003)
"A"
0.08(.003)
M
Dimensions in mm (inches).
Note: The values in parentheses are reference values.
0.50 mm
7 × 7 mm
Gullwing
Plastic mold
1.70 mm MAX
0.17 g
P-LFQFP48-7×7-0.50
Details of "A" part
+0.20
1.50
–0.10
(Mounting height)
+.008
.059
–.004
0.10±0.10
(.004±.004)
0˚~8˚
(Stand off)
0.25(.010)
0.60±0.15
(.024±.006)
