Extended Communication Control Register (Eccr) - Fujitsu F2MCTM-16LX Hardware Manual

20.4.6

Extended Communication Control Register (ECCR)

The extended communication control register (ECCR) provides bus idle detection,
synchronous clock settings, and the LIN synch break generation.
Extended Communication Control Register (ECCR)
Figure 20.4-7 shows the configuration of the extended communication control register (ECCR), and Table
20.4-6 shows the function of each bit.

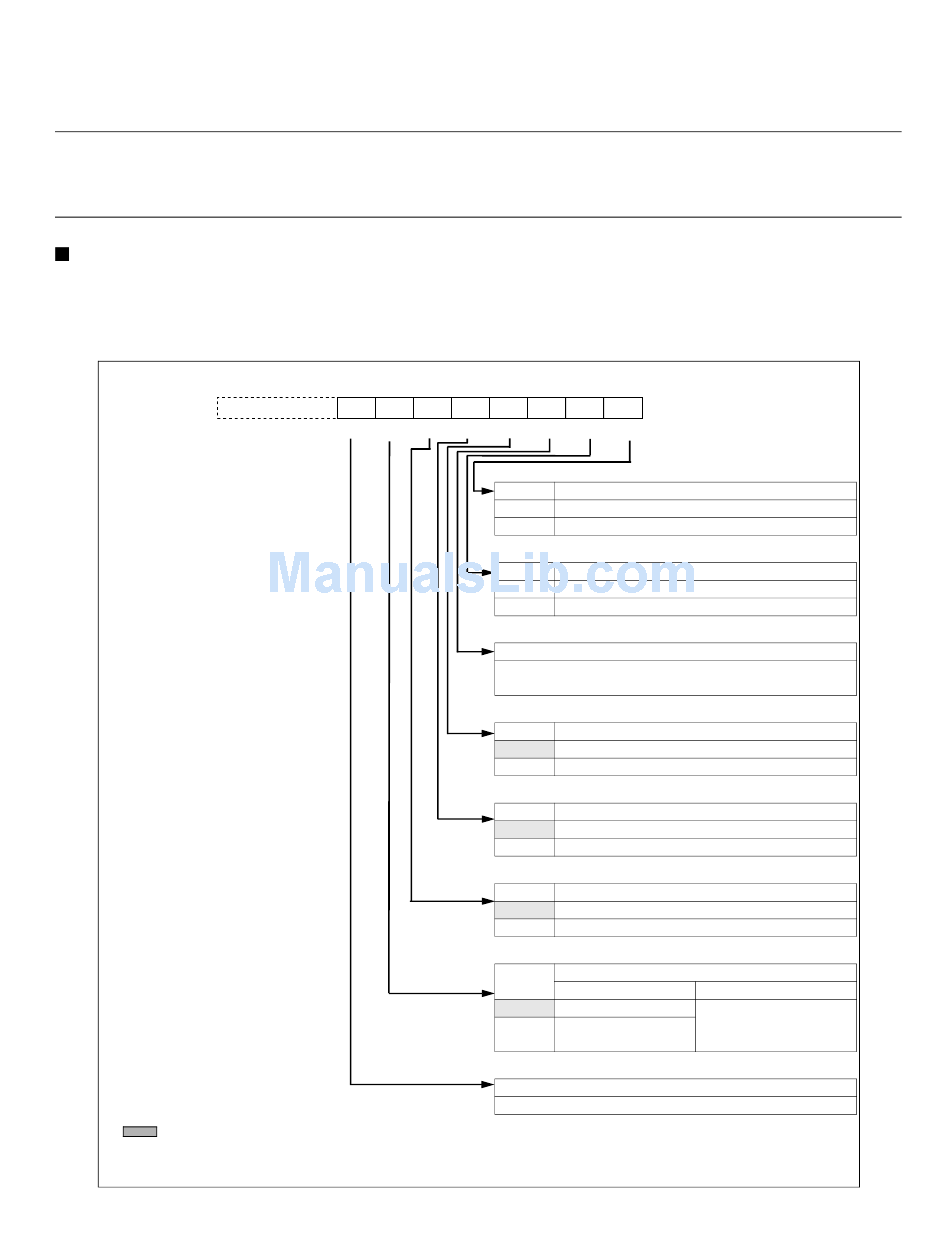

Figure 20.4-7 Configuration of the Extended Communication Control Register (ECCR)
Address
bit 15
ECCR0:000024
H
ECCR1:00002C
H
R/W : Read/Write
R : Read only
W : Write only
X : Undefined
: Initial value
*: Not used in operation mode 2 when SSM = 0
bit 6 bit 5 bit 4
bit 8 bit 7
LBR MS SCDE SSM
−
W R/W R/W R/W
Initial value
bit 3 bit 2 bit 1 bit 0
RBI TBI
000000XX
−
R R
bit 0
TBI* Transmission bus idle detection flag bit
0 Transmission is ongoing
1 No transmission activity
bit1
RBI* Reception bus idle detection flag bit
0 Reception is ongoing
1 No reception activity
bit 2
Unused bit
Reading value is undefined.
Always write "0".
bit 3
SSM Start/stop bit mode enable bit in mode 2
0 No start/stop bit
1 Enable start/stop bit
bit 4
SCDE Serial Clock Delay enable bit in mode 2
0 Disable clock delay
1 Enable clock delay
bit 5
MS Master/Slave mode selection bit in mode 2
0 Master mode (generating serial clock)
1 Slave mode (receiving external serial clock)
bit 6
Generating LIN synch break bit
LBR
write
0 Ignored
Generate LIN Synch
1
break
bit 7
Unused bit
Read value is undefined. Always write 0
CHAPTER 20 LIN-UART
B
read
Always read 0
403
