10.7.1 Quick Command
Quick commands are initiated in Master Mode by simply programming the desired slave device address
into the Master Control Register. The byte count within the Master Control Register is configured to 0
bytes by writing all zeros to bits 15-8. Upon transmission of the device address, the PMBus Interface will
monitor the slave acknowledgement of the address. If the address is not acknowledged, the Nacked bit
within the status register is enabled and the PMBus Interface automatically enables a stop condition on
the PMBus to terminate the message. If the address is acknowledged, a data request is issued to the
processor. The firmware writes a '0' to the Acknowledge Register to terminate the message, forcing the
PMBus Interface to write a stop condition onto the PMBus.
10.7.2 Send Byte
A Send Byte message consists of the device address, a single data byte and an optional PEC byte. To
initiate a Send Byte message, the data byte to be transmitted to the slave is loaded into bits 7-0 of the
Transmit Data Register. The Master Control Register is configured with the device address. To transmit a
PEC byte with the message, the PEC_EN bit within the Master Control Register is asserted high when the
address is programmed.
After programming the Master Control Register, the PMBus Interface initiates the Send Byte message
onto the PMBus. The firmware can wait for an End of Message interrupt from the PMBus Interface. Upon
receipt of the EOM interrupt, the Status Register is read to verify the slave properly acknowledged the
transmitted data.
10.7.3 Receive Byte
A Receive Byte message consists of the device address, a single data byte and an optional PEC byte.
Data is being read from the slave in a Receive Byte message. To initiate a Receive Byte message, the
firmware programs the device address, the R/W bit and the optional PEC_EN into the Master Control
Register. The R/W bit is enabled high to indicate a read message type (data transmitted from Slave to
Master).
SNIU028A – February 2016 – Revised April 2016
Submit Documentation Feedback
S
Device Addr

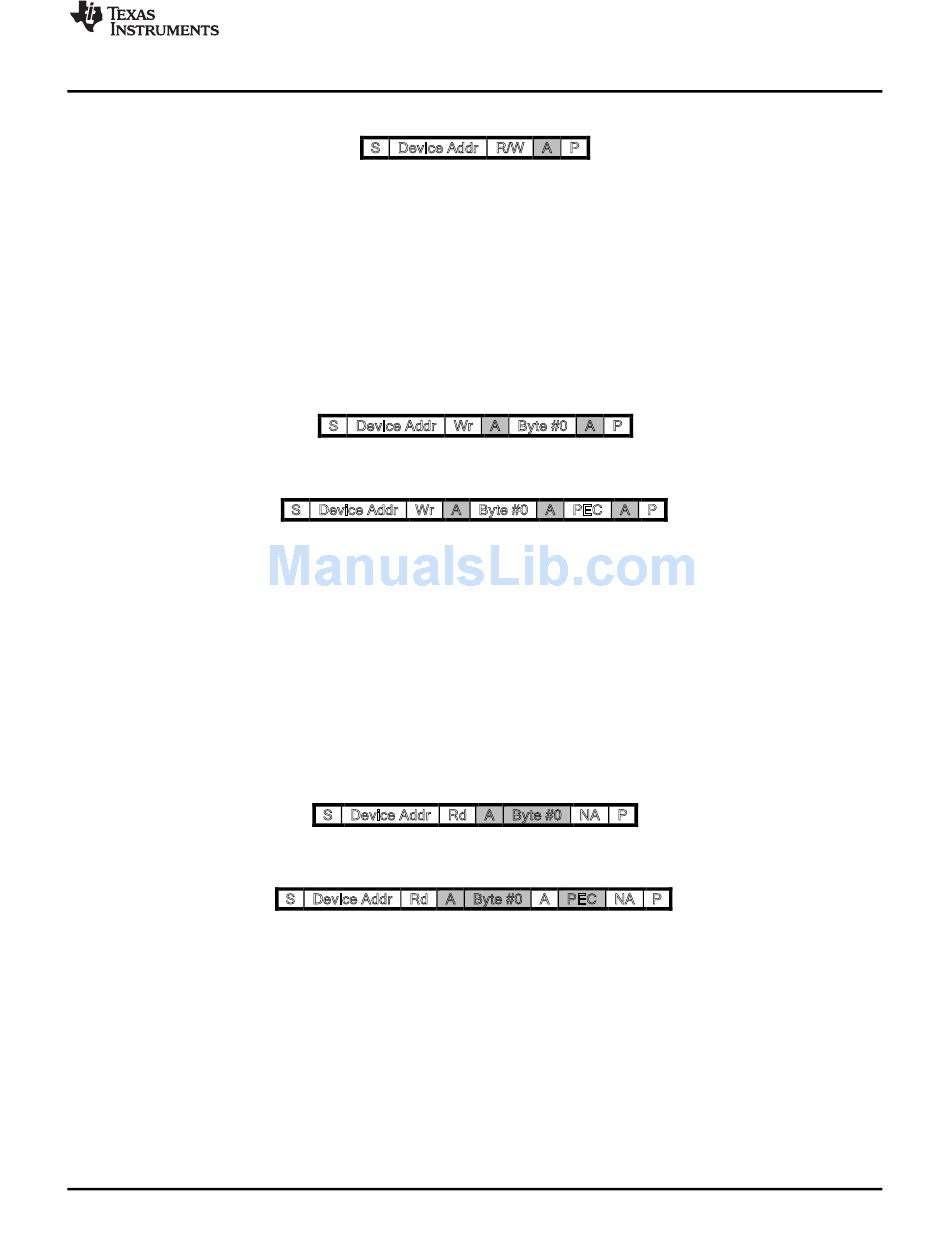

Figure 10-22. Quick Command Format
S
Device Addr
Wr
Figure 10-23. Send Byte w/o PEC Byte
S
Device Addr
Wr
A
Figure 10-24. Send Byte with PEC Byte
S
Device Addr
Rd
Figure 10-25. Receive Byte w/o PEC Byte
S
Device Addr
Rd
A
Figure 10-26. Receive Byte with PEC Byte
Copyright © 2016, Texas Instruments Incorporated
R/W
A
P
A
Byte #0
A
P
Byte #0
A
PEC
A
P
A
Byte #0
NA
P
Byte #0
A
PEC
NA
P
Master Mode Operation Reference
PMBus Interface/I2C Interface
373
