Texas Instruments TIDA-050043 Design Manual

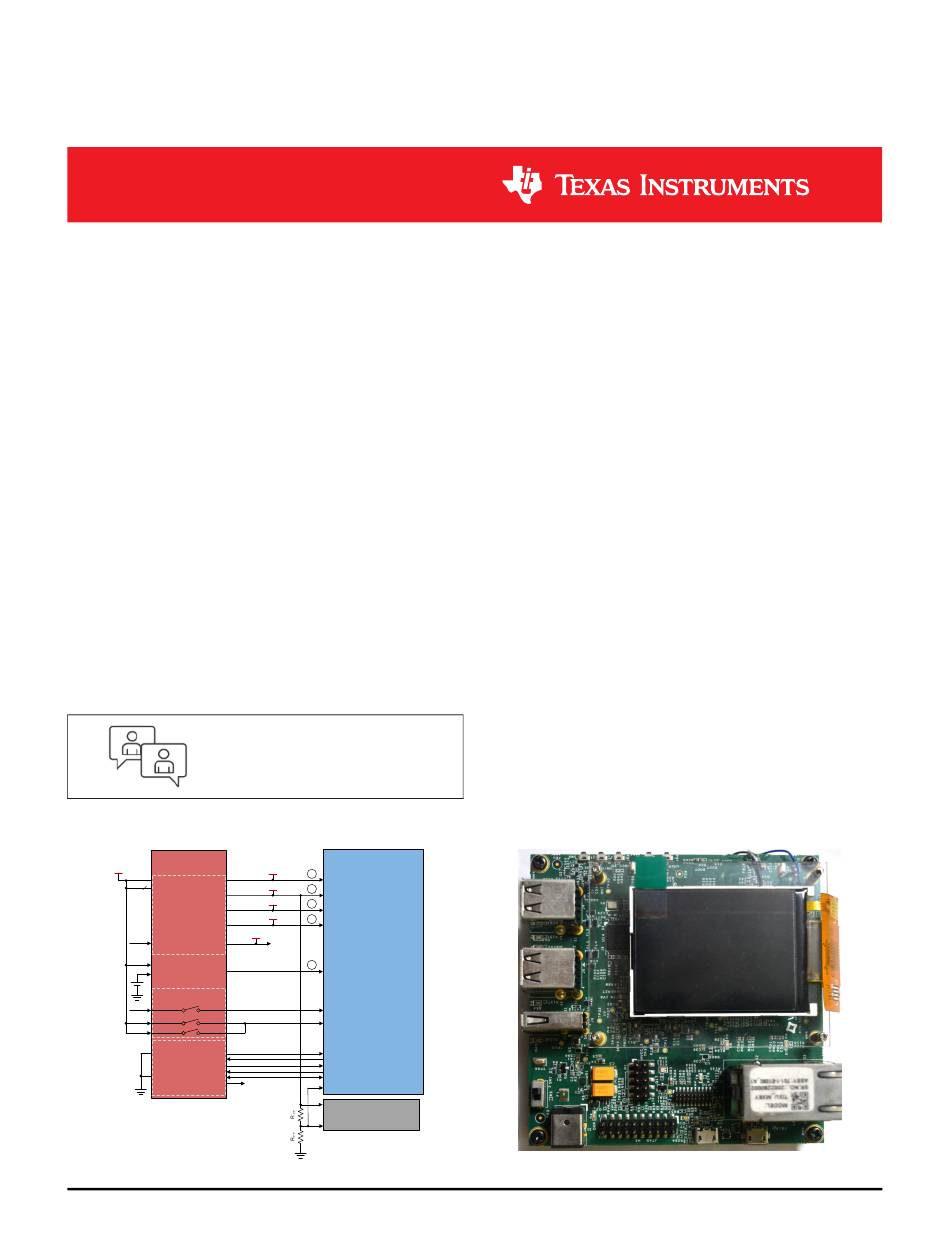

Design Guide: TIDA-050043
Integrated Power Supply Reference Design for
NXP i.MX 6ULL
Description
This reference design is a fully functional development
board powering an NXP™ i.MX 6ULL application
processor from a TPS6521815 PMIC. The hardware
design consists of DDR3L SDRAM (512 MB), 32-MB
Serial NOR Flash, 8-GB eMMC 5.0 iNAND, SD Card
interface v3.0, dual-channel 100Base-T Ethernet, 5-
channel USB hub with Type-A ports, micro-AB USB
OTG, mountable LCD screen, and expansion
connector for additional inputs and outputs. This
design is intended to be used as a reference for data
concentrator projects in grid communications or for
any project using the i.MX 6ULL, i.MX 6ULZ, or i.MX
6UltraLite processor that requires evaluation of
alternative power solutions.
Resources
TIDA-050043 Design Folder
TPS6521815 Product Folder
TPS22964C Product Folder
TPS2054B Product Folder
INA3221 Product Folder
DP83849I Product Folder
Ask our TI E2E™ support experts
TPS6521815
PMIC
5 V
1.8 A
DCDC1
IN_BIAS
4
IN_DCDCx
1.8 A
DCDC2
1.8 A
DCDC3
1.6 A
DCDC4
400 mA
DCDC3
IN_LDO1 LDO1
Regulators
IN_BU
DCDC6
CC
Load Switches 1-3
IN_LS1
DCDC3 LS1
IN_LS2 LS2
IN_LS3 LS3
Digital I/O
AC_DET
PGOOD
PWR_EN
nINT
SCL
DC34_SEL
SDA
GPO1,3
TIDUEW7 – May 2020
Submit Documentation Feedback
i.MX 6ULL, 6UltraLite
Processor
1.28 V / 1.33 V
1
VDD_SOC, VDD_ARM
1.35 V
2
NVCC_DRAM
3.3 V
3
VDD_HIGH_IN
1.8 V
3
NVCC_1V8
2.8 V
to LCD
0
VDD_SNVS_IN
VDDA_ADC_3P3, NVCC_3V3
USB_OTG_VBUS
POR_B
PWR_ON_REQ
GPIO
I2Cx_SCL
I2Cx_SDA
DRAM_VREF
VDD, VDDQ
DRAM Memory Module (DDR)
VREF
Copyright © 2020, Texas Instruments Incorporated
Features
• Full system-on-board for rapid development of NXP
i.MX 6ULL, i.MX6 ULZ, and i.MX 6UltraLite
systems
• Low-power modes and DVFS supported
• Ethernet, USB wired connectivity
• LCD display included for real-time current
monitoring
• Selectable boot options (SD, eMMC, QSPI)
Applications
• Data Concentrators
• Electricity Meter
• HVAC Gateway
• ARM-based SoM-CoM
• Panel PLC (HMI)
I
I
I
I
I
I
I
Order from RadiumBoards.
Integrated Power Supply Reference Design for NXP i.MX 6ULL
1
