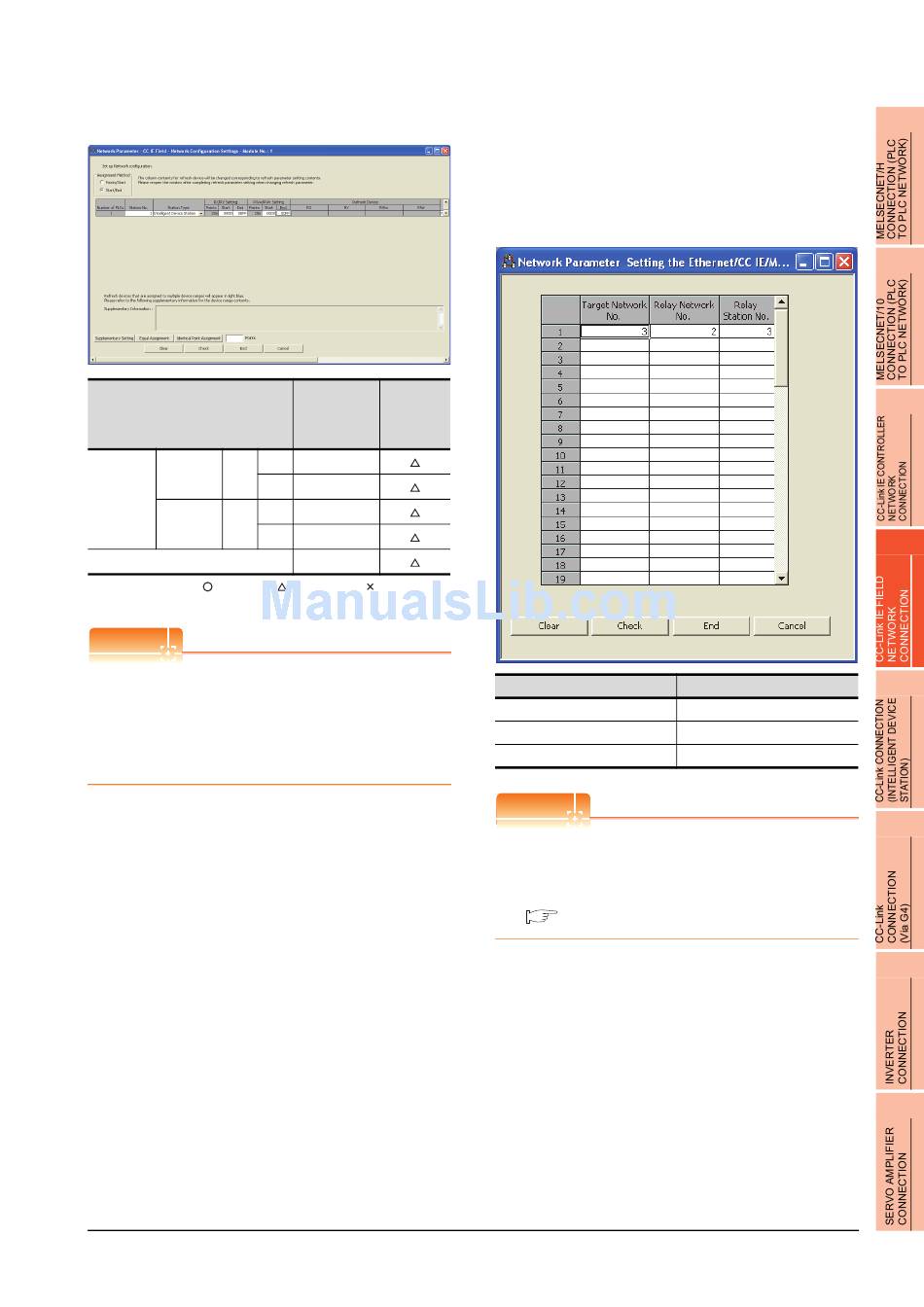

(b) Network Configuration Settings
Item
Start
Rx/RY Station
Rx/RY, setting No.1
RWw/RWr
Start
*1
setting(1) RWw/RWr Station
setting No.1
Reserved/Error Invalid Station
: Necessary
*1 Be sure to set it to perform the cyclic transmission.
POINT POINT POINT
(1) When changing the network parameter
After writing the network parameter to the PLC
CPU, operate the PLC CPU ether turning OFF and
then ON or resetting.
(2) GOT station type
Set the GOT as an intelligent device station.
Setting
necessity at
Set value
GOT
connection
0000
H
End 00FF
H
00000
H
End 000FF
H
No setting
: As necessary : Not necessary
(c) Routing parameter setting
Up to 64 [Transfer Network No.]s can be set.
However, the same transfer network number
cannot be set twice or more (multiple times).
Therefore, the one that can access to other station
from the request source host GOT is 64 kinds of
[Transfer Network No.]s.
Item
Transfer target network No.
Relay network No.
Relay station No.
POINT POINT POINT
Routing parameter setting of request source
Routing parameter setting is also necessary for the
request source GOT.
For the setting, refer to the following.
12.3.3 Routing parameter setting
12. CC-Link IE FIELD NETWORK CONNECTION
12.4 PLC Side Setting
Range
1 to 239
1 to 239
0 to 120
12 - 17
