(2) Connecting the GOT and PLC in computer link
connection (when connecting to QJ71C24 (N))

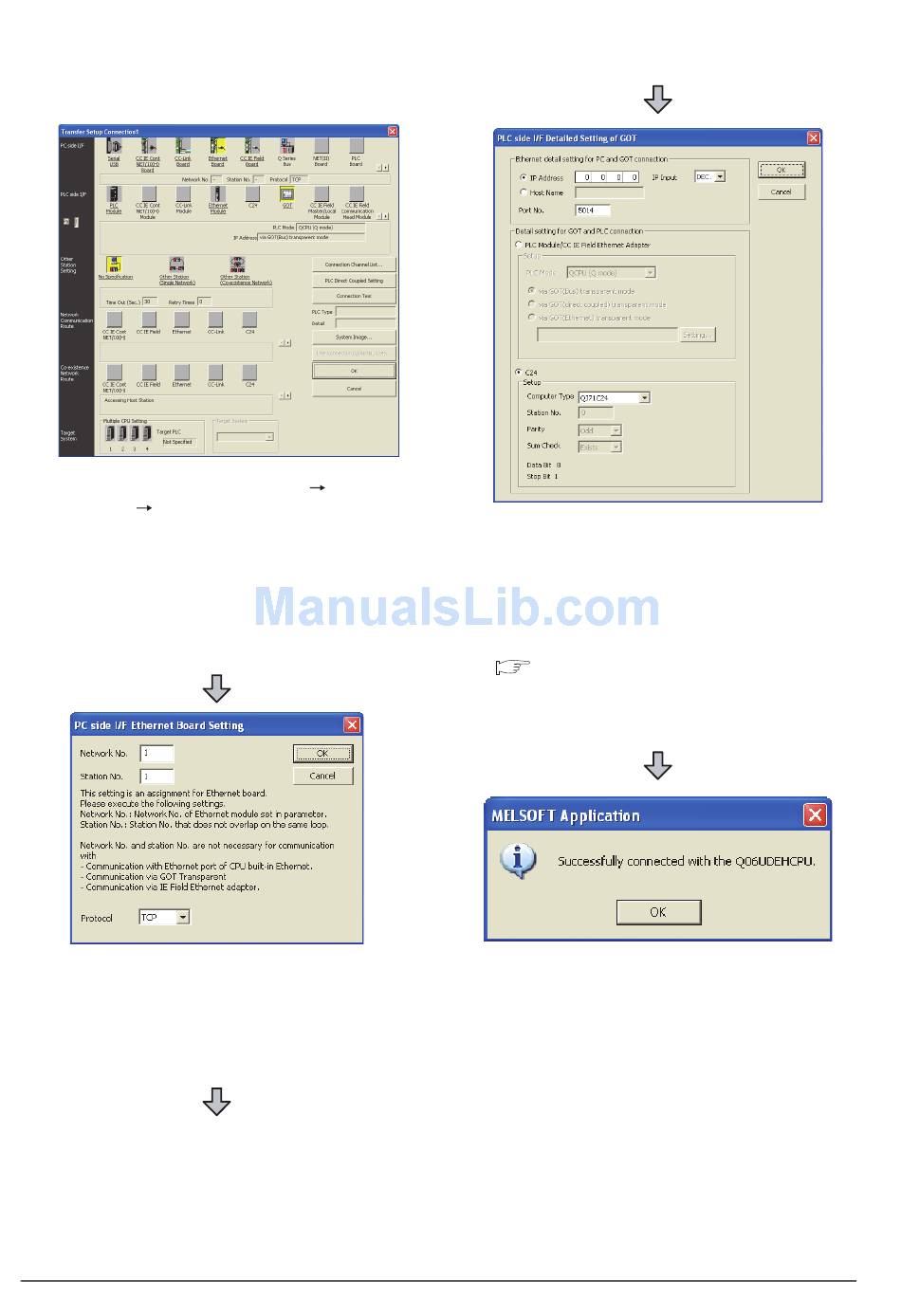

1.
Click the Connection Destination view
Destination] [(Connection target data name)] in the
Navigation window of GX Works2.
2.
The [Transfer Setup] is displayed.
3.
Set the [Transfer Setup]:
PC side I/F : Ethernet Board
PLC side I/F : GOT
Other Station Setting : No specification
4.
Double-click [Ethernet Board] of the PC side I/F to
display [PC side I/F Ethernet Board Setting].
5.
Set the protocol to TCP. Network No. and Station No.
are not required to be changed (default) because they
are not used.
23 - 66
23. FA TRANSPARENT FUNCTION
23.6 Personal Computer Side Setting
[Connection
6.
Double-click [GOT] of the PLC side I/F to display
[PLC side I/F Detailed Setting of GOT].
7.
Set the IP address and port No. in [Ethernet detail
setting for PC and GOT connection].
Set the IP address and port No. to the same as the
Ethernet download setting.
8.
Check [C24] in [Detail setting for GOT and PLC
connection].
9.
The screen returns to [Transfer Setup]. Click
[Connection Test] to check if GX Works2 has been
connected to the QCPU (Q mode).
23.5.1 (b) Ethernet download setting
