VoiceFinder AP200 VoIP Residential Gateway (RGW) User's Guide Version 1.1
E0.0
10.10.10.1
Phone D
PSTN User A
123-4567
Description)
FXO voice port of VoIP gateway A is connected with PSTN directly, Phone B
and Phone C are able to connect external PSTN using gateway A.
Configuration
Gateway(config)# show dial-peer voice
POTS Peers :
Pots peer 100
dest-pattern = 100
port = 1/0 (0)
prefix =
register E.164 = yes
administrative status = up
AddPac Technology Co.,Ltd.

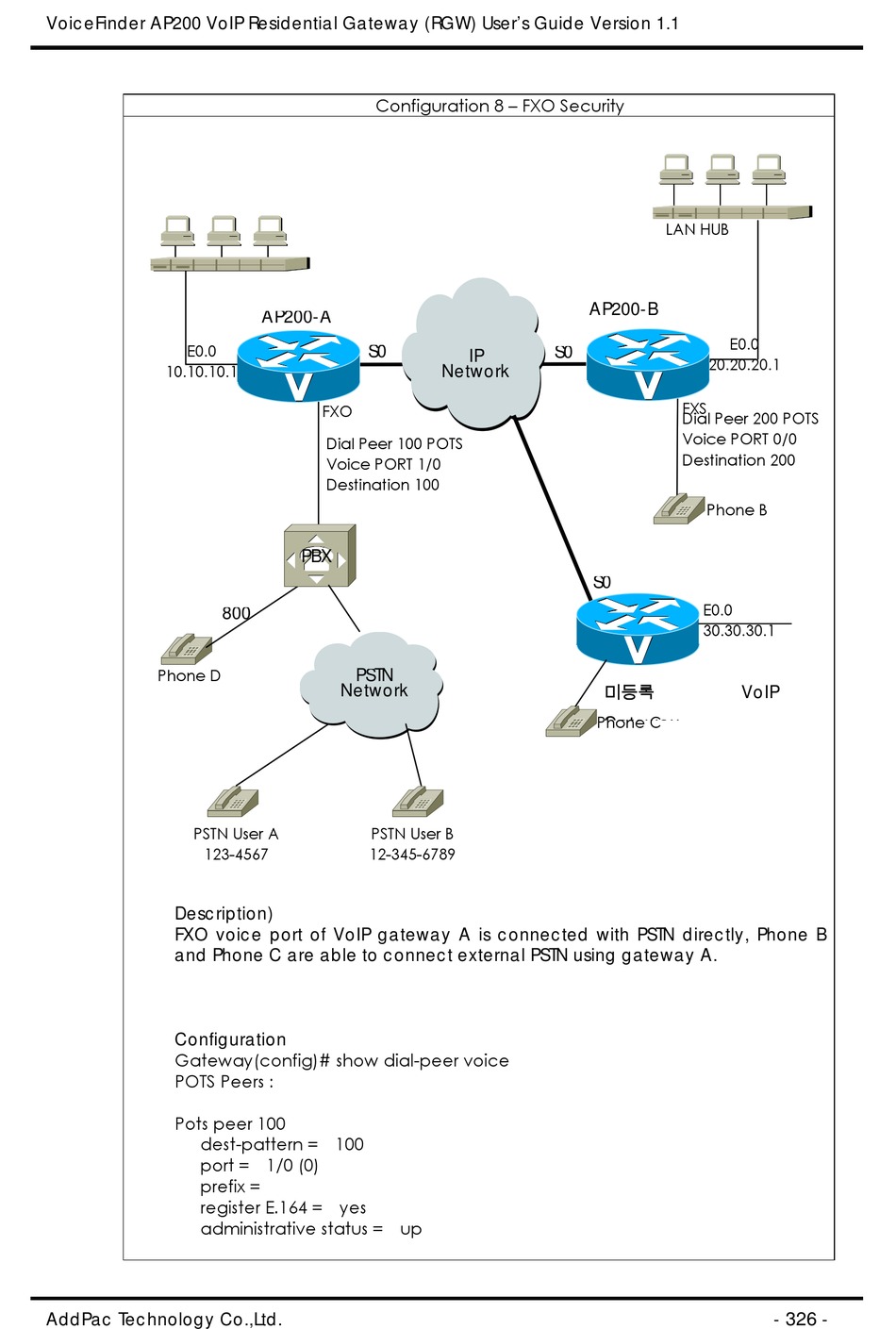

Configuration 8 – FXO Security
AP200-A
S0
FXO
Dial Peer 100 POTS
Voice PORT 1/0
Destination 100
PBX
800
PSTN
Network
PSTN User B
12-345-6789
AP200-B
S0
IP
Network
S0
미등록
Gateway
Phone C
LAN HUB
E0.0
20.20.20.1
FXS
Dial Peer 200 POTS
Voice PORT 0/0
Destination 200
Phone B
E0.0
30.30.30.1
VoIP
326
- -
