PassFinder AP2620 VoIP Gateway , Release 1.00
VoiceFinder AP2620
VoIP Gateway
Installation Guide
Release 1.00
May, 2005
AddPac Technology, Co. Ltd.
2
fl., Jeong-Am Building., 769-12 Yoksam-dong
nd
Kangnam-ku Seoul, Korea 135-080
Phone (82 2)568-3848
Fax (82 2)568-3847
E-mail : info@addpac.com
http://www.addpac.com
47 - 1
AddPac Technology Proprietary & Documentation
Advertisement
Table of Contents
Related Manuals for AddPac VoiceFinder AP2620
Summary of Contents for AddPac VoiceFinder AP2620
-
Page 1: Voip Gateway
VoiceFinder AP2620 VoIP Gateway Installation Guide Release 1.00 May, 2005 AddPac Technology, Co. Ltd. fl., Jeong-Am Building., 769-12 Yoksam-dong Kangnam-ku Seoul, Korea 135-080 Phone (82 2)568-3848 Fax (82 2)568-3847 E-mail : info@addpac.com http://www.addpac.com 47 - 1 AddPac Technology Proprietary & Documentation... -
Page 2: Table Of Contents
Introduction to the VoiceFinder AP2620................7 VoiceFinder AP2620 Gateway Overview................9 VoiceFinder AP2620 Gateway Hardware Specification..........11 VoiceFinder AP2620 Gateway Support Protocol and Service ........12 VoiceFinder AP2620 Gateway Front Part ................. 14 VoiceFinder AP2620 Gateway Rear Part................16 Voice Processing Interface ....................17 Audio Processing Interface .................... - Page 3 [ Figures ] [ Figure 1-1Standard Network Diagram using AP2620 VoIP Gateway ]......7 [ Figure 1-2 The Exterior of VoiceFinder AP2620 VoIP Gateway ] ........8 [ Figure 1-3 VoiceFinder AP2620 Front View ] ..............14 [ Figure 1-4 VoiceFinder AP2620 Rear View ] ..............16 [ Figure 1-5 AP-FXS4 card for AP2620 ] .................18...
- Page 4 <Table 1-2> VoiceFinder AP2620 Support Protocol and Service........12 <Table 1-3> The below table describes the front panel LED of AP2620 VoIP Gateway..14 <Table 1-4> VoiceFinder AP2620 Gateway Rear View Interface Description ....16 <Table 5-1> The transferred signal and Pinout specification ...........45 <Table 5-2>...
-
Page 5: Getting Into The Voicefinder Ap2620 User's Manual
[Composition of the Manual ] The VoiceFinder AP2620 installation guide serves to assist the installation of the AP2620 Gateway. This manual is composed of 4 chapters as the following. Thos experienced with Gateways may refer directly to the chapters as needed. But those less experienced are highly recommended to thoroughly understand the manual before operation of the Gateway. - Page 6 For technical supports, please contact AddPac Technology Co. Ltd. AddPac Technology Co., Ltd Fl. Jeong-Am Building, 769-12 Phone (02) 568-3848 Fax (02) 568-3847 E-mail : info@addpac.com http://www.addpac.com The revision history of VoiceFinder AP2620 Gateway Installation Guide is as follows. Revision No. Date Comments Written by AddPac Version 1.0...
-
Page 7: Chapter 1. Voicefinder Ap2620 Overview
E1, T1 modules. Figure 1-1 : The network diagram using VoiceFinder AP2620 Gateway. [ Figure 1-1Standard Network Diagram using AP2620 VoIP Gateway ] 47 - 7 AddPac Technology Proprietary & Documentation... -
Page 8: Figure 1-2 The Exterior Of Voicefinder Ap2620 Voip Gateway ]

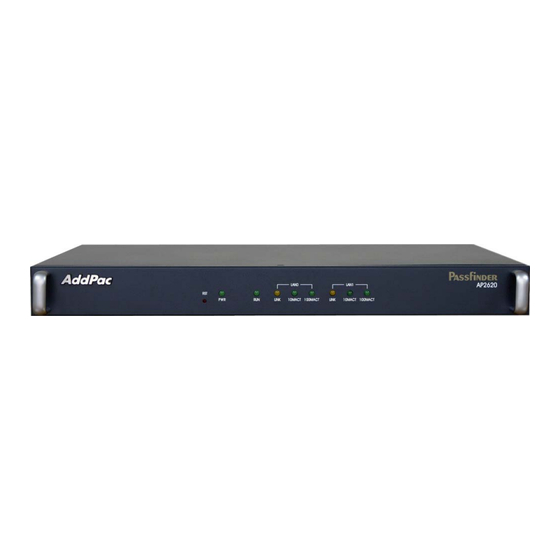

The exterior of AP2620 VoIP Gateway is provided in the following figure. [ Figure 1-2 The Exterior of VoiceFinder AP2620 VoIP Gateway ] Optionally, Packet Filtering and Access List type Firewall is supported, thus preventing intrusion using IP layer and TCP/UDP layer packet source and destination address information. -
Page 9: Voicefinder Ap2620 Gateway Overview
PassFinder AP2620 VoIP Gateway , Release 1.00 VoiceFinder AP2620 Gateway Overview Your Choice of Cost Effective and Highly Adaptable System With the rapid introduction of broadband WAN service, wide range of traditional telephony service is now migrating to a converged network. - Page 10 PassFinder AP2620 VoIP Gateway , Release 1.00 Enhanced QoS and Superior Scalability Services AddPac's VoIP Gateway series have been highly appraised at both Koran and international markets and its lead in enterprise and carrier market reveals the advanced performance and stability.
-
Page 11: Voicefinder Ap2620 Gateway Hardware Specification
PassFinder AP2620 VoIP Gateway , Release 1.00 VoiceFinder AP2620 Gateway Hardware Specification <Table 1-1> VoiceFinder AP2620 Hardware Specification Microprocessor PowerPC RISC Microprocessor Flash Memory 4Mbyte Memory SDRAM Memory 32Mbyte High-Speed SDRAM Boot Memory 512Kbyte Flash Memory Fixed LAN Port Two(2) 10/100Mbps Fast Ethernet... -
Page 12: Voicefinder Ap2620 Gateway Support Protocol And Service
PassFinder AP2620 VoIP Gateway , Release 1.00 VoiceFinder AP2620 Gateway Support Protocol and Service <Table 1-2> VoiceFinder AP2620 Support Protocol and Service Routing Protocol Static and IEEE 802.1Q VLAN Routing, RIP v1/v2, OSPF v2 WAN Protocol Point-to-Point Protocol (PPPoE for ADSL), DHCP, Static IP H.323, SIP, and MGCP Triple Stack Support... - Page 13 Transparent Bridging (IEEE Standard) Function Other Scalability → Spanning Tree Bridging Protocol Support Features → Remote Bridging Support → Concurrent Routing and Bridging Support Easy Command Line Interface (CLI) Network time Protocol(NTP) Support 47 - 13 AddPac Technology Proprietary & Documentation...
-
Page 14: Voicefinder Ap2620 Gateway Front Part
Max. two(2) channels of FXS, FXO, and E&M Voice interfaces, 2 Ethernet, Console ports making possible WAN-to-LAN VoIP service and IP routing service [ Figure 1-3 VoiceFinder AP2620 Front View ] <Table 1-3> The below table describes the front panel LED of AP2620 VoIP Gateway... - Page 15 PassFinder AP2620 VoIP Gateway , Release 1.00 data input status (ACT Green) LAN1 100M LAN1 100M LED : Indicates Ethernet port ⑨ data input status (ACT Green) 47 - 15 AddPac Technology Proprietary & Documentation...
-
Page 16: Voicefinder Ap2620 Gateway Rear Part
AP2620 VoIP Gateway’s rear view adapts external architecture for user friendly cable and power switch working. [ Figure 1-4 VoiceFinder AP2620 Rear View ] <Table 1-4> VoiceFinder AP2620 Gateway Rear View Interface Description Label Description With the provided console cable, connect CONSOLE with the PC for equipment configuration. -
Page 17: Voice Processing Interface
FXS interface voice module FXO interface voice module FXS2O2 interface voice module E&M interface voice module Digital E1/T1 interface voice module 47 - 17 AddPac Technology Proprietary & Documentation... -
Page 18: Figure 1-5 Ap-Fxs4 Card For Ap2620 ]
Public Switched Telephone Network (PSTN) or ordinary telephones. [ Figure 1-6 AP-FXO4 card for AP2620 ] 4-Port-FXO2S2 : 2-Port FXO and 2-Port FXS Voice Interface Module 47 - 18 AddPac Technology Proprietary & Documentation... -
Page 19: Figure 1-7 Ap-Fxs2O2 For Ap2620 ]
Trunk line of PBX. [ Figure 1-8 AP-E&M4 card for AP2620 ] Digital E1 Voice Interface Module VoiceFinder AP2620 VoIP Gateway support digital E1 voice processing module for PBX interworking. Digital E1 Interface module supports ISDN-PRI, MFC-R2, DTMF and accommodate maximum 30 47 - 19 AddPac Technology Proprietary &... -
Page 20: Figure 1-9 Apv1-1E1 Card For Ap2620 ]
[ Figure 1-9 APV1-1E1 card for AP2620 ] Digital T1 Voice Interface Module VoiceFinder AP2620 VoIP Gateway supports digital T1 voice processing module for PBX interworking. Digital T1 Interface module supports ISDN-PRI, MFC-R2, DTMF and accommodate maximum 23 voice channels. -
Page 21: Audio Processing Interface
Audio interface, FXS interface voice processing module Audio interface, FXO interface voice processing module Audio interface, FXS interface, FXO interface voice processing module MP3 interface voice processing module HQA Audio Module Audio&Video Encoder/Decoder Module 47 - 21 AddPac Technology Proprietary & Documentation... -
Page 22: Figure 1-11 Ap-Audio2 Card For Ap2620 ]
PassFinder AP2620 VoIP Gateway , Release 1.00 2-Channel Audio Broadcasting Module VoiceFinder AP2620 VoIP Gateway supports standard Audio processing module. AP-Audio2 standard broadcasting module supports 2-channel Audio In/Out using high performance DSP for VoIP broadcasting service. [ Figure 1-11 AP-AUDIO2 card for AP2620 ]... -
Page 23: Figure 1-13 Ap-Aud1O3 Card For Ap2620 ]
PassFinder AP2620 VoIP Gateway , Release 1.00 1-Channel Audio, 3-Port FXO Module VoiceFinder AP2620 VoIP Gateway supports high performance audio/voice integrated module. AP-AUD1S3 broadcasting module supports 1-channel Audio In/Out and 3-FXO ports for VoIP broadcasting service and VoIP call. [ Figure 1-13 AP-AUD1O3 card for AP2620 ]... -
Page 24: Figure 1-15 Ap-Mp3 Card For Ap2620 ]
PassFinder AP2620 VoIP Gateway , Release 1.00 VoiceFinder AP2620 VoIP Gateway supports high performance MP3 broadcasting module for high quality music broadcasting service. AP-MP3 broadcasting module features 1-channel MP3 In/Out for high quality VoIP broadcasting service. User can use MIC and Line- in as Input channels and Headphone and Line-out as output channels. -
Page 25: Figure 1-17 Ap-Av500 Card For Ap2620 ]
PassFinder AP2620 VoIP Gateway , Release 1.00 1-Channel Audio&Video Encoder/Decoder Module VoiceFinder AP2620 VoIP Gateway supports high performance video & audio encoding/decoding interface module. AP-AV500 broadcasting module provides high quality AV broadcasting service using 1-channel Audio, Video In/Out. User can use MIC/Line-in as audio input channels, DVD/TV/Camera as video input channels. -
Page 26: Chapter 2. Before Voicefinder Ap2620 Installation
In case of the occurrence of an electrical accident, operate at a position where immediate shut-off of power supply is possible. Switch the power off when installing or taking the cover off the equipment. 47 - 26 AddPac Technology Proprietary & Documentation... - Page 27 Avoid operating the equipment alone at a potentially dangerous environment. Do not assume the power is switched off, but always confirm the power status. extremely cautious when operating humid environment or with an uncovered power extension cable. 47 - 27 AddPac Technology Proprietary & Documentation...
-
Page 28: General Requirements
If no waist tap is available, earthing by holding a metal part of the Chassis will help prevent static electricity. General Requirements The VoiceFinder AP2620 is ready for use where electronic products are used. However, a location with the following conditions are recommended for maximum performance. -
Page 29: Prerequisites For Network Connection
Observe EIA standards and distance limitations when installing the Gateway The following section describes the synchronous serial cable, Ethernet Cable and the Console Cable VoiceFinder AP2620 supports. Preparation for Installation Unless ordered in advance, the tools and certain cables are not provided in the package. - Page 30 AP2620 VoIP Gateway has RJ-45 type RS-232C Female DCE connector interface on the front panel. This port is used for Initial Configuration, monitoring and debugging of the Gateway. Make sure to use specified cable and connectors to use the port. 47 - 30 AddPac Technology Proprietary & Documentation...
-
Page 31: Unpacking
Item Contents Q’ty VoiceFinder AP2620 Gateway Main Body LAN Cable (For RJ45 to RJ45) Console Port Cable (For RJ45 to DB9) AC Power Cable (220V) [ Figure 2-1 VoiceFinder AP2620 Package ] 47 - 31 AddPac Technology Proprietary & Documentation... - Page 32 PassFinder AP2620 VoIP Gateway , Release 1.00 47 - 32 AddPac Technology Proprietary & Documentation...
-
Page 33: Chapter 3. Voicefinder Ap2620 Installation
If using a PC as the console terminal, connect to the Ethernet port of the PC. [ Figure 3-1 Connection between AP2620 Console Port and Terminal PC ] 47 - 33 AddPac Technology Proprietary & Documentation... -
Page 34: Ethernet Interface Connection
Below figure shows a network config with LAN0 for WAN, LAN1 for PC. Failure : WAN Cable is connected to console [ Figure 3-2 Connection between AP2620 LAN0/LAN1 and WAN equipment/PC ] 47 - 34 AddPac Technology Proprietary & Documentation... -
Page 35: Voice Interface Connection
FXO is connected to PBX extension. Because E&M port has a different PIN array, please check the cable specification at 4 chapter Appendix. [ Figure 3-3 Connection for VoiceFinder AP2620 Voice Interfaces ] 47 - 35 AddPac Technology Proprietary & Documentation... -
Page 36: E1 Interface Connection
Usually E1 VoIP module interworks with PBX through digital E1 line. APVI-1E1 VoIP Digital E1 Interface module supports ISDN-PRI, MFC- R2, DTMF signaling and accommodate maximum 30 voice channels. [ Figure 3-4 Connection for VoiceFinder AP2620 E1 Interfaces ] 47 - 36 AddPac Technology Proprietary & Documentation... -
Page 37: Connection For Ap2620 Interfaces
PassFinder AP2620 VoIP Gateway , Release 1.00 Connection for AP2620 Interfaces The below figure is an example of VoiceFinder AP2620 Gateway Interface connection. [ Figure 3-5 An Example of the Interface Connection ] 47 - 37 AddPac Technology Proprietary & Documentation... -
Page 38: Chapter 4. Power Supply And Check Operational Status
After connecting all the interfaces, supply the power to VoiceFinder AP2620 Gateway. Supply the power after connecting the adapter to VoiceFinder AP2620 Gateway. Do not connect the adapter to the power supply before connecting it to the gateway. -
Page 39: Use Console Terminal With Hyperterminal
To use a PC as a Console terminal, the communication emulator application should be installed. When the PC is MS-Windows line, use the HyperTerminal Application. [ Figure 4-1 MS-Windows Terminal Emulator - HyperTerminal ] 47 - 39 AddPac Technology Proprietary & Documentation... -
Page 40: Figure 4-2 Assign A Name For The New Connection In Hyperterminal ]
PassFinder AP2620 VoIP Gateway , Release 1.00 Assign a name to the connection. “AddPac” is used at the below example [ Figure 4-2 Assign a name for the new connection in HyperTerminal ] 47 - 40 AddPac Technology Proprietary & Documentation... -
Page 41: Figure 4-3 Select The Interface For Console Cable ]
Typically, the Console cable is connected to the RS-232C 9Pin Serial Port, so select the right port according to the user environment. “COM1” is selected at the below example. [ Figure 4-3 Select the interface for Console cable ] 47 - 41 AddPac Technology Proprietary & Documentation... -
Page 42: Figure 4-4 Com1 Port Configuration ]
PassFinder AP2620 VoIP Gateway , Release 1.00 Set the port information. The below examples is based on “COM1” port. [ Figure 4-4 COM1 Port Configuration ] 47 - 42 AddPac Technology Proprietary & Documentation... - Page 43 HyperTerminal. This message shows the routing S/W version, Gateway H/W test result, memory and etc. System Boot Loader, Version 2.2.4/WD [264MHz] Copyright (c) by AddPac Technology Co., Ltd. Since 1999. System Bootstrap, Version 1.2 Decompressing the image: ###########################################################...
-
Page 44: Figure 4-5 The Initial Message Of Voicefinder Ap2620 Gateway ]
AP2620 - Login : root at Console on Fri May 20 12:31:40 2005 AP2620# [ Figure 4-5 The initial message of VoiceFinder AP2620 Gateway ] With the log-in message, input the user name “root” and the password “router”. After the log-in process, the prompt “AP2620#” is displayed on the console terminal. -
Page 45: Chapter 5. Appendix
Chapter 5. Cable Specification This Appendix provides information about the Pinout specifications of the following cables used with VoiceFinder AP2620 Gateway. Console Port Signal and Pinout (RJ-45 to DB9) Ethernet Cable Assemble (RJ-45 to RJ-45) Pinout [ Console Port Signal & Pinout ] In order to connect the gateway console port with the Terminal Emulating PC, the RJ-45 to DB9 (Female DTE Connector) cable is used. -
Page 46: Table 5-2> Signal And Pinout Of Direct Ethernet Cable
Rx - ← 1. These specifications are for serial cables connecting the gateway and the HUB. 2. For gateway to gateway or gateway to PC connection, the Cross Cable must be used. 47 - 46 AddPac Technology Proprietary & Documentation... -
Page 47: Figure 5-2 Digital E1/T1 Rj45 Pinout ]
PassFinder AP2620 VoIP Gateway , Release 1.00 [E1/T1 Cable (RJ-45 to PBX) Pinout] Addpac E1/T1 can be connected with RJ45 cable. RJ45 pin array is as below, PBX’s RX is assigned for RJ45 pin 1 and 2, TX is for pin 4 and 5.
