Page 1: Gsm Gateway

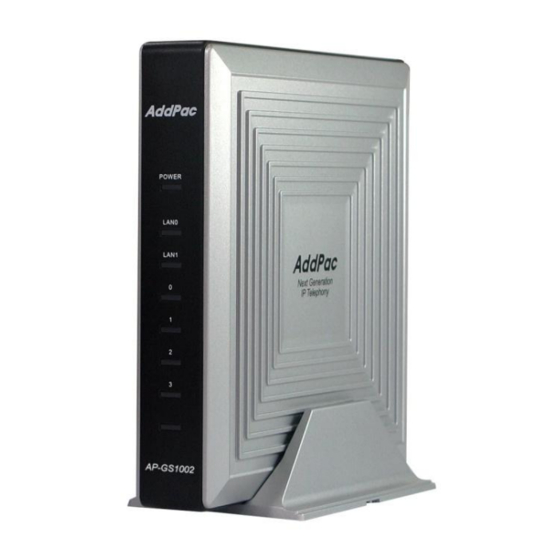

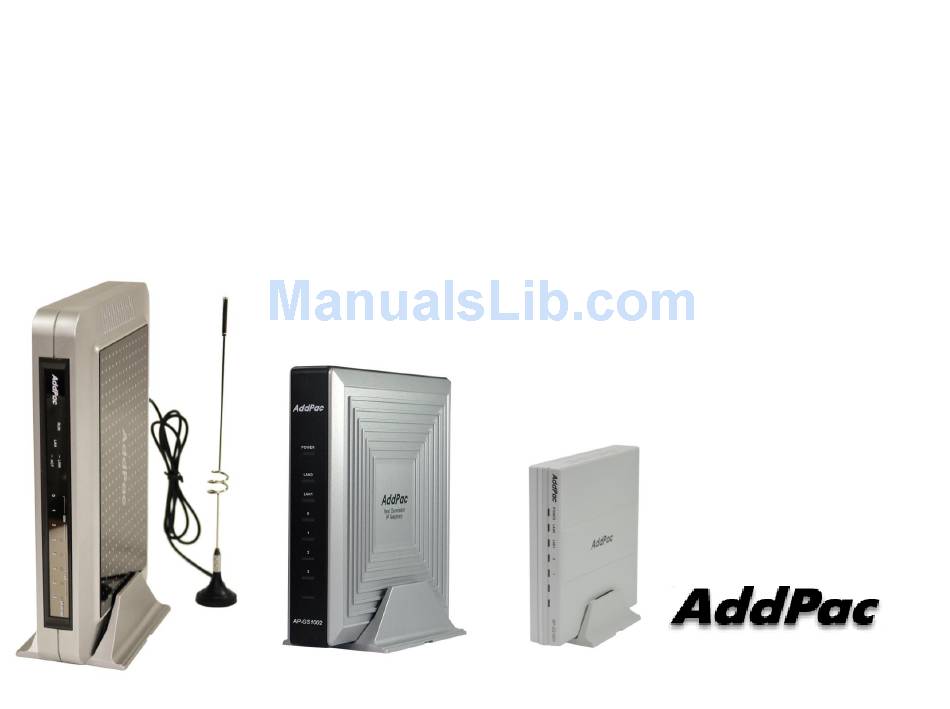

GSM Gateway High Performance GSM Gateway Solution WEB Setup Guide AP-GS1001 / AP-GS1002 / AP-GS1004 www.addpac.com... -
Page 2: Table Of Contents
Contents 1. WEB Connection 2. Network Setup 3. Language 4. GSM Setup 5. VoIP Setup 6. Callback Service 7. LCR 8. SMS 9. Advanced Service 10. Monitoring www.addpac.com... -
Page 3: Web Connection
WEB Connection 1. Web Connection via Console Port 2. Web Connection via LAN 1 Port www.addpac.com... -
Page 4: Serial Port
Connect to the IP address via web after saving Baud rate 9600 Console No parity Port * Following information is not applicable to AP-GS1001 1 stop bit No flow control login ID/Password : root/router GSM> enable => Enter the enable mode GSM# configure terminal =>... - Page 5 WEB Connection 2. Connection Web via LAN 1 Port (AP-GS1001, AP-GS1002) LAN 1 Default IP IP Address : 192.168.10.1 Cross Cable Subnet mask : 255.255.255.0 •Following information is not applicable to AP-GS1004 LAN 1 It is the way to connect to GSM G/W via LAN 1 port The factory default of LAN 1 port - IP Address : 192.168.10.1...
- Page 6 WEB Connection 1. The screen of Web connection • The Shown log-in screen is connection to Web page. Please enter the below log-in information ID : root Password : router www.addpac.com...
-
Page 7: Network Setup
Network Setup 1. WAN Setup -1 ① Click ① WAN Setup -Hostname : Enter the device name of GSM G/W -Static IP -PPPoE(ADSL) -DHCP * Please make sure to press the apply button for saving www.addpac.com... -
Page 8: Wan Setup
- Source : Setup the interface to connect with PPTP server. - Destination : Enter the Tunnel End Point Address regard of Source. - Service : Decide whether to apply Ethernet interface regard of Voice and Data communication. * Please make sure to press the apply button for saving www.addpac.com... -
Page 9: Lan Setup
Network Setup (LAN Setup) 2. LAN Setup LAN Setup - IP Share (IP Connect) - Static : 1. Setup LAN 1 Port Static IP 2. Setup DHCP Server * Please make sure to press the apply button for saving www.addpac.com... -
Page 10: Gsm Setup
GSM Setup 1. GSM Dial Plan / Prefix 2. GSM Extension 3. FXS Extension 4. Hotline www.addpac.com... - Page 11 1 Stage : Making call after hearing the first dial-tone. Setting Prefix field is required 2 Stage : Making call after the second dial-tone. Setting 2nd Prefix field is required. In case of 2 stage using, the Prefix can be used a number for hearing the Second dial-tone www.addpac.com...
- Page 12 (ex : Prefix – T 1 stage method – Forward call immediately Prefix – 9, 2 Prefix – T Whe press 9, it is the method to press dial after hearing 2 dial-tone PlanIndex : Set index applied for Plan Table SlotPort : Set GSM port www.addpac.com...
- Page 13 - Port : Select port to set up ex) Destination Pattern : 025683848 - Numbers : Register SIM number or mobile phone number Digits to Insert : 82 to use callback service Number of Digits to Delete : 2 ------------------------------------ Result : 825683848 www.addpac.com...
- Page 14 If there is the same number at two ports, a port is selected by this priority - Hunt Stop : It is a function of forward a call to other party in case of unavailable receiving call. Activation of this function is recommended www.addpac.com...
- Page 15 ① Set the number to be used for FXS 0/2 port (ex. 2000) ② Set the number to be used for FXS 0/3 port (ex. 3000) • Setting number on each FXS port is required, so that Dial-tone can be heard on phone. www.addpac.com...
- Page 16 GSM Setup > FXS Extension AddPac Digit Structure ※Digit Structure※ - 9T : All number started with 9 as the first digit - 4.. : Three digit number started with 4 as the first digit - [2-9]T : All number started with 2 to 9 as the first digit...
- Page 17 - Hot Line Number : Forward call to entered number It connects to the number of GSM port in case of receiving call (Direct Incoming call) - Digit Input Timeout : Time to make call to the Hot Line Number when user doesn’t any action after off-hook www.addpac.com...
-
Page 18: Voip Setup
VoIP Setup 1. VoIP Setup - Server SIP - Server H.323 2. DTMF/CODEC 3. VoIP Dial Plan 4. Static Route www.addpac.com... - Page 19 VoIP Setup (Protocol) 1. Protocol ( SIP or H.323 ) ① Protocol - Setup SIP or H.323 Protocol. www.addpac.com...
- Page 20 VoIP Setup 1. SIP Setup www.addpac.com...
- Page 21 -Secondary SIP Server : Enter IP address of Secondary SIP server. The secondary server is activated when Primary SIP Server is not available -Local Domain name : Enter local domain when it is required on server authentication -Default setting is recommended for other field www.addpac.com...
- Page 22 -Display Name : Use it when virtual number -Reg : Checking this field is required to get authentication from SIP Server -Hunt Stop : Forward call to other party when port is unavailable. It is recommended to use it. www.addpac.com...
- Page 23 VoIP Setup (SIP) 2. SIP Registration -2 (Example) ① Click ① Please click the apply button after enter information of SIP Registration - You may check status of registration with reload web page using F5 key www.addpac.com...
- Page 24 VoIP Setup 2. H.323 Setup www.addpac.com...
- Page 25 -Use H.323 Server : Select using H.323 Server. Please click “Yes” to use SIP server -Primary SIP server : Enter IP address of Primary SIP server -Secondary SIP Server : Enter IP address of Secondary SIP server. The secondary server is activated when Primary SIP Server is not available www.addpac.com...
- Page 26 ① H.323 Registration Configuration -Number : Enter H.323 authentication number -Hunt Stop : Forward call to other party when port is unavailable. It is recommended to use it. -Reg : Checking this field is required to get authentication from SIP Server www.addpac.com...
- Page 27 VoIP Setup 3. VoIP Setup www.addpac.com...
- Page 28 - Number of Digit to Delete : Number of digit to delete - Digit Pattern : Number to apply for conversion ② Prefix Table - Prefix : Number to make VoIP call - Plan Index : Make the same number with Plan table www.addpac.com...
- Page 29 VoIP Setup 1. VoIP Dial Plan -2 (Example) It must be the same with PlanIndex Number www.addpac.com...
-
Page 30: Static Route
-Remote Site IP : Enter IP address of other party device -Prefix : Enter number of other party -Insert Digit : Enter number of digit to add -Delete Digit : Enter number of digit to delete -Name of Remote Site : Enter name of other party’ www.addpac.com... - Page 31 VoIP Setup 2. Static Route -2 (Example) Click * Please press the apply button to save www.addpac.com...
- Page 32 VoIP Setup 3. DTMF/CODEC ①Video Codec -Select voice codec to be used ② DTMF Relay mode ① -Select DTMF relay mode. (Default : Out-of-band Signal) * Please press the apply button to save ② Click www.addpac.com...
-
Page 33: Callback Service
Callback Service 1. WEB Callback Service 2. GSM Callback Service www.addpac.com... - Page 34 Callback Service WEB Callback Service IP Network (WAN) WEB Callback Service : GSM G/W makes call between receiver and sender remotely via Web page. WEB Callback calling number white list and Source number(call sender) must be the same www.addpac.com...
- Page 35 Callback Service GSM Callback Service Call back 2000 Destination number(2000) Source number(1000) White list GSM Callback Service : The mobile user listed on the Callback white list can receive call back after disconnect the call by GSM G/W www.addpac.com...
- Page 36 - Source Number : Enter number of call maker. It must be the same as Dialpattern number - Apply : Connect call between sender and receiver. Waiting tone is heard until call connected ※ You must need CID Enable to use Callback service. www.addpac.com...
- Page 37 Callback Service > WEB Callback 1. WEB Callback Service -2 (Example) DialPattern must be the same as Source Number Click Check status of calling with executing WEB Callback www.addpac.com...
- Page 38 - Index : Sequential Index number. Entering the existed number updates the same field. - DialPattern : Enter mobile phone number to use callback service ② Callback : - White List Group : Enter group number of port to be used www.addpac.com...
- Page 39 Callback Service > GSM Callback 2. GSM Callback Service -1 (Example) Register number to use Callback Service Enter group number of port to be used Please press the apply button and check pop-up screen Click www.addpac.com...
- Page 40 Advanced 1. Black / White List 2. LCR 3. SMS www.addpac.com...
- Page 41 - Index : Sequential Index number. Entering the existed number updates the same field. - DialPattern : Set number to reject ② White List : Allow call from specific number - Index : Sequential Index number. Entering the existed number updates the same field. - DialPattern : Set number to allow www.addpac.com...
- Page 42 Black List : Reject call from specific number White List : Allow call from specific number ※ Please remind that all of call except the number listed on White List is not available when white list function is activated www.addpac.com...
-
Page 43: Lcr
: The function to allow user to make call on GSM networks at specific time GSM LCR Time Tariff : The function to check the available time and used time. Set Restore Call limit GSM LCR Simulator : The function to test call function to virtual number via WEB GUI www.addpac.com... - Page 44 - Days : Set day to apply LCR (weekdays / weekend / Monday / Tuesday / Wednesday / Thursday / Friday / Saturday / Sunday) - Start Time : Set time to start (hh:mm) - End Time : Set time to end (hh:mm) www.addpac.com...
- Page 45 LCR(Least Cost Routing) 2. Time Interval-2(Example) Description Group 0 : Available time is Monday to Friday, 9AM to 6PM Description Group 1 : Available time is Saturday and Sunday, 10AM to 1PM www.addpac.com...
- Page 46 - Restore Call Limit : Set point to restore set limitation - Accounting Period : Tim period to charge (sec) - Free Quota : Set toll-free time (min) ② Tariff Port : Apply information on Tariff Group to specific port www.addpac.com...
- Page 47 Accounting Period - First : Initial period to charge - Others : Second period to charge after the initial period Free Quota - Voice : Toll-free call time - SMS : Toll-free SMS Tariff Group : Set group to port www.addpac.com...
- Page 48 ① LCR Test : The function to make call to virtual number for testing - Caller : Enter number of sender - Called Number : Enter number of receiver - GSM Networks status can be monitored to make virtual call www.addpac.com...
- Page 49 LCR(Least Cost Routing) 4. LCR Test -2 (Example) Problem can be monitored to make virtual call The above message is shown that failure occurred by time interval www.addpac.com...
-
Page 50: Sms
5. SMS -1 ① Received messages will be saved. ② Sent messages will be saved. ※ The number of message can be stored in InBox, Sent Box and Fail Box is 17 www.addpac.com... - Page 51 5. SMS -2 ① You may send the messages. ② Failed messages will be saved. ※ SMS Support Language : Korean, English, Russian, Spanish and Portuguese www.addpac.com...
-
Page 52: Advanced Service
Advanced Service 1. Gain & CID 2. GSM Pins 3. GSM Band 4. BTS www.addpac.com... - Page 53 - Input Gain : Please adjust input gain when sending call is too loud or too low - Output Gain : Please adjust output gain when receiving call is too loud or too low - Caller-ID : It is a function to display number of callers * Please click the apply button after set up www.addpac.com...
- Page 54 Advanced Service 2. GSM PINs ① Click www.addpac.com...
- Page 55 Advanced Service 3. GSM USSD ① Click www.addpac.com...
-
Page 56: Gsm Band
Advanced Service 4. GSM Band GSM Band Selection : Setting for bandwidth of GSM Networks - Auto (Default) - 900Mhz + DCS 1800Mhz - 900Mhz + PCS 1900Mhz - 850Mhz + DCS 1800Mhz - 850Mhz + PCS 1900Mhz www.addpac.com... - Page 57 - Auto (Default) : The most highest power cell will be selected - BCCH : Choose specific cell by entering BCCH value manually - RSSI : Choose cell which has specific RSSI level Cell will be selected in accordance with set interval www.addpac.com...
- Page 58 Advanced Service 5. GSM BTS Info BTS Cell Information : The information of serve cell and neighbor cell can be shown www.addpac.com...
- Page 59 Advanced Service(Etc) 1. NAT Static Table 2. NTP 3. File Browser 4. FAX 5. Service 6. Filtering 7. Security 8. Language www.addpac.com...
- Page 60 - You may setup IP Protocol (TCP, UDP). You may send the desirable data information (comes through Global Port) by changing (Local Address, Local Port) * Example - Global port : 5060 - Local Address : 10.1.1.1 - Local Port : 5070 --> Forward by changing the information which comes through 5060 port to 10.1.1.1, 5070 port. www.addpac.com...
- Page 61 - Click the apply button for NTP activation - Primary Server : Input IP or domain name of NTP Server - Interval : Interval to request and receive data from NTP server * Please click the apply button after set up www.addpac.com...
- Page 62 You may download or upload GSM Gateway image file. - Download : Click on image file then download will be processed. - Upload : Click browse to search image file. Click on upload button then image file upload will be processed. www.addpac.com...
- Page 63 - Bypass : FAX signal is being sent by RTP. FAX Rate setting is not required - Fax Rate : Setting FAX transmit rate. Default is 9600bps and the range is from 2400bps to 14400bps * Please click the apply button after set up www.addpac.com...
- Page 64 - Call Service : Call-Transfer Set Activation and Call-Hold function (Hook-Flash – Activate , Not-assigned – Inactivate) - Transfer Mode : GSM G/W supports blind mode and attended mode. To use this function, call transfer mode must be activated. * Please click the apply button after set up www.addpac.com...
- Page 65 - HTTP Filter : The only device with the IP address authorized by administrator can access WEB connection - Telnet Filter : The only device with the IP address authorized by administrator can access Telnet connection * Please click the apply button after set up www.addpac.com...
- Page 66 - Allow digit Length(IP to PSTN) : The only receiving call within range of set number is available to make call - SIP Shutdown : Set using SIP Signaling. It must be enabled with SIP communication * Please click the apply button after set up www.addpac.com...
- Page 67 Advanced Service (Etc) 8. Web Connection via Console Port ① You may choose three different languages. - Korea - English - Portugal * Language setup will be applied immediately once you click on apply. www.addpac.com...
-
Page 68: Monitoring
Monitoring 1. Call Status 2. System Status 3. GSM Status 4. Call Log / System Log 5. Ping www.addpac.com... -
Page 69: Call Status
Monitoring 1. Call Status ① ② Call Status : The status of GSM G/W port and call can be monitored in real-time ① Port Status : Monitoring GSM G/W port ② Call Status : Monitoring call status www.addpac.com... -
Page 70: System Status
Monitoring 2. System Status System Status : The system status of GSM G/W can be monitored www.addpac.com... -
Page 71: Gsm Status
Monitoring 3. GSM Status GSM Status : GSM Networks status, Usage can be monitored www.addpac.com... -
Page 72: Call Log / System Log
※ Call history will be clear with rebooting System Log : Monitoring GSM G/W System log Default setting is off. System log can be monitored by telnet connection and entering CLI command is required (Please contact to AddPac technical support team for more detail) www.addpac.com... -
Page 73: Ping
Monitoring 5. Ping Ping : Network status can be checked by pinging www.addpac.com... - Page 74 Thank you www.addpac.com...
