Appendix B. VoIP(Voice over IP) Config. Example

E0.0
10.10.10.1
Phone A
Dial Peer 101 POTS
Voice PORT 0/1
Destination 101
AP200-A configuration
step 1) set interface
Gateway(config)# in s0
Gateway(config-serial0)# ip address 100.100.100.1 255.255.255.252
Gateway(config-serial0)# enc hdlc
Gateway(config-serial0)# interface e0.0
Gateway(config-ether0.0)# ip address 10.10.10.1 255.255.255.0
Gateway(config-ether0.0)# exit
Step 2) set default routing
Gateway(config)# route 0 0 se 0

AddPac Technology Co.,Ltd.

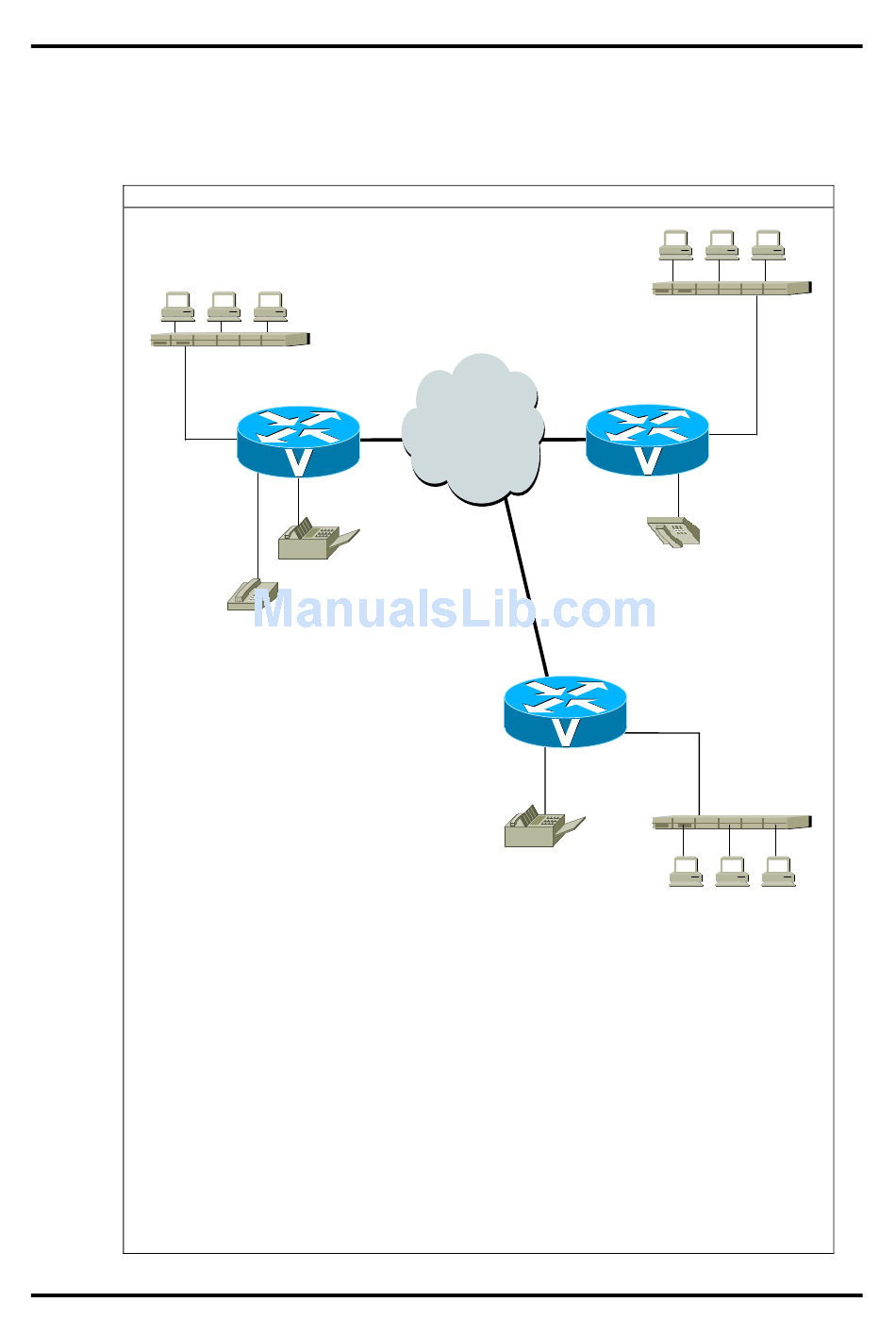

Configuration1- FXS-to-FXS Connection example
AP200-A
S0
FXS
Fax A
Dial Peer 100 POTS
Voice PORT 0/0
Destination 100
AP200-B
S0
IP
Network
S0
AP200-C
FXS
Fax C
Dial Peer 300 POTS
Voice PORT 0/0
Destination 300
LAN HUB
E0.0
20.20.20.1
FXS
Phone B
Dial Peer 200 POTS
Voice PORT 0/0
Destination 200
E0.0
30.30.30.1
