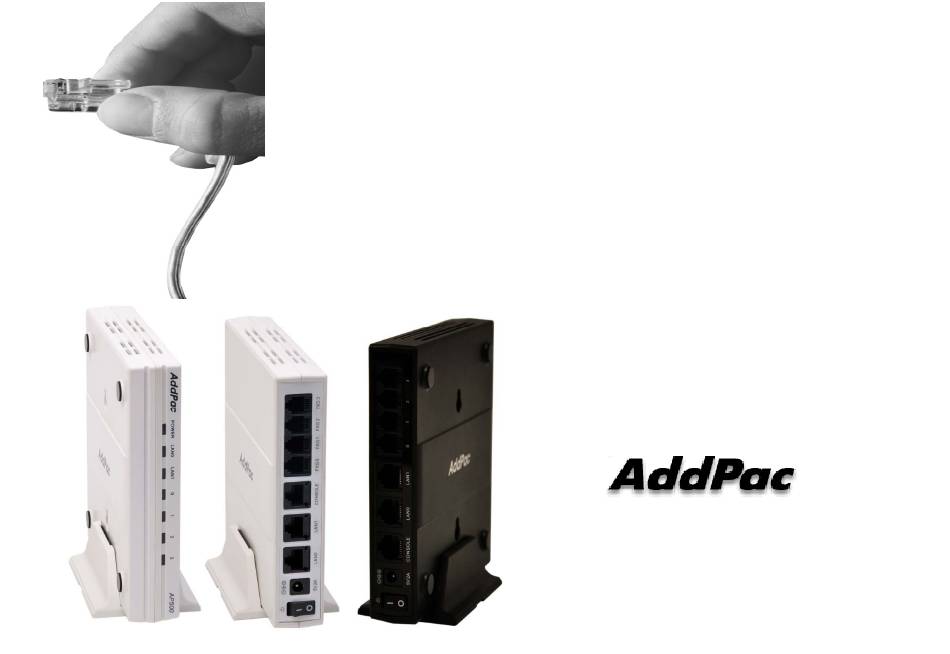

- Page 1 AP500 4-Port FXS VoIP Gateway High Performance VoIP Gateway Solution High Performance VoIP Gateway Solution Product Overview AddPac Technology Sales and Marketing www.addpac.com...
- Page 2 Contents AP500 4-Port FXS Analog VoIP Gateway • Product Overview • Hardware Specification • APOS Technology • VoIP (Voice over IP) service • Advanced QoS Features • Network Protocols • Network Management • Security Management • Application Service • Ordering Information...
-
Page 3: Product Overview
Product Overview AP500 4-Port FXS Analog VoIP Gateway • SIP VoIP Signaling Support (H.323 Option) SIP V IP Si t (H 323 O ti • 4-Port FXS Analog Interface • High Performance RISC & Programmable DSP Architecture • Two(2) 10/100Mbps Fast Ethernet (IP Share ,etc) •... -
Page 4: Product Highlights
Product Highlights AP500 4-Port FXS Analog VoIP Gateway State-of-art Signaling SIP VoIP Stack Light and Smart Gateway Management Compact Design Support High Performance RISC CPU Excellent Voice Quality + Programmable DSP G.729/G.723/G726/G711 G.729/G.723/G726/G711 Broadband IP Networking 4-Port FXS VoIP With dual 10/100Mbps... - Page 5 APOS Technology AP500 4-Port FXS Analog VoIP Gateway Multimedia Conferencing, and more… Our Customer Application Video Audio Voice Data APOS Internetworking Technology APOS Internetworking Technology AddPac Hardware Platform Broadband IP Networking • APOS : AddPac Internetworking Operating System APOS : AddPac Internetworking Operating System •...
- Page 6 RISC Hardware Specification High-end AP500 4-Port FXS Analog VoIP Gateway • RISC Microprocessor Computing Power • 4-Port FXS Analog VoIP Gateway • Network Interface -Two(2) 10/100Mbps Fast Ethernet (RJ45) • One(1) RS232C Console Interface for CLI (RJ45) • Run LED, LAN LED, Port LEDs Run LED, LAN LED, Port LEDs •...
- Page 7 Hardware Specification AP500 4-Port FXS Analog VoIP Gateway Hardware Specifications Network interface Configurations AP500 VoIP Gateway Basic Specifications Voice Interface Four(4) FXS Analog Interface Ethernet Interface 2-Ports 10/100Mbps Ethernet Interface(RJ-45) Analog Flash Memory Phone 4Mbyte High-speed Flash Memory 4 FXS Ports...
- Page 8 VoIP (Voice over IP) Service AP500 4-Port FXS Analog VoIP Gateway • SIP VoIP Signaling Stack SIP V IP Si • H.323 (Option) • SIP IP Network IP Network – IETF RFC3261 or RFC2543 SIP Standard IETF RFC3261 RFC2543 SIP St (WAN) –...
- Page 9 VoIP (Voice over IP) Service VoIP (Voice over IP) Service AP500 4-Port FXS Analog VoIP Gateway • Voice Codec Voice Codec • FAX – G.711 A-Law, G.711 U-Law – Fax relay mode supporting T.38, inband-T.38, bypass mode – G.726 r16, G.726 r32 –...
- Page 10 VoIP (Voice over IP) Service VoIP (Voice over IP) Service AP500 4-Port FXS Analog VoIP Gateway • VoIP Call Controls V IP C ll C • VoIP Call Controls (cont.) V IP C ll C t l ( – Hot line connection function with PLAR (Private Line –...
- Page 11 Advanced QoS Features Advanced QoS Features AP500 4-Port FXS Analog VoIP Gateway • Enhances Transmit Voice QoS Features Q S F • Enhances Receive Voice QoS Features Q S F – Voice Traffic Priority Queuing – Dynamic Jitter Buffer Management –...
-
Page 12: Network Protocols
Network Protocols Network Protocols AP500 4-Port FXS Analog VoIP Gateway Basic Network Protocols ARP, IPv4, TCP, UDP, ICMP, SCTP, IGMP, MLD IP Network Routing Protocol (WAN) Internet - IPv4 : Static Service Protocol FTP, Telnet, TFTP, DHCP Server/Relay, SNMP Server... -
Page 13: Network Management
AP500 4-Port FXS Analog VoIP Gateway • SNMP • Interoperable with AP-VPMS Service – Standard Simple Network Management Protocol( SNMP) – AddPac VoIP Plug & Play Management System (AP-VPMS) Agent support – MIB v1 and v2 Support • Web-based Management –... -
Page 14: Security Management
Security Management Security Management AP500 4-Port FXS Analog VoIP Gateway • IP packet filtering • IP access list • User authentication function – Password Authentication Protocol (PAP) – Password Authentication Protocol (PAP) – Challenge Handshake Authentication Protocol (CHAP) IP Network •... -
Page 15: Standard Application
Standard Application AP500 4-Port FXS Analog VoIP Gateway New York Seoul Media Gateway Gate Keeper IP Network PSTN PSTN PSTN PSTN Proxy Server Proxy Server Elementary Elementary (WAN) Management System Billing Server Ethernet 0 Ethernet 0 AP500 VoIP AP500 VoIP... - Page 16 – 2-ports 10/100Mbps Fast Ethernet(RJ45) – 1-Port RS232C Console Interface(RJ45) – Including Network Cable & Ext. Power Supply, etc. • Built-in APOS Internetworking Software for AP500 • Including 1 Year Hardware Warranty • Product Documents – Install and Operation Guide (PDF) •...
- Page 17 VoIP Gateway Series VoIP Gateway Series Thank you! AddPac Technology Co., Ltd. Sales and Marketing Sales and Marketing Phone +82.2.568.3848 (KOREA) FAX +82 2 568 3847 (KOREA) FAX +82.2.568.3847 (KOREA) E-mail sales@addpac.com www.addpac.com...
