AddPac VoiceFinder AP-MG3000N Installation Manual

Media gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VoiceFinder AP-MG3000N Media Gateway , Release 1.00
VoiceFinder AP-MG3000N
Media Gateway

Installation Guide

Release 1.00
May, 2005
AddPac Technology, Co. Ltd.
2
fl., Jeong-Am Building., 769-12 Yoksam-dong
nd
Kangnam-ku Seoul, Korea 135-080
Phone (82 2)568-3848
Fax (82 2)568-3847
E-mail : info@addpac.com
http://www.addpac.com
36 - 1
AddPac Technology Proprietary & Documentation

Advertisement

Table of Contents
loading

Related Manuals for AddPac VoiceFinder AP-MG3000N

Summary of Contents for AddPac VoiceFinder AP-MG3000N

  • Page 1: Installation Guide

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 VoiceFinder AP-MG3000N Media Gateway Installation Guide Release 1.00 May, 2005 AddPac Technology, Co. Ltd. fl., Jeong-Am Building., 769-12 Yoksam-dong Kangnam-ku Seoul, Korea 135-080 Phone (82 2)568-3848 Fax (82 2)568-3847 E-mail : info@addpac.com http://www.addpac.com 36 - 1 AddPac Technology Proprietary &...

  • Page 2: Table Of Contents

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 [ Contents ] Getting into the VoiceFinder AP-MG3000N User’s Manual ..........3 Chapter 1. VoiceFinder AP-MG3000N Overview ........3 Introduction to the VoiceFinder AP-MG3000N ..............3 VoiceFinder AP-MG3000N Gateway Overview ..............3 VoiceFinder AP-MG3000N Gateway Hardware Specification ........3 VoiceFinder AP-MG3000N Support Protocol and Service..........
  • Page 3 ]........................3 [ Figure 3-3 VoiceFinder AP-MG3000N E1 Interface Connection ] ........3 [ Figure 3-4 An Example of connection of the VoiceFinder AP-MG3000N Interfaces ] 3 [ Figure 4-1 MS-Windows Terminal Emulator - HyperTerminal ] ..........3 [ Figure 4-2 Assign a name for the new connection in HyperTerminal ] ......3 [ Figure 4-3 Select the interface for Console cable ] ............3...
  • Page 4 <Table 1-3> The below table describes the front panel LED of VoiceFinder AP- MG3000N Gateway ......................3 <Table 1-4> VoiceFinder AP-MG3000N Gateway Rear View Interface Description ..3 <Table 5-1> The transferred signal and Pinout specification ..........3 <Table 5-2> Signal and Pinout of Direct Ethernet Cable ............3 36 - 4 AddPac Technology Proprietary &...

  • Page 5: Getting Into The Voicefinder Ap-Mg3000N User's Manual

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 Getting into the VoiceFinder AP-MG3000N User’s Manual This chapter provides the overview of the PassFinder AP-MG3000N Gateway user’s manual and an explanation of the symbols and legends involved. [Composition of the Manual ] The PassFinder AP-MG3000 installation guide serves to assist the installation of the AP- MG3000N Gateway.
  • Page 6 VoiceFinder AP-MG3000N Media Gateway , Release 1.00 For technical supports, please contact AddPac Technology Co. Ltd AddPac Technology Co., Ltd Fl. Jeong-Am Building, 769-12 Phone (02) 568-3848 Fax (02) 568-3847 E-mail : info@addpac.com http://www.addpac.com The revision history of VoiceFinder AP2620 Gateway Installation Guide is as follows Revision No.

  • Page 7: Introduction To The Voicefinder Ap-Mg3000N

    AP-MG3000N Overview Introduction to the VoiceFinder AP-MG3000N VoiceFinder AP-MG3000N Media Gateway is a high performance Media Gateway providing high scalability, cost-effective service in a small footprint. Moreover, AP-MG3000 supports major VoIP call control protocols including H.323, SIP, and MGCP concurrently on...

  • Page 8: Voicefinder Ap-Mg3000N Gateway Overview

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 The exterior of AP-MG3000N Media Gateway is as below. [ Figure 1-2 The Exterior of VoiceFinder AP-MG3000N Media Gateway ] VoiceFinder AP-MG3000N Gateway Overview Meet the needs for VoIP Trunking, Security, and IP Centrex VoiceFinder AP-MG3000 offers 120 channels of unprecedented quality of digital VoIP com munication with the density requirement.
  • Page 9 VoiceFinder AP-MG3000N Media Gateway , Release 1.00 providers to rapidly deploy future secured service. Including AP- MG3000, AddPac Technology carries SRTP protocol based secure VoIP Gateways such as VoiceFinder AP500S, AP2520S. AP-MG3000 is the right choice for secured, next generation communication.

  • Page 10: Table 1-1> Voicefinder Ap-Mg3000N Hardware Specification

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 VoiceFinder AP-MG3000N Gateway Hardware Specification <Table 1-1> VoiceFinder AP-MG3000N Hardware Specification Microprocessor 64bit RISC Microprocessor Flash Memory 8Mbyte Memory SDRAM Memory 64Mbyte High-Speed SDRAM Boot Memory 512Kbyte Flash Memory DES and 3DES for Data Encryption, ECB, CBC Mode...

  • Page 11: Table 1-2> Voicefinder Ap-Mg3000N Support Protocol And Service

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 VoiceFinder AP-MG3000N Support Protocol and Service <Table 1-2> VoiceFinder AP-MG3000N Support Protocol and Service Routing Protocols Static and IEEE 802.1Q VLAN Routing, RIP v1/v2, OSPF v2 WAN Protocols Point-to-Point Protocol (PPPoE for ADSL), DHCP, Static IP ITU-T H.323 v3 VoIP Protocol with ITU-T H.235 Security Feature...
  • Page 12 VoiceFinder AP-MG3000N Media Gateway , Release 1.00 PPP User Authentication Supports → Password Authentication Protocol(PAP) → Challenge Handshake Authentication Protocol (CHAP) System Performance Analysis for Process, CPU Configuration Backup & Restore for APOS Managements Debugging, System Auditing, and Diagnostics Support Operation &...

  • Page 13: Table 1-3> The Below Table Describes The Front Panel Led Of Voicefinder Ap-Mg3000N Gateway

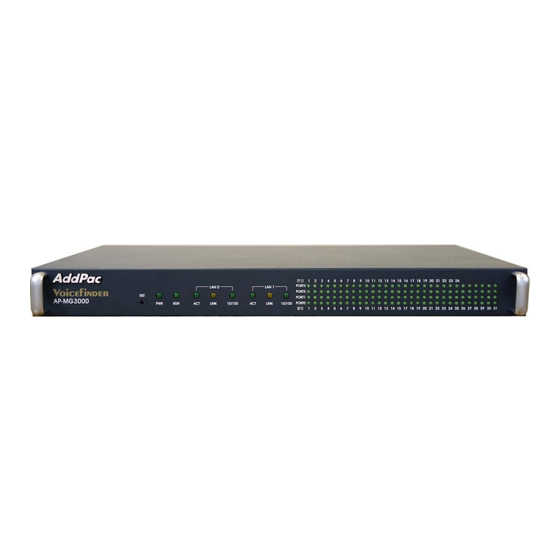

    Digital E1/T1 Voice interfaces, two(2) Ethernets, Console port making possible WAN-to-LAN VoIP service and IP routing service. [ Figure 1-3 VoiceFinder AP-MG3000N Front View ] <Table 1-3> The below table describes the front panel LED of VoiceFinder AP-MG3000N Gateway...

  • Page 14: Table 1-4> Voicefinder Ap-Mg3000N Gateway Rear View Interface Description

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 VoiceFinder AP-MG3000N Gateway Rear Part AP2620 VoIP Gateway’s rear view adapts external architecture for user friendly cable and power switch working [ Figure 1-4 VoiceFinder AP-MG3000N Rear View ] <Table 1-4> VoiceFinder AP-MG3000N Gateway Rear View Interface Description Label...

  • Page 15: Network Interface Slot

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 Network Interface Slot 2-Port 10/100Mbps Ethernet, 1-Port RS-232C Console, 1-Port Async Interface AP-2LAN network module for multi service router comes with 2-port 10/100 Fast Ethernet interface, 1-port RS-232C console interface, 1- port Async serial interface(RJ45).

  • Page 16: Trunk Interface Modules

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 Trunk Interface Modules 1-Port PBX Digital E1 Trunk Interface Module VoiceFinder AP-MG3000N Media Gateway supports digital E1 voice processing module for PBX interworking. Digital E1 interface module supports ISDN-PRI, MFC-R2, DTMF and accommodate maximum 30 voice channels.
  • Page 17 VoiceFinder AP-MG3000N Media Gateway , Release 1.00 VoiceFinder AP-MG3000N Media Gateway supports digital E1 voice processing module for PBX interworking. Digital E1 interface module supports ISDN-PRI, MFC-R2, DTMF and accommodate maximum 60 voice channels. [ Figure 1-8 APV2-2E1 card for AP-MG3000N ]...

  • Page 18: Chapter 2. Before Ap-Mg3000N Installation

    [ Figure 1-10 APV2-4E1 card for AP-MG3000N ] 4-Port PBX Digital T1 Trunk Interface Module VoiceFinder AP-MG3000N Media Gateway supports digital T1 voice processing module for PBX interworking. Digital T1 interface module supports ISDN-PRI, MFC-R2, DTMF and accommodate maximum 92 voice channels.

  • Page 19: Installation Requirements

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 Installation Requirements The following is the recommendation for safe operation of the equipment. Ensure AP-MG3000 VoIP Gateway is in a dust-free environment before and after installation. Ensure the AP-MG3000 cover is opened on a flat and safe surface.

  • Page 20: General Requirements

    If no waist tap is available, earthing by holding a metal part of the Chassis will help prevent static electricity. General Requirements VoiceFinder AP-MG3000N is ready for use where electronic products are used. However, a location with the following conditions are recommended for maximum performance.

  • Page 21: Unpacking

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 Preparation for Installation Unless ordered in advance, the tools and certain cables are not provided in the package. Prepare the following equipments and tools before the installation. Standard screwdriver set Cable for LAN and serial port...
  • Page 22 VoiceFinder AP-MG3000N Media Gateway , Release 1.00 If no external damage has found, confirm if the following items are enclosed. Item Contents Q’ty VoiceFinder AP- MG3000N Gateway Main Body LAN Cable (For RJ45 to RJ45) Console Port Cable (For RJ45 to DB9)

  • Page 23: Chapter 3. Ap-Mg3000N Installation

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 Chapter 3. AP-MG3000N Installation Console Interface Connection Connect the console port in the rear side of the Gateway with the serial port of the prepared console terminal. (Refer to [Figure 3.1]) Use the console cable provided with the package. If using a...

  • Page 24: Ethernet Interface Connection

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 Ethernet Interface Connection Connect the network to the desired port using RJ-45 connector. Below figure shows a network config with LAN0 for WAN, LAN1 for PC. [ Figure 3-2 Connection between AP-MG3000N LAN0/LAN1 and...

  • Page 25: E1 Interface Connection

    Usually this VoIP modules interwork with PBX thruogh Digital E1. APVI-1E1 VoIP Digital E1 Interface module supports ISDN-PRI, MFC- R2, DTMF and accommodates maximum 32 voice channels. [ Figure 3-3 VoiceFinder AP-MG3000N E1 Interface Connection ] 36 - 25 AddPac Technology Proprietary & Documentation...

  • Page 26: Connection For Ap-Mg3000N Interfaces

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 Connection for AP-MG3000N Interfaces The below figure is an example of VoiceFinder AP-MG3000 Gateway Interface connection. [ Figure 3-4 An Example of connection of the VoiceFinder AP- MG3000N Interfaces ] 36 - 26...

  • Page 27: Ap-Mg3000N Gateway Booting And Operation

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 Chapter 4. Power Supply Check Operational Status AP-MG3000N Gateway Booting and Operation When power is supplied, the system is booted as described below.. VoiceFinder AP-MG3000 Gateway performs a self-test and checks basic operations of the CPU, the memory and interfaces.

  • Page 28: Use Console Terminal With Hyperterminal

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 Use Console Terminal with HyperTerminal To use a PC as a Console terminal, the communication emulator application should be installed. When the PC is MS-Windows line, use the HyperTerminal Application. [ Figure 4-1 MS-Windows Terminal Emulator - HyperTerminal ] 36 - 28 AddPac Technology Proprietary &...
  • Page 29 VoiceFinder AP-MG3000N Media Gateway , Release 1.00 Assign a name to the connection. “AddPac” is used at the below example. [ Figure 4-2 Assign a name for the new connection in HyperTerminal ] 36 - 29 AddPac Technology Proprietary & Documentation...
  • Page 30 VoiceFinder AP-MG3000N Media Gateway , Release 1.00 Select the interface whether the Console cable is connected. Typically, the Console cable is connected to the RS-232C 9Pin Serial Port, so select the right port according to the user environment. “Com1” is selected at the below example.
  • Page 31 VoiceFinder AP-MG3000N Media Gateway , Release 1.00 Set the port information. The below examples is based on “COM1” port. [ Figure 4-4 COM1 Port Configuration ] 36 - 31 AddPac Technology Proprietary & Documentation...
  • Page 32 HyperTerminal. This message shows the routing S/W version, Gateway H/W test result, memory and etc. System Reboot... System Boot Loader, Version 2.3.1/1 Copyright (c) by AddPac Technology Co., Ltd. Since 1999. System Bootstrap, Version 1.2 Decompressing the image: ############################################################ #####...
  • Page 33 VoiceFinder AP-MG3000N Media Gateway , Release 1.00 Hardware Revision ID = 0 Voice Module type (0): E1 [4] Voice Module type (1): NULL [0] Interface ethernet0.0, changed state to UP VOIP_INTERFACE_UP : (172.17.201.40) Voice Module ready E1 Framer (0/0): ... OK E1 Framer (0/1): ...

  • Page 34: Table 5-1> The Transferred Signal And Pinout Specification

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 Chapter 5. Appendix Cable Specification This Appendix provides information about the Pinout specifications of the following cables used with VoiceFinder AP-MG3000N Gateway. Console Port Signal and Pinout (RJ-45 to DB9) Ethernet Cable Assemble (RJ-45 to RJ-45) Pinout E1/T1 Cable (RJ-45 to PBX) Pinout Console Port Signal &...

  • Page 35: Table 5-2> Signal And Pinout Of Direct Ethernet Cable

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 [UTP cable (RJ-45 to RJ-45) Pinout] In order to connect the gateway with other equipments (i.e. HUB), the RJ- 45 to RJ-45 Ethernet Cable is used. The RJ-45 Connector Pin sequence is provided below and the transferred signal and Pinout specifications are enlisted at the below table.

  • Page 36: Figure 5-2 Digital E1/T1 Rj45 Pinout ]

    VoiceFinder AP-MG3000N Media Gateway , Release 1.00 [E1/T1 Cable (RJ-45 to PBX) Pinout] Addpac E1/T1 can be connected with RJ45 cable. RJ45 pin array is as below, PBX’s RX is assigned for RJ45 pin 1 and 2, TX is for pin 4 and 5.
