Page 1: Voip Gateway

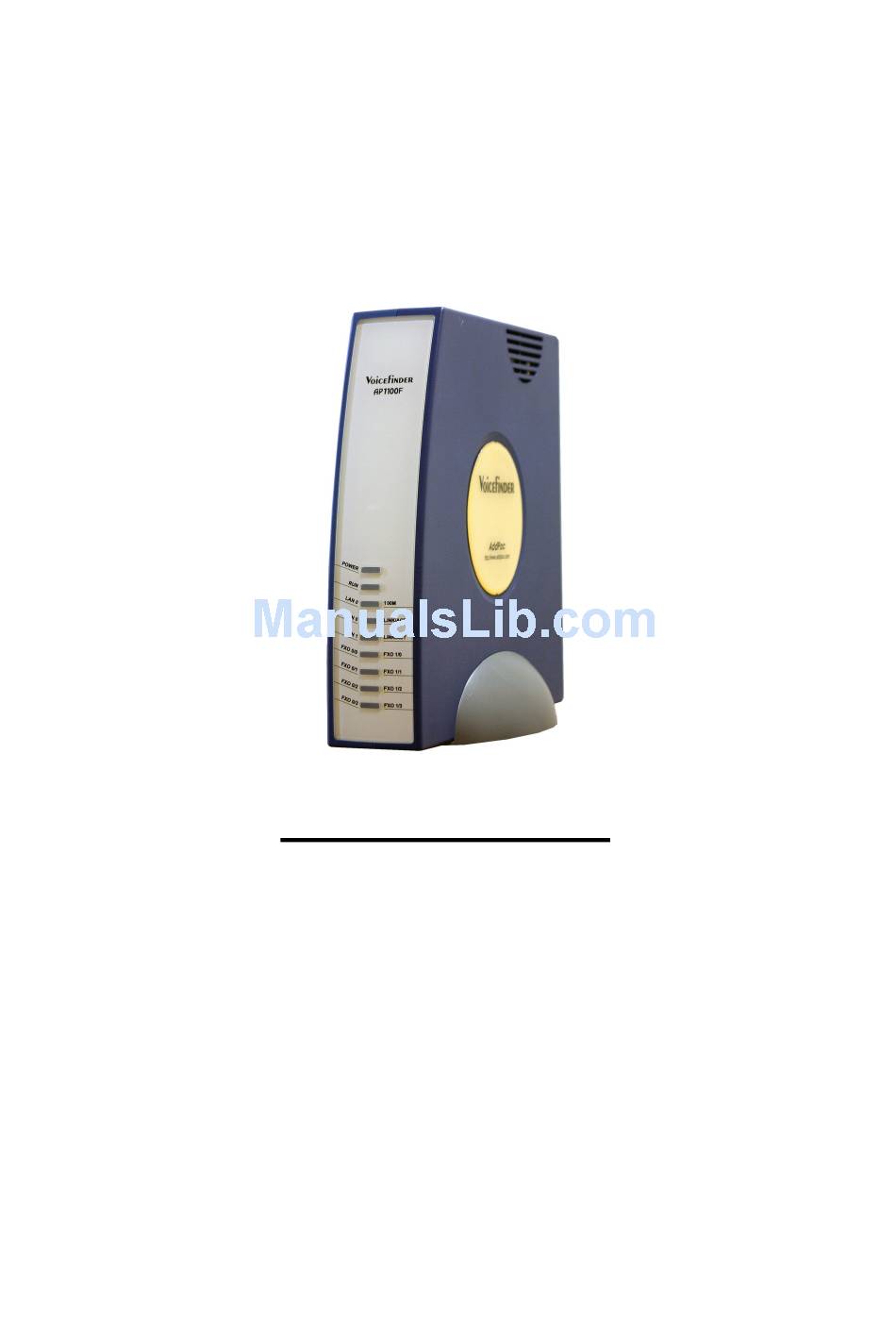

VoiceFinder AP1100F VoIP Gateway Installation Guide Release 1.0 June. 2003 AddPac Technology Co., Ltd. 2/ 3F, Jeong-Am Bldg, Kangnam-Gu, Seoul, Korea. Zip 135-080 Phone (82 2) 568-3848 Fax (82 2) 568-3847 E-mail: info@addpac.com http://www.addpac.com... - Page 2 VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 AddPac Technology Co., Ltd.
-
Page 3: Table Of Contents
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 [Contents] About This Guide VoiceFinder AP1100F VoIP Gateway Overview .......11 Chapter 1. Introduction to VoiceFinder AP1100F Gateway................11 Main Features ............................13 Hardware Description ........................13 Voice over IP Service........................14 IP Routing Protocols ......................... 14 Network Managements........................ - Page 4 VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 Appendix ....................39 Chapter 4. VoiceFinder AP1100F Gateway Technical Description..............39 Cable Specification ...........................42 AddPac Technology Co., Ltd.
- Page 5 Figure 1-2: The exterior view of VoiceFinder AP1100F Gateway............12 Figure 1-3: VoiceFinder AP1100F Gateway front view................16 Figure 1-4: The rear panel image of VoiceFinder AP1100F Gateway ..........18 Figure 3-1: RS-232C Console port interface diagram between AP1100F VoIP gateway and PC or notebook computer ......................27...
- Page 6 VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 [Table of Tables] Table 1-1: The interfaces and explanation of the front panel of AP1100F Gateway ......17 Table 1-2: The interfaces and explanation of the rear panel of AP1100F Gateway ......19 Table 1-3: The interfaces of VoiceFInder AP1100F Gateways..............19 Table 3-1: VoiceFinder AP1100F Gateway package ................26...
-
Page 7: About This Guide
Chapter 1 『 VoiceFinder AP1100F VoIP Gateway Overview 』provides an introduction to the H/W and S/W of VoiceFinder AP1100F VoIP Gateway and how to apply for the technical supports. Chapter 2 『Before Installation』provides an explanation on the installation... -
Page 8: Addpac Technology Co., Ltd
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 For technical supports, please contact AddPac Technology Co. Ltd. AddPac Technology Co., Ltd 2/ 3 Fl. Jeong-Am Bulding, 769-12 Yeoksam-Dong, Kangnam-Ku, Seoul, Korea Phone (02) 568-3848 Fax (02) 568-3847 E-mail: info@addpac.com http://www.addpac.com... - Page 9 VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 The revision history of VoiceFinder AP1100F VoIP Gateway Installation Guide is as follows. Revision No. Date Comments Written by AddPac Version 1.0 June 2003 Edition R&D Center AddPac Technology Co., Ltd.
- Page 10 VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 [Symbols and Legends] The symbols and legends used in this installation guide are as follows: Commands and Keywords are typed in Bold. Variables that require user inputs are typed in Italic. Square brackets ([]) are optional values.
-
Page 11: Chapter 1. Voicefinder Ap1100F Voip Gateway Overview
Overview Introduction to VoiceFinder AP1100F Gateway Information VoiceFinder AP1100F VoIP Gateway offers Voice over IP service by connecting Local Area Networks, Wide Area Network or broadband network of ADSL. The below is the network diagram using VoiceFinder AP1100F Gateway. Figure 1-1: The network diagram using VoiceFinder AP1100F Gateway... -
Page 12: Figure 1-2: The Exterior View Of Voicefinder Ap1100F Gateway
IP addresses to network clients automatically (DHCP server mode) and can receive a dynamically assigned IP address from a DHCP Server (DHCP client mode). VoiceFinder AP1100F Gateway solves the IP address shortage problem by using NAT (Network Address Translation) protocol. -
Page 13: Main Features
Internet subscribers of ADSL and cable modem. Also, VoiceFinder AP1100F Gateway is easy to install and operate, even for first time users and offers static, RIP v1/2 and OSPF v2 routing function. -
Page 14: Voice Over Ip Service
Interoperable with SIP Proxy Servers Interoperable with MGCs IP Routing Protocols VoiceFinder AP1100F Gateway supports various IP routing protocols. The main IP routing features are followings. Supports various IP routing and bridging protocol Static, RIP v1/v2, OSPF v2 routing protocols... -
Page 15: Security Functions
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 Security Functions VoiceFinder AP1100F Gateway supports various security functions. Standard & Extended IP Access List for network security function. Enable/Disable for Specific Protocols Multi-level User Account managements Auto-Disconnect for Telnet/Console Sessions Operation and Managements VoiceFinder AP1100F Gateway supports following operation and maintenance features. -
Page 16: Hardware Configuration And Network Interfaces

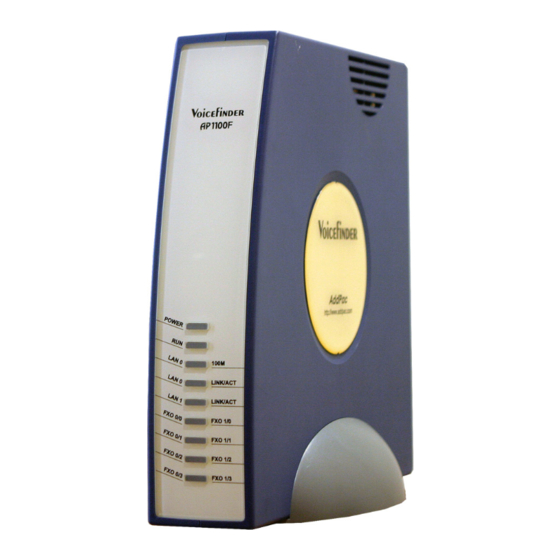

Gateway. VoiceFinder AP1100F Gateway Part & Description VoiceFinder AP1100F Gateway is made by the high intensity ABS with compact design. The front panel of VoiceFinder AP1100F Gateway includes various LEDs indicating the operational status of the device. On the rear panel, there is a LAN0 interface for WAN connection, LAN1 interface for LAN connection, and various voice interfaces. -
Page 17: Table 1-1: The Interfaces And Explanation Of The Front Panel Of Ap1100F Gateway
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 Table 1-1: The interfaces and explanation of the front panel of AP1100F Gateway Description Power LED, display whether external power is supplied normally POWER or not. (Green) RUN LED, display the normal operation of the gateway. (Orange) LAN0 100Mbps LAN0 LED, display whether the line speed is 100Mbps. -
Page 18: Rear View Of Ap1100F
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 Rear View of AP1100F The rear side of the VoiceFinder AP1100F VoIP Gateway includes 10/100Mbps Ethernet Interface ports for WAN, 10Mbps Ethernet Interface port for LAN, RS-232C serial port for management, and FXS and FXO interface ports for voice signal processing. -
Page 19: Table 1-2: The Interfaces And Explanation Of The Rear Panel Of Ap1100F Gateway
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 The following Table 1-2 explains the rear side panel interface of AP1100F VoIP gateway. Table 1-2: The interfaces and explanation of the rear panel of AP1100F Gateway Interface Explanation DC Power External DC Power Supply Input... -
Page 20: Network Interface
WAN environment formation. It is a RJ45 type standard interface. 1-Port 10Mbps Ethernet Interface for LAN (RJ45) VoiceFinder AP1100F VoIP Gateway offers one (1) 10Mbps Ethernet interface to form Local Area Network (LAN). It is a RJ45 type standard interface. -
Page 21: Voice Processing Interfaces
4-Port FXO voice interface ports AP1100F Type B 8-Port FXO voice interface ports VoiceFinder AP1100F Gateway is a network device offering not only data service, but also voice service at one device. 4- Port FXS Voice Interface VoiceFinder AP1100F Gateway supports four (4)-port FXS (Foreign Exchange Station) Voice Interfaces. -
Page 22: Chapter 2. Before Installation
Ensure VoiceFinder AP1100F Gateway is in a dust-free environment before and after installation. Make sure to install VoiceFinder AP1100F Gateway on a flat and safe surface. To prevent accidents, be careful with ties, scarf, sleeves, and any other loose clothing from entangling with the chassis. -
Page 23: General Requirements
If no wrist strap is available, earthening by holding a metal part of the Chassis will help prevent static electricity. General Requirements Warning VoiceFinder AP1100F Gateway is ready for use where other electronic products can be used. However, the following conditions are recommended for maximum performance. • A flat and well ventilated location. STOP •... -
Page 24: Network Connection Requirements
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 Network Connection Requirements Consider EMI Standard and distance limitation while installing VoiceFinder AP1100F Warning Gateway. The below explains PSTN cable, Ethernet cable, Console Cable of VoiceFinder STOP AP1100F Gateway. Necessaries Unless ordered in advance, the tools and certain cables are not provided in the package. -
Page 25: Ethernet Port
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 Ethernet Port VoiceFinder AP1100F Gateway offers one (1) RJ45 type 10BaseTX Ethernet port and one (1) RJ45 type 10/100BaseTX Etherent port on the rear panel and LEDs are indicating the port status are on the front panel. For the PIN information of the Ethernet cable, refer to Chapter 4. -
Page 26: Chapter 3. Gateway Installation
Q’ty VoiceFinder AP1100F Gateway Main Body Ethernet Cable (for RJ45 to RJ45) Console Cable (for RJ45 to DB9) Power supply External Adapter (100V/220V) If any item is missing, immediately contact AddPac Technology Co. Ltd. customer support. AddPac Technology Co., Ltd. -
Page 27: Voicefinder Ap1100F Interfaces And Cable Connection
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 VoiceFinder AP1100F Interfaces and Cable connection Install VoiceFinder AP1100F Gateway at the suitable place illustrated at Chapter 2. Async Serial Interface Connection Connect RJ45 connector of RS-232C serial console cable to the Console port and connect the other side of the cable at the serial port of the PC. -
Page 28: Ethernet Interface Connection
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 Ethernet Interface Connection With RJ45 UTP cable, connect LAN0 Interface of VoiceFinder AP1100F Gateway to the LAN interface of the WAN equipment such as a Router. Router (IP Network) Figure 3-2: Network connection diagram between AP1100F gateway and WAN network AddPac Technology Co., Ltd. -
Page 29: Figure 3-3: Network Connection Diagram Between Ap1100 Gateway And Local Lan Network
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 In case of IP share mode, connect PC directly to the LAN1 Interface. In case of NAT/PAT, connect a local HUB. For the detailed configuration, refer to Operation Manual or Quick Operation Manual. -
Page 30: Fxo Interface Connection
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 FXO Interface Connection Connect FXO Interfaces to PBX (Private Branch eXchange) with RJ11 cable or directly to PSTN lines. Figure 3-4: FXO analog voice port interface diagram between AP1100F VoIP gateway and PBX or PSTN... -
Page 31: Booting
Booting When power is supplied, the system is booted as described below VoiceFinder AP1100F Gateway performs a self-test and checks basic operations of the CPU, the memory and interfaces. The boot loader is executed, and the boot loader seeks for proper software image files. - Page 32 VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 After connecting all the interfaces, supply the power to VoiceFinder AP1100F Gateway. Danger Supply the power after connecting the adapter to VoiceFinder AP1100F Gateway. Do not connect the adapter to the power supply before connecting it to the gateway.
-
Page 33: Use Console Terminal With Hyperterminal
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 Use Console terminal with HyperTerminal To use a PC as a Console terminal, the communication emulator application should be installed. When the PC is MS-Windows line, use the HyperTerminal Application. Figure 3-5: MS-Windows Communication Emulator HyperTerminal... -
Page 34: Figure 3-6: Assign A Name For The New Connection
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 Assign a name to the connection. “AddPac” is used at the below example. Figure 3-6: Assign a name for the new connection AddPac Technology Co., Ltd. -
Page 35: Figure 3-7: Select The Interface For Console Cable
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 Select the interface where the Console cable is connected. Typically, the Console cable is connected to the RS-232C 9Pin Serial Port, so select the right port according to the user environment. “COM1” is selected at the below example. -
Page 36: Figure 3-8: Com1 Properties
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 Set the port information. The below examples is based on “COM1” port. Figure 3-8: COM1 Properties AddPac Technology Co., Ltd. - Page 37 VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 After the configuration, press “Enter” button, then the below message will be displayed on the HyperTerminal. This message shows the routing S/W version, Gateway H/W test result, memory and etc. System Boot Loader, Version 1.3.6/1 Copyright (c) by AddPac Technology Co., Ltd.
- Page 38 After the log-in process, the prompt “router#” is displayed on the console terminal. There are two types of prompts used for VoiceFinder AP1100F Gateway: “router>” and “router#”. The “ > ” prompt indicates that the user is not an administrator. With this prompt, the user is unable to use certain commands: particularly the configuration commands.
- Page 39 VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 Chapter 4. Appendix VoiceFinder AP1100F Gateway Technical Description This Chapter explains the supported Technical Specification of VoiceFinder AP1100F VoIP Gateway. (* means that the item is not yet implemented.) IP Routing Service Static...
- Page 40 VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 Security Functions IP Access List Standard and Extended IP Access List, IP Packet Filtering PPP User Password Authentication Protocol (PAP) Authentication Challenge Handshake Authentication Protocol (CHAP) Access Control and Data Protections Enable/Disable for Specific Protocols...
-
Page 41: Hardware Specification
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 Hardware Specification Microprocessor 32bit RISC Microprocessor 1-Port 10Mbps Ethernet Interface for WAN (RJ45) 1-Port 10Mbps Ethernet Interface for LAN (RJ45) Network Interface 1-Port Async Serial Interface for RS-232C Console Port (RJ45) 4-Port FXS Voice Interface (4 x RJ11) -
Page 42: Table 4-1: The Transferred Signal And Pinout Specification
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 Cable Specification This Appendix provides information about the Pinout specifications of the following cables used with VoiceFinder AP1100F Gateway. Console Port Signal and Pinout (RJ-45 to DB9) Ethernet Cable Assemble (RJ-45 to RJ-45) Pinout [Console Port Signal &... -
Page 43: Figure 4-1: 10Base-T Rj-45 Connector
VoiceFinder AP1100F VoIP Gateway Installation Guide Version 1.0 [Ethernet Cable Assemble (RJ-45 to RJ-45) Pinout] In order to connect the gateway with other equipments (i.e. HUB), the RJ-45 to RJ-45 Ethernet Cable is used. The RJ-45 Connector Pin sequence is provided below and the transferred signal and Pinout specifications are enlisted at the below table.
