- Page 1 VoiceFinder AP100 VoIP Gateway [Installation Guide] May 2006 Technical Sales Division AddPac Technology Co., Ltd. www.addpac.com...
-
Page 2: Table Of Contents
1.2. Main Features and Characteristics..................11 1.3. Hardware Configuration and Network Interfaces...............15 1.3.1. Names and Features of VoiceFinder AP100 Parts ............ 15 1.3.2. Fixed Network Interface....................18 1.3.3. Fixed Voice Processing Interfaces................19 CHAPTER 2 Preparatory Information on AP100 Installation ......20 Recommendations for Installation ..................20... -
Page 3: List Of Figures
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) [ List of Figures ] [Figure 1-1] Standard Configuration of Network Using VoiceFinder AP100 Gateway....9 [Figure 1-2] Exterior of VoiceFinder AP100 VoIP Gateway ............. 10 [Figure 1-3] Front Panel of VoiceFinder AP100 VoIP Gateway..........15 [Figure 1-4] Rear Panel of VoiceFinder AP100 VoIP Gateway .......... -
Page 4: List Of Tables
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) [ List of Tables ] [Table 1-1] Front Panel of VoiceFinder AP100 VoIP Gateway ..............16 [Table 1-2] Rear Panel of VoiceFinder AP100 VoIP Gateway..............17 [Table 3-1] Package of VoiceFinder AP100....................23 [Table 3-2] Features of Web Browser ...................... -
Page 5: Introduction
If you have been used AP100 VoIP gateway before, refer to helpful chapters. If you are not familiar with AP100, or have not installed it before, you read this document carefully before handling AP100. Chapter 1 『 VoiceFinder AP100 Overview 』 provides an overview of the features of AP100, and describes its hardware and software specification. - Page 6 Fls. 2, 3, and 5, Jeong Am Bldg., 769-12, Yoksam-dong, Kangnam-ku, Seoul, Korea Phone: (02) 568-3848 (Rep.) Facsimile: (02) 568-3847 E-mail Address: info@addpac.com http://www.addpac.com The revision history of the VoiceFinder AP100 Installation Guide is as follows: Edition No. Date Revision Author Edition 1.0...
- Page 7 VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) [Symbols and Legends] The symbols and legends used in this document are as follows: Commands and keywords are typed in Bold. Variables that require user inputs are typed in Italic. Square brackets ([]) are optional values.
- Page 8 VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) The following conventions are also used to draw the user’s attention: Category Description Danger Danger This symbol indicates possible danger. Misuse may result in physical injuries. Please follow the instructions to avoid any electric shocks.
-
Page 9: Chapter 1 Voicefinder Ap100 Overview

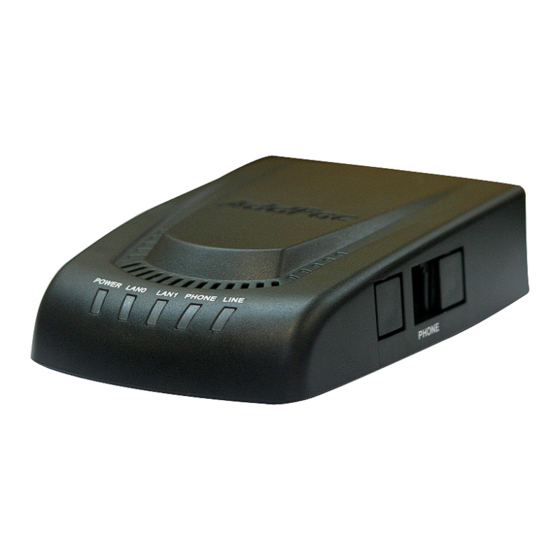

CHAPTER 1 VoiceFinder AP100 Overview 1.1. Introduction to VoiceFinder AP100 VoiceFinder AP100 VoIP Residential Gateway is a standard Voice over IP Gateway that allows you to use voice phones, facsimiles, or data communications by inter-connecting adjacent Local Area Network (LAN) or... -
Page 10: [Figure 1-2] Exterior Of Voicefinder Ap100 Voip Gateway
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) since it provides the same operation environment as the plain old AP VoIP gateway series to ensure very simple installation, operation, and maintenance, and can be used easily at home. The figure below shows the exterior of AP200 VoIP Gateway:... -
Page 11: Main Features And Characteristics
AP100 is based on a unique QoS algorithm, which is the proprietary technology of AddPac, and a state-of-the-art voice compression algorithm to ensure the best voice quality of low- speed Internet lines as well as high-speed ones. This product is designed based on high-performance RISC CPU and DSP, and supports higher rate, better quality, and various convenient features. - Page 12 VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) Hardware Description (Hardware Specification) VoiceFinder AP100 VoIP gateway is based on state-of-the-art embedded hardware technologies, and supports various network interfaces and much system memory. The hardware specification is as follows: High performance WAN-to-LAN residential voice gateway...
- Page 13 VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) Supports Transparent Bridging (IEEE Spanning Tree Protocol). Network Administration VoiceFinder AP100 VoIP Gateway supports the following network administration features for systematic management: Supports standard SNMP Agent, MIB II, and Bridge MIB for systematic management.
- Page 14 Performs data logging and management. Performs IP statistics and accounting. Other Scalability Features VoiceFinder AP100 VoIP Gateway supports the following supplementary features: Supports the DHCP server, relay, and client for easy IP management. Supports NAT/PAT for efficient IP management. Supports remote software upgrade by TFTP and FTP.
-
Page 15: Hardware Configuration And Network Interfaces
The front panel of AP100 VoIP gateway is equipped with several LEDs for easy control. The figure below shows the exterior of the front panel: [Figure 1-3] Front Panel of VoiceFinder AP100 VoIP Gateway Each LED of VoiceFinder AP100 VoIP Gateway is described in the table below: 40 - 15 AddPac Technology Proprietary & Documentation... -
Page 16: [Table 1-1] Front Panel Of Voicefinder Ap100 Voip Gateway
Shows that the phone is being used (Green). LINE ⑤ Shows that the line is being used (Red). ※ The LEDs on the front panel may vary depending on models. [Table 1-1] Front Panel of VoiceFinder AP100 VoIP Gateway 40 - 16 AddPac Technology Proprietary & Documentation... -
Page 17: [Figure 1-4] Rear Panel Of Voicefinder Ap100 Voip Gateway
Standard Configuration Model The figure below shows the exterior of the rear panel: [Figure 1-4] Rear Panel of VoiceFinder AP100 VoIP Gateway The rear panel of the standard setup model of AP100 VoIP Gateway is described in the table below. -
Page 18: Fixed Network Interface
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) 1.3.2. Fixed Network Interface AP100 VoIP Gateway supports fixed network interfaces of high quality as follows: 1-Port 10/100Mbps Ethernet Interface for WAN 1-Port 10/100Mbps Ethernet Interface for LAN The specification of the above network interfaces allows you to configure WAN and LAN that support network protocols based on TCP/IP and to configure networks for dedicated lines or VoIP networks on a broadband network through ADSL or cable modems. -
Page 19: Fixed Voice Processing Interfaces
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) 1.3.3. Voice Processing Interfaces The FXS voice processing interfaces of AP100 VoIP Gateway can be connected to regular phones, facsimiles, and PBXs. FXS Interface-Type Voice Processing Port Optional PSTN Backup Port (AP100P Model) AP100 VoIP gateway is a network device that supports integrated services such as voice services and data services. -
Page 20: Chapter 2 Preparatory Information On Ap100 Installation
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) CHAPTER 2 Preparatory Information AP100 Installation 2.1. Recommendations for Installation Recommendations for the safe use of this product are as follows: • Install and use this product in a clear and dust-free place. -
Page 21: General Requirements For Installation
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) place and an ungrounded power extension cable. ESD Prevention The main chipset of this product is very precise. If you handle its elements in a wrong method, the product may be damaged due to ESD. -
Page 22: Preparatory Information On Network Access
RJ-11 to RJ-11 cable for regular phone lines 2.2.2. Ethernet Port The rear panel of VoiceFinder AP100 is equipped with two RJ45 10/100 Mbps Fast Ethernet ports, and the front panel is equipped with the LEDs that display LAN, FXS, PSTN port status. Use the standard cable and connector if you want to access the LAN network by using this port. -
Page 23: Chapter 3 Ap100 Installation
[Table 3-1] Package of VoiceFinder AP100 If the product is broken while being moved or has any defects, contact the Technical Sales division or Customer Support team of AddPac (Representative phone number: 82-2-568-3848). 40 - 23 AddPac Technology Proprietary & Documentation... -
Page 24: Sequence Of Connecting Cables To Ap100 Interfaces
Connect the LAN0 interface to the LAN interface of the WAN device by using an RJ45 UTP cable. Connect the LAN1 interface to the internal LAN of the PC. [Figure 3-1] Standard Network Configuration Using VoiceFinder AP100 Gateway 40 - 24... -
Page 25: Connecting Phone Interfaces
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) 3.2.2. Connecting Phone Interfaces Connect voice devices for subscribers to the FXS port by using an RJ11 cable. [Figure 3-2] Connecting a Regular Phone to VoiceFinder AP100 40 - 25 AddPac Technology Proprietary & Documentation... -
Page 26: Connecting Pstn Interfaces
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) 3.2.3. Connecting PSTN Interfaces Connect the external PSTN to the PSTN port by using a RJ11 cable. [Figure 3-3] Connecting PSTN to VoiceFinder AP100 40 - 26 AddPac Technology Proprietary & Documentation... -
Page 27: Power Supply And Verification Of Proper Operation
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) 3.3. Power Supply and Verification of Proper Operation Before supplying the power, you should be aware of the following procedure for booting AP100: AP100 performs a self-test, and checks if the CPU, memory, and interfaces are properly operating. - Page 28 VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) After AP100 is installed and the interfaces are connected, the power should be supplied. The external power adapter should be connected to AP100 before power supply. Do not connect the adapter to AP100 after supplying the power to the adapter. If the power of 110V is supplied, you should use an external power adapter for 110V.
-
Page 29: Using Ap100 Web Server Using Web Browser
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) 3.3.1. Using AP100 Web Server Using Web Browser To access from the user PC to AP100 Web Server, the IP address of 192.168.10.x should be set. (The IP address of AP100 Web Server is 192.168.10.1.) The user PC should be connected to the LAN1 interface of AP100 one to one in order to access AP100 Web Server. -
Page 30: [Figure 3-5] Options On Web Browser
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) The options below can be set from the Web browser: [Figure 3-5] Options on Web Browser 40 - 30 AddPac Technology Proprietary & Documentation... -
Page 31: [Table 3-2] Features Of Web Browser
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) Option Description Allows you to check the current system information. Sets System ① accounts. Network Sets WAN/LAN interfaces. ② Speed Dial Sets the speed dial. ③ VoIP Sets voip-peer. ④ ⑤ Sets the information on SIP register. -
Page 32: Connecting To Telnet Using Hyperterminal
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) 3.3.2. Connecting to Telnet Using HyperTerminal If you want to connect to Telnet from the PC, a terminal emulator application should be installed. If you use a Microsoft Windows operating system, use the built-in HyperTerminal application. -
Page 33: [Figure 3-7] Settings For Telnet Connection
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) Set Connect Using: to TCP/IP (Winsock) from Connect to:. The IP address of the AP100 connected to the PC is, and the AP100 uses Port 23 by default. [Figure 3-7] Settings for Telnet Connection 40 - 33 AddPac Technology Proprietary &... -
Page 34: [Figure 3-8] Example Of Telnet Connection
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) Once the login message is displayed, enter the login default, “root” and the password default, “router”. Then, the login will be complete. Once the login is complete, a prompt, “AP100>” will be displayed on the console terminal. -
Page 35: Chapter 4 Appendix
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) CHAPTER 4 Appendix 4.1. Specification of VoiceFinder AP100 VoIP Gateway This Appendix describes the technical specifications of VoiceFinder AP100 VoIP Gateway. (* refers to ‘To be enabled’.) IP Routing Service IP Routing Protocols Static IEEE 802.1Q VLAN Routing... -
Page 36: Network Management
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) Voice over IP Service (Integrated Voice and Data Services) ITU-T H.323 v2 Protocol with ITU-T H.235 Security Feature VoIP Protocols Session Initiation Protocol (SIP) Media Gateway Control Protocol (MGCP) G.723.1 MP-MLQ, 6.3 Kbps, 5.3 Kbps Voice Compression G.729.A CS-ACELP, 8 Kbps... - Page 37 VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) Operation and Management Console Port RS-232C Based Async Serial Interface Support Console, RlogIn, Telnet Remote Management System Performance Analysis Process, CPU, and Connection Interface APOS Management APOS Configuration Back-up and Restore Remote Upgrade Function using FTP/TFTP...
-
Page 38: Hardware Specification
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) Hardware Specification Microprocessor RISC Microprocessor and Voice DSP Network Interface 1-Port 10/100 Mbps Ethernet Interface for WAN (RJ45) 1-Port 10/100 Mbps Ethernet Interface for LAN (RJ45) Voice Interface Up-to 1-Port FXS Voice Interface (RJ11) -
Page 39: Cable Specification
VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) 4.2. Cable Specification This section describes the pinout specification of the following cable used for AP100: Pinout of Ethernet cable assembly (RJ-45 to RJ-45) [ Pinout of Ethernet Cable Assembly (RJ-45 to RJ-45) ] An RJ-45 to RJ-45 Ethernet cable is used to connect AP100 to another device (typically hub). - Page 40 VoiceFinder AP100 VoIP Gateway Installation Guide (Edition 1.0) AddPac Technology Co., Ltd. Floor Nos. 2/3/5, Jeong Am Bldg., 769-12, Yoksam-dong, Kangnam-ku, Seoul, Korea Phone: (02) 568-3848 (Rep.) Facsimile: (02) 568-3847 E-mail Address: info@addpac.com http://www.addpac.com 40 - 40 AddPac Technology Proprietary & Documentation...
