VoiceFinder AP200 VoIP Residential Gateway (RGW) User's Guide Version 1.1

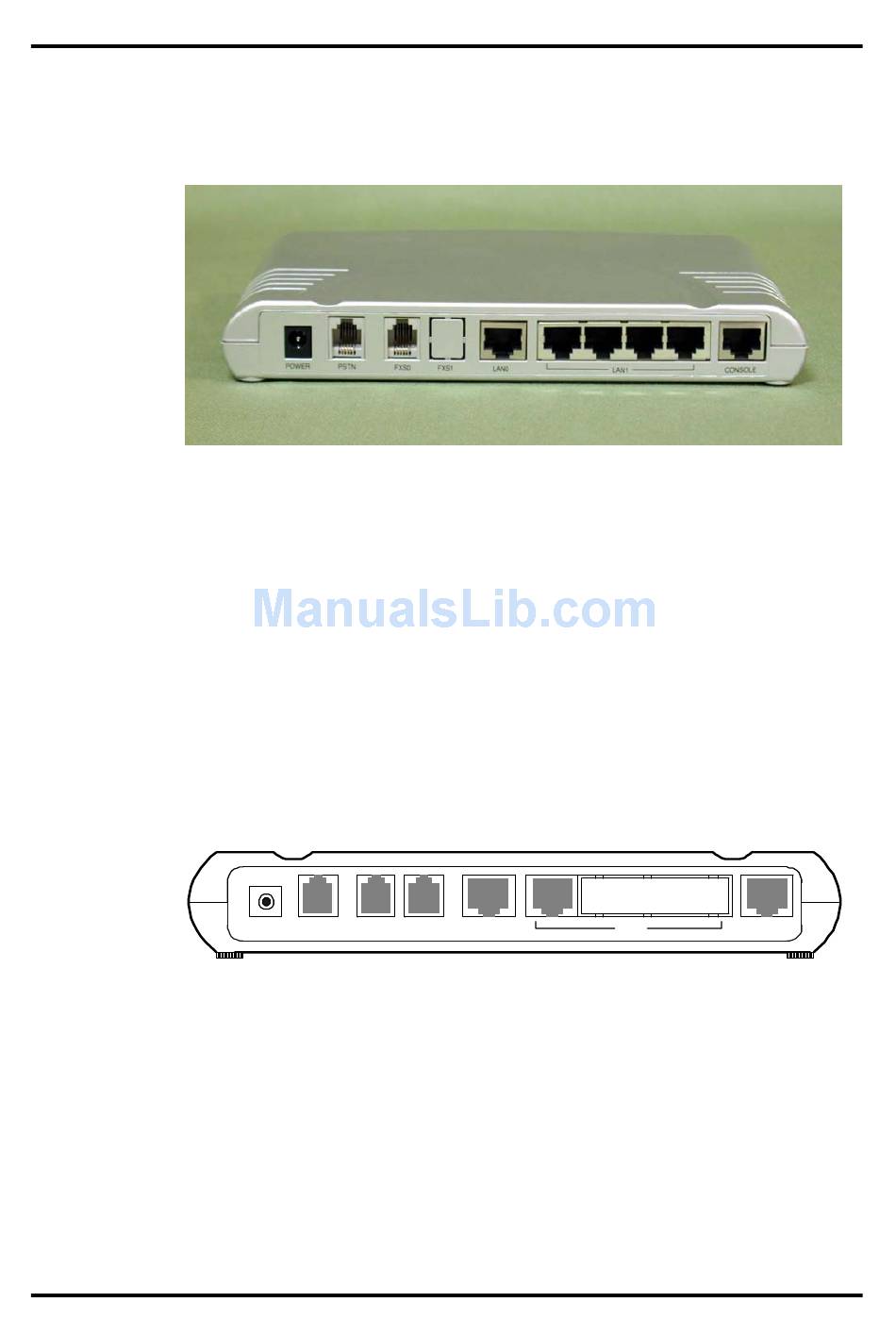

Following Figure 1-6 shows the Back panel interface picture of AP200 Model A
VoIP Residential Gateway.
[Figure 1-6 Back Side Panel Picture of VoiceFinder AP200 Model A VoIP RGW]
AP200-B Type Model
Figure 1-7 shows the "Type B" Interface configuration of AP200 VoIP Residential
Gateway. (AP200 Model B)
[Figure 1-7 Back Side Panel Diagram of VoiceFinder AP200 Model B VoIP RGW]
Following Table 1-3 explains the "Type B" interface of AP200 VoIP Residential
Gateway.
AddPac Technology Co.,Ltd.
Power PSTN FXS0 FXS1 LAN0 LAN1 CONSOLE
