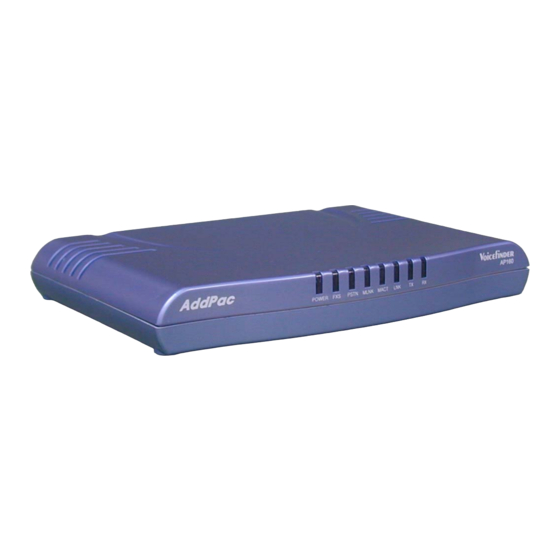

AddPac VoiceFinder AP 160 User Manual

Voip gateway
Hide thumbs Also See for VoiceFinder AP 160:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

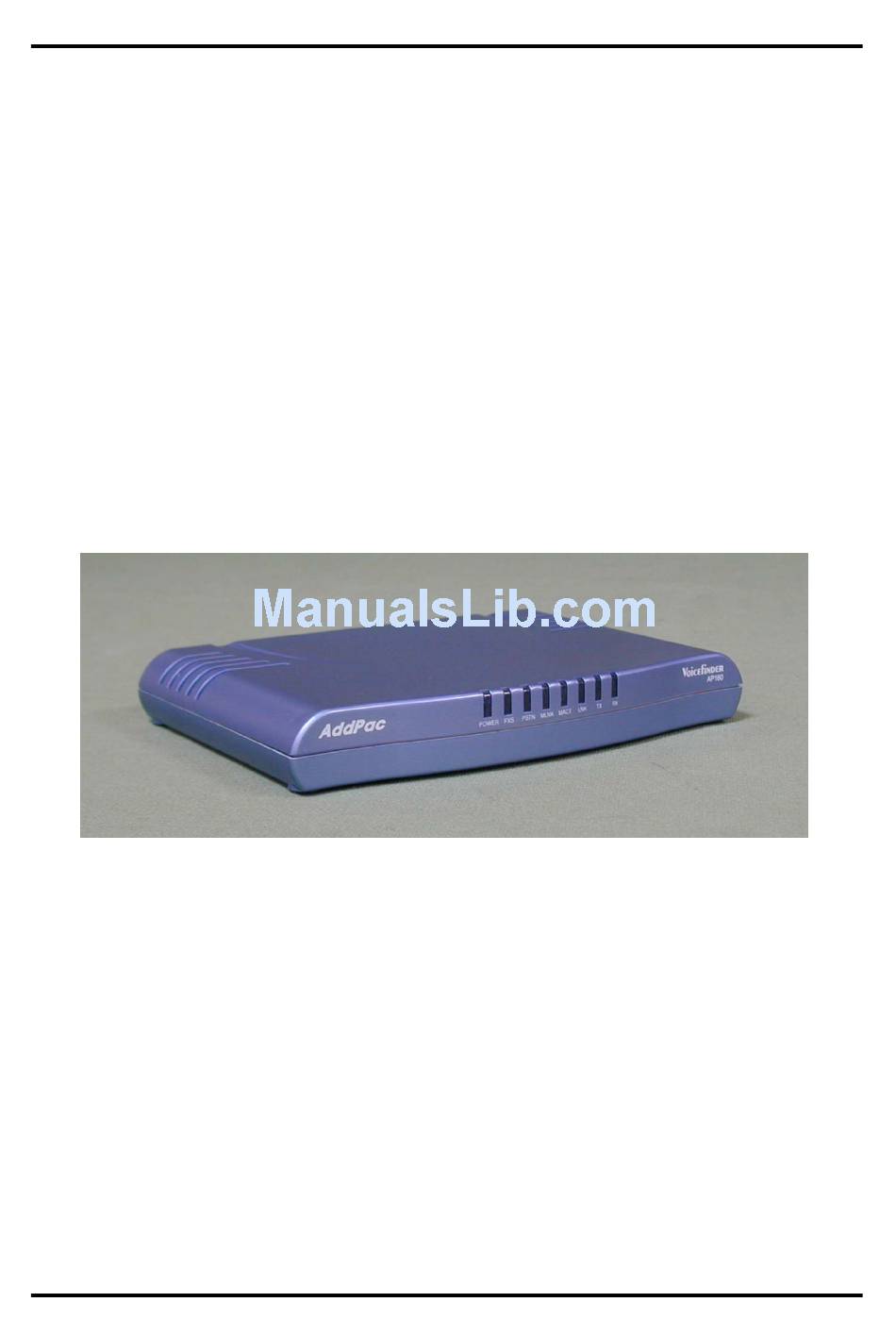

VoiceFinder AP200 VoIP Residential Gateway (RGW) User's Guide Version 1.1
VoiceFinder
AP160 VoIP Gateway
(Residential Gateway)
User's Guide
AddPac Technology, Co. Ltd.
2nd fl., Jeong-Am Building., 769-12 Yoksam-dong
Kangnam-ku Seoul, Korea 135-080
Phone (82 2)568-3848
Fax (82 2)568-3847
E-mail : info@addpac.com

http://www.addpac.com

1
AddPac Technology Co.,Ltd.
-
-

Advertisement

Table of Contents
loading

Related Manuals for AddPac VoiceFinder AP 160

Summary of Contents for AddPac VoiceFinder AP 160

  • Page 1: Http://Www.addpac.com

    VoiceFinder AP200 VoIP Residential Gateway (RGW) User’s Guide Version 1.1 VoiceFinder AP160 VoIP Gateway (Residential Gateway) User’s Guide AddPac Technology, Co. Ltd. 2nd fl., Jeong-Am Building., 769-12 Yoksam-dong Kangnam-ku Seoul, Korea 135-080 Phone (82 2)568-3848 Fax (82 2)568-3847 E-mail : info@addpac.com http://www.addpac.com...

  • Page 2: Table Of Contents

    User and Gateway Management Environment............. 35 3.2.2. Interface Configuration Environment ..............36 3.2.3. Routing Configuration Environment ................. 37 3.2.4. Security and Internet Configuration Environment..........37 3.2.5. System Status and Debugging Environment............37 3.2.6. Voice Integration Configuration Environment............38 AddPac Technology Co.,Ltd.
  • Page 3 Commands of the Manager Mode ................. 46 4.2.3. Commands of the Configuration Mode..............48 4.2.3.1. Global Configuration(config) Commands............48 4.2.3.2. Commands of the Async Interface(PSTN Modem) Configuration Mode .. 50 4.2.4. PPP Configuration ....................... 55 Appendix A VoiceFinder AP160 VoIP Gateway Technical Description...66 AddPac Technology Co.,Ltd.

  • Page 4: Getting Into The Voicefinder Ap160 User's Manual

    Chapter 4 『 Gateway Configuration and Commands』explains in detail about configuring the user Interface and the corresponding commands along with configuration examples. This chapter provides important information and requires comprehensive understanding. Appendix A 『 VoiceFinder AP160 Technical Specifications 』provides AddPac Technology Co.,Ltd.
  • Page 5 VoiceFinder AP200 VoIP Residential Gateway (RGW) User’s Guide Version 1.1 detail technical specifications for the VoiceFinder AP160 dial-up VoIP gateway. For technical support, please contact AddPac Technology Co. Ltd. AddPac Technology Co., Ltd 2nd Fl. Jeong-Am Bulding, 769-12 Yeoksam-Dong, Kangnam-Ku, Seoul, Korea...
  • Page 6 VoiceFinder AP200 VoIP Residential Gateway (RGW) User’s Guide Version 1.1 VoiceFinder AP160 dial-up VoIP gateway user’s manual’s revision history are as follows. Revision No. Date Contents Written By AddPac Version 1.0 Mar. 15. 2003 Initial Released R&D Part AddPac Technology Co.,Ltd.
  • Page 7 Caution This symbol calls for the user’s caution. Misuse in this procedure could result software damage equipment, loss of data or system configuration. Information Reference This symbol indicates reference, providing detail information for understanding the user manual. AddPac Technology Co.,Ltd.

  • Page 8: Chapter 1. Voicefinder Ap160 Overview

    VoIP gateway] This VoiceFinder AP160 dial-up VoIP gateway supports inter-operability completely with carrier-class backbone gateways including small-size VoIP gateways such as CISCO, Clarent, 3COM, Lucent, etc. Also, this equipment provides the CISCO-style APOS Router Series operation and management AddPac Technology Co.,Ltd.
  • Page 9 Translation) protocol. The local IP address can be hidden from outside world when NAT protocol is used in AP160 dial-up VoIP gateway. This means that AP160 dial-up VoIP gateway can be used as a security function terminal simultaneously. AddPac Technology Co.,Ltd.

  • Page 10: Main Features

    Moreover, VoiceFinder AP200 VoIP Gateway maintains best voice quality under low bandwidth traffic using the latest voice compression algorithm and enhanced QoS management features of AddPac Technologies. In addition, AP200 VoIP Gateway supports various network protocols such as IP routing, bridging, PPP, NAT/PAT, and network management features such as SNMP MIB v2, Web based Management, Cisco-Style CLI, etc.

  • Page 11: Voice Over Ip Service

    Support PBX side outbound call number Insertion in Calling Party Address. Support Voice Prompt for 1 Stage and 2 Stage Dialing Support Last digit recognition Call restriction about Specific Phone Number or Line Tone (Dial tone, Ring back tone, Busy tone, Congestion tone) AddPac Technology Co.,Ltd.
  • Page 12 High Performance IP routing capability with reliability Static, Default IP routing protocols Transparent Bridging (IEEE Spanning Tree Protocol) and VLAN routing protocols Network Managements VoiceFinder AP200 VoIP Residential Gateway supports various network management protocols and functions. Standard SNMP Agent (MIB v2) Support AddPac Technology Co.,Ltd.

  • Page 13: Security Functions

    VoiceFinder AP200 VoIP Residential Gateway supports various supplementary service functions. Network Address Translation (NAT) Function Port Address Translation (PAT) Function Cisco Style Command Line Interface(CLI) Network Time Protocol(NTP) Support Remote S/W Upgrade for APOS Management using FTP/TFTP AddPac Technology Co.,Ltd.

  • Page 14: Apos Internetworking Software

    VoiceFinder AP200 VoIP Residential Gateway (RGW) User’s Guide Version 1.1 1.3. APOS Internetworking Software Information This part explains about Software Architecture of APOS(AddPac VoiceFinder Operating System). APOS Internetworking Software for AP PassFinder Router, VoiceFinder Gateway APOS Operating System is a best VoIP Gateway and Router software to provide scalability, reliability, stability, and QoS for IP(Internet Protocol) based Inter-networking solutions.
  • Page 15 Easy to use, Easy to Installation, and Maintenance For easy installation and simple usability, APOS Operating Software supports simple maintenance and inter-operability using Cisco-Style command line interface. Moreover, it is possible to simple maintenance using web based management schemes and remote management functions AddPac Technology Co.,Ltd.

  • Page 16: Hardware Configuration And Network Interface

    To check the system operation status easily, AP160 VoIP dial-up gateway provides the front panel LED. Following Figure 1-3 and 1-4 shows the external form of front panel and represents the explanation of each parts. [Figure 1-3 Front Panel Picture of VoiceFinder AP160 dial-up VoIP gateway ] AddPac Technology Co.,Ltd.

  • Page 17: Rear View Of Ap

    An Ethernet port is used for VoIP service via WAN side such as xDSL, cable modem interface. Also this Ethernet port can be used for external modem application via LAN port of Personal Computer. Standard Configuration Model AddPac Technology Co.,Ltd.
  • Page 18 UP and NORMAL ports are not two LAN port. Therefore user should select one(1) LAN port type among UP and NORMAL LAN ports. (RJ45) Console RS-232C port for system management (RJ45) [Table 1-2 The explanation of back side panel Interfaces of AP160 dial-up VoIP gateway] AddPac Technology Co.,Ltd.
  • Page 19 VoiceFinder AP200 VoIP Residential Gateway (RGW) User’s Guide Version 1.1 Following Figure 1-6 shows the back panel interface picture of AP160 dial-up VoIP gateway. [Figure 1-6 Back side panel picture of VoiceFinder AP160 dial-up VoIP gateway] AddPac Technology Co.,Ltd.

  • Page 20: Network Interface

    1-Port 10Mbps Ethernet LAN Interface (RJ45) AP160 dial-up VoIP residential gateway supports the one(1) 10Mbps Ethernet Interfaces. Using this LAN Interface, various network application services are possible. This interface is implemented using standard RJ-45 connector interface. AddPac Technology Co.,Ltd.

  • Page 21: Voice Processing Interface

    PSTN call via PSTN backup port when the VoIP service via Internet is not available or network failure is occurred. When a special key such as “#” key is pressed at analog phone, AP160 relays analog phone that is connected to FXS port to PSTN line directly. AddPac Technology Co.,Ltd.

  • Page 22: Chapter 2. Before Installation

    Before unpacking, check for external damage of the packaging box . If an external damage of the packaging has been found, please contact AddPac Technology Co. Ltd. sales department (sales@addpac.com, tel : +82-2-568-3848) for an immediate exchange of product. If no external damage has found, confirm if the following items are enclosed.
  • Page 23 VoiceFinder AP200 VoIP Residential Gateway (RGW) User’s Guide Version 1.1 AP160 User Guide (This part will be omitted) [Table 2-1. VoiceFinder AP160 Package] If any item is missing, immediately contact AddPac Technology Co. Ltd. customer support AddPac Technology Co.,Ltd.

  • Page 24: Installation Requirements

    Avoid operating the equipment alone at a potentially dangerous environment. Do not assume the power is switched off, but always confirm the power status. Be extremely cautious when operating in a humid environment or with an uncovered power extension cable. AddPac Technology Co.,Ltd.

  • Page 25: General Requirements

    A level and well ventilated location is recommended. Secure the equipment safely where intended to install. Avoid placing objects on top of the equipment. Install the equipment in a cool location avoiding direct sunlight. Maintain distance from flammable, chemical, or magnetic objects AddPac Technology Co.,Ltd.

  • Page 26: Prerequisites For Network Connection

    커넥터 인터페이스를 장비의 후면부에 가지고 있고 이 포트를 통하여 AP160의 Initial Configuration등을 하거나 장비를 모니터링하고 디버깅하는데 사용할 수 있습니다. 이 포트를 이용하여 장비를 관리하는 경우에는 규정된 케이블과 커넥터를 사용하시기 바랍니다. RS-232C Console 케이블에 대한 PIN 사양은 부록 AddPac Technology Co.,Ltd.
  • Page 27 VoiceFinder AP200 VoIP Residential Gateway (RGW) User’s Guide Version 1.1 C의 Cable 사양을 참조하십시오. AddPac Technology Co.,Ltd.

  • Page 28: Chapter 3. Gateway Installation And Operation

    Cable for connecting with phone port RJ-11 to RJ-11 ordinary phone-line cable PC with Console Terminal or Communication Emulator application (The Hyper Terminal Program in Windows will suffice. Configure as : 9,600 Baud, No Parity, 8Bit Data 1Stop Bit) AddPac Technology Co.,Ltd.

  • Page 29: Installation

    Save the settings on Flash Memory. (VoiceFinder AP160 immediately operates under the new settings, but under certain network environments rebooting is required.) (Refer to the following instructions for this part.) Using commands such as Ping, Telnet, rlogin etc. check the status of other AddPac Technology Co.,Ltd.

  • Page 30: Console Connection

    When configuring the Hyper Terminal, select the Hyper Terminal menus in the following order: File Configuration Connection Target Format and set each item. The console port serves the purpose of configuring the VoiceFinder AP160 Gateway settings and checking its operating status. AddPac Technology Co.,Ltd.
  • Page 31 Port Connector [Fig 3.1 RS-232C Console Cable Connection] Port Configuration Settings Modem to Connect Direct connection(Null Modem) to Com port Bit per Second 9,600 Data Bit Parity None Stop Bit Flow Control None [Fig 3.2 Hyper Terminal Configuration] AddPac Technology Co.,Ltd.

  • Page 32: Plug-In Power

    The completion of log-in will display the prompt “1router#” on the Gateway console terminal. There are two types of prompts displayed for the VoiceFinder AP200 : “1router>” and “1router#”. The “ > ” prompt indicates that the user is AddPac Technology Co.,Ltd.
  • Page 33 The display below is the message for initial booting of the VoiceFinder AP160 gateway. System Bootstrap, Version 1.2 Decompressing the image: #############[OK] System Boot Loader, Version 2.0.2/HDT Copyright (c) by AddPac Technology Co., Ltd. Since 1999. System Bootstrap, Version 1.2 Decompressing the image: ##################################################### #####################################################[OK] VoiceFinder Gateway Series (AP160)

  • Page 34: Environment Configuration

    Environment configuration is required only once at initial installation. But when the network components have changed, settings must be reconfigured. At completion of configuration, users always save the settings to prevent loss of data when switching the power on or off. AddPac Technology Co.,Ltd.

  • Page 35: User And Gateway Management Environment

    “admin” level access.) When the gateway configuration is completed, a change of password is advised. This is to prevent unauthorized users from reconfiguring the settings. The VoiceFinder AP160 gateway saves the password and the configuration in safety area. AddPac Technology Co.,Ltd.

  • Page 36: Interface Configuration Environment

    The Interface configuration mode, allows traffic management of particular packets per interface. For security related Access-List, DHCP information, refer to the “Configurations for Security and Internet” section. For packet management information, refer to the “Configurations for Routing” section. AddPac Technology Co.,Ltd.

  • Page 37: Routing Configuration Environment

    DHCP, registered user, buffers and all others assisting proper operation of the Gateway. The “debug” command provides information regarding proper operation of the Gateway by displaying operating TCP/IP or Layer 2 on the terminal screen. For more details, refer to Chapter 4. AddPac Technology Co.,Ltd.

  • Page 38: Voice Integration Configuration Environment

    / connection, voice gateway configuration, quality of voice control, PABX connection configuration, and other configuration / status report of voice related. For detail information, refer to Chapter 5 “Voice Configuration and Related Commands”. AddPac Technology Co.,Ltd.

  • Page 39: Chapter 4. Gateway Configuration And Commands

    However, if there is no configuration information, the gateway operates according to the default values, and in this case, the operator shall set up related items for normal operation of the network. AddPac Technology Co.,Ltd.
  • Page 40 If the system is normally booted, the following message will appear. System Bootstrap, Version 1.2 Decompressing the image: #############[OK] System Boot Loader, Version 2.0.2/HDT Copyright (c) by AddPac Technology Co., Ltd. Since 1999. System Bootstrap, Version 1.2 Decompressing the image: ####################################################### ####################################################[OK]...
  • Page 41 VoiceFinder AP200 VoIP Residential Gateway (RGW) User’s Guide Version 1.1 Copyright (c) by AddPac Technology Co., Ltd. Since 1999. Voice Module type (0): FXS DSP S/W download (0): .. OK The System is ready. Please login to system. login: Interface async0, changed state to UP Interface ethernet0.0, changed state to UP...

  • Page 42: Command Usage

    The VoiceFinder AP160 dial-up VoIP gateway provides "More" function that divides a long message into several messages so that the operator can see the whole message by scrolling the screen. The VoiceFinder AP160 dial-up VoIP gateway provides Help and “?” AddPac Technology Co.,Ltd.
  • Page 43 : Add an access list entry : Remove a static ARP entry bridge : Set bridge Parameter to default value dhcp-list : Configure list entry ethernet : Configure Ethernet hostname : Set system's network name interface : Select an interface to configure AddPac Technology Co.,Ltd.
  • Page 44 : Build a custom queue list route : Establish static routes router : Enable a routing process service : Modify use of network based services snmp : Set SNMP community/configuration information user : Remove Gateway user utilization : System resource using information AddPac Technology Co.,Ltd.

  • Page 45: Commands Of The User Mode

    Traces the path the packet passes through to reach the traceroute destination. Adds a gateway user or shows user information of the Gateway. With this command, the current user cannot user check information of the user who has higher authority than him/herself. AddPac Technology Co.,Ltd.

  • Page 46: Commands Of The Manager Mode

    Logs out the operator from the Gateway. help Explains command-using method in an interactive way. history Shows history of the used command lines. VoIP related command. Loads the VoIP configuration load script file to the VoIP Configuration of the Gateway. AddPac Technology Co.,Ltd.
  • Page 47 Saves the Gateway configuration file. undebug Stops execution of “debug” command. Adds a Gateway user or shows user information of the Gateway. With this command, the current user cannot user check information of the user who has higher authority than him/herself. AddPac Technology Co.,Ltd.

  • Page 48: Commands Of The Configuration Mode

    A configuration command to use the IP account. Adds or deletes a certain Ethernet address in the ARP table. bridge Sets bridge related items. clock Sets system time of the Gateway. debug-port Display debug message into remote telnet terminal. AddPac Technology Co.,Ltd.
  • Page 49 Registers or changes gateway users. An optional command to set time intervals to check utilization availabilities of the CPU, the Ethernet and the serial. voice Sets VoIP Service or Available Codecs. voice-port Sets the VoIP port. voip-interface Sets the VoIP Interface. AddPac Technology Co.,Ltd.

  • Page 50: Commands Of The Async Interface(Pstn Modem) Configuration Mode

    Modem interface’s dialing parameter setting commands do-script Modem script running commands This commands keep the modem interface of AP160 alive keep-active or always connected mode script This command is used for the registration of modem script AddPac Technology Co.,Ltd.

  • Page 51: Script Commands

    AT command for the modem connection (example : dialer ATDT9W1231234) Default : none AT command for the termination of modem connection hangup mode Default : "+++ATH" AT command for the modem reset reset Default : "ATZ" startup AT command for the modem initialization AddPac Technology Co.,Ltd.
  • Page 52 Default: interval : 6 sec Timeout count : 3 Ipcp PPP IPCP option parameter setting Default: ms-dns, default-router PPP PAP authentication parameter setting Default: none peer PPP peer default ip address setting Default: none timeout PPP negotiation timeout setting AddPac Technology Co.,Ltd.
  • Page 53 PPP chap parameter Commands Commands Description PPP CHAP hostname setting hostname Default: none PPP CHAP password setting password Default: none 4.2.3.2.4.4. PPP compression parameter Commands Commands Description Protocol field Compression setting Default: enabled acfc Address and Control Field Compression setting AddPac Technology Co.,Ltd.
  • Page 54 Default: 3 4.2.3.2.4.6. PPP IPCP parameter Commands Commands Description IPCP option field to get default router information from Default-router Server . Default: enabled IPCP option field to get DNS information from Server . ms-dns Defaule: enabled AddPac Technology Co.,Ltd.

  • Page 55: Ppp Configuration

    Handshake Authentication Protocol) authentication option that uses PAP(Password Authentication Protocol) and the magic number configuration option. Software always sends the magic number configuration option. However, software sends the authentication option only when the authentication option is set. AddPac Technology Co.,Ltd.
  • Page 56 Enters into the async interface configuration mode For a detailed command usage, please refer chapter “4.2.3.2.2 Modem commands” encapsulation { ethernet / ieee / vlan / ppp } Selects the modem encapsulation mode among above listed encapsulation mode AddPac Technology Co.,Ltd.
  • Page 57 PPP server device when using PPP CHAP authentication. optional command CHAP authentication) If this command is not used, the router name (displayed in the router prompt) will be considered as the user name. AddPac Technology Co.,Ltd.
  • Page 58 An optional command to make the current interface up/down. show interface <if-name> Shows the interface status of “if-name.” show modem Shows the modem control status of async 0 interface Using this command, a user check the configuration of async 0 interface. AddPac Technology Co.,Ltd.
  • Page 59 4. “Negotiation” option decodes LCP and NCP protocol to set the PPP link. 5. “Packet” option decodes PPP low level packets. debug async modem 0 <cr> Using this debug command, a user monitors the status machine of async 0 interface. AddPac Technology Co.,Ltd.
  • Page 60 ☞ Sets the PPP authentication mode as PAP for the async 0 interface. ppp pap sent-username addpac password 12345678 ☞ Registers the user name (addpac) and the password (12345678) with the normal priority in the server. ppp compression pfc ☞ Enable the PPP compression type PFC ppp compression acfc ☞...
  • Page 61 AP160(config-async0)# ppp authentication pap ☞ Sets the PPP authentication mode as PAP for the async 0 interface. AP160(config-async0)# ppp pap sent-username ADDPAC password 12345678 ☞ Sends the user name and the password that were saved in the server during PPP connection.
  • Page 62 LCP: I ECHOREP id=0 d07f37aa voip_line_up Line protocol on interface async0, changed state to UP voip_line_up async0 PAP: I AUTHACK id=3 msg = async0 IPCP: O CONFREQ id=3 addr 0.0.0.0 ms-dns 0.0.0.0 ms-dns 0.0.0.0 async0 IPCP: REQSENT AddPac Technology Co.,Ltd.
  • Page 63 IPCP: O CONFACK id=4 addr 168.126.0.233 async0 IPCP: I CONFACK id=4 addr 210.222.41.217 ms-dns 168.126.63.1 ms-dns 168.126.63.2 Address Primary 168.126.63.1 Secondary 168.126.63.2 async0 IPCP: UP AP160 # no debug ppp packet ☞ Stops PPP packet debugging AddPac Technology Co.,Ltd.
  • Page 64 ☞ Sets the PPP authentication mode as CHAP for the async 0 interface. AP160(config-async0)# ppp chap hostname ADDPAC ☞ If the user name that was saved in the server during PPP CHAP connection is different from the user name of the client router, this command sends the user name of the server side.
  • Page 65 VoiceFinder AP200 VoIP Residential Gateway (RGW) User’s Guide Version 1.1 AddPac Technology Co.,Ltd.

  • Page 66: Appendix A Voicefinder Ap160 Voip Gateway Technical Description

    G.723.1 MP-MLQ, 6.3Kbps, 5.3Kbps Vocie Compression G.729.A CS-ACELP, 8Kbps G.711 PCM, 64Kbps Voice Activity Detection (VAD) T.38 Real Time Protocol(In band, Out Band Mode) Voice Processing Dual Tone Multi Frequency (DTMF) Comfort Noise Generation (CNG) Echo Cancellation AddPac Technology Co.,Ltd.
  • Page 67 Dynamic Host Configuration Protocol (DHCP) Server DHCP and Relay Functions PPPoE (Static IP, Dynamic IP) ADSL Network Address Translation (NAT) Protocol NAT/PAT Port Address Translation (PAT) Protocol IEEE Standard Spanning Tree Bridging Protocol Bridging Remote Bridging Support Concurrent Bridging Support AddPac Technology Co.,Ltd.

  • Page 68: Hardware Specification

    DC External Power Supply (5V x 1.2A) Power Requirement 5 Watt Operating Temperature 0°C ~ 55°C Storage Temperature -40°C ~ 85°C Relative Humidity 5% ~ 95% Cooling Method Natural Air Cooling Depth x Width x Height 26mm x 200mm x 137mm Weight 400g AddPac Technology Co.,Ltd.
