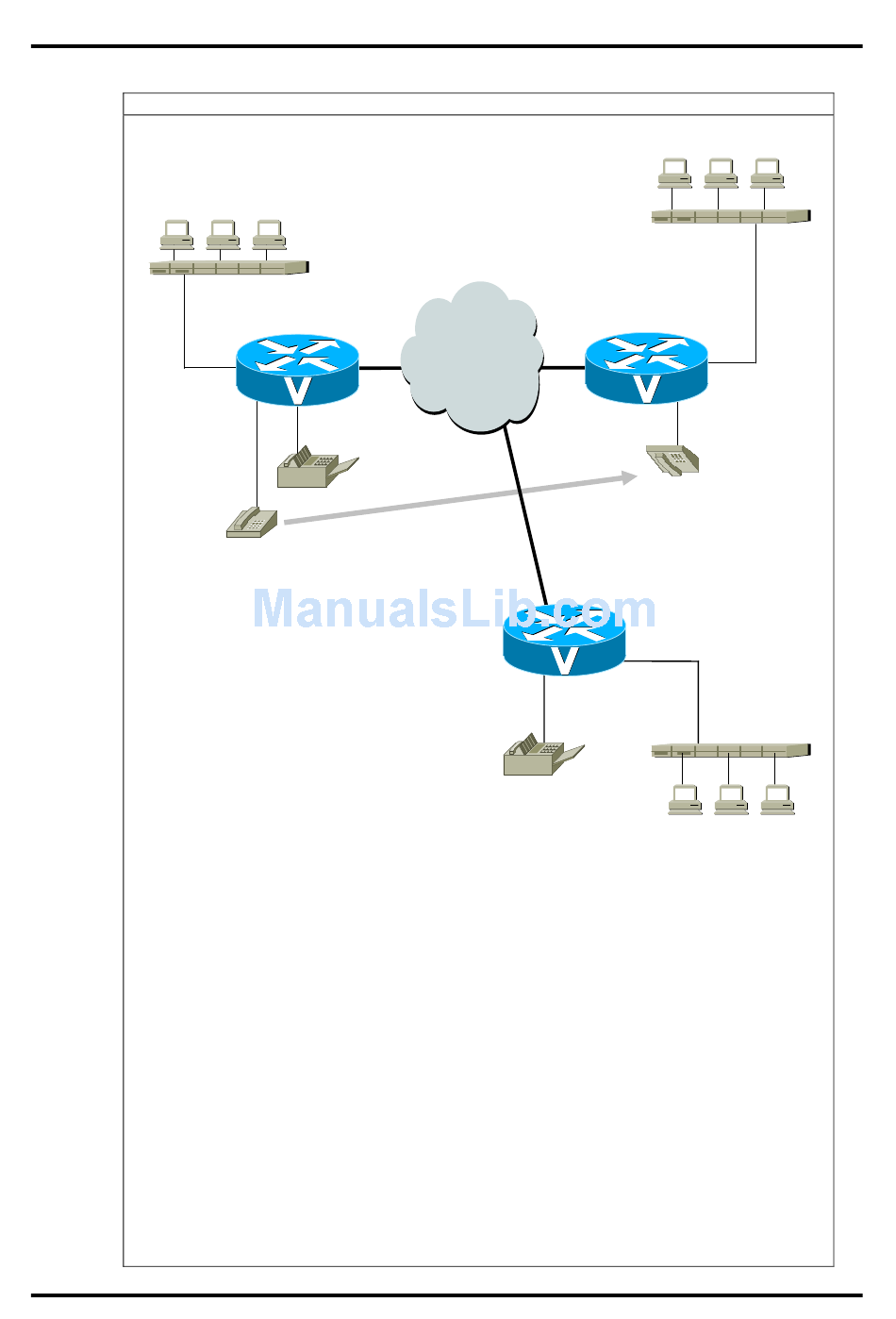

Configuration 3 - FXS-to-FXS Connection example using PLAR mode
E0.0
10.10.10.1
Phone A
Dial Peer 101 POTS
Voice PORT 0/1
Destination 101
AP200-A configuration
Step 1,2,3,4 are same to configuration 1
Step 4-1) PLAR (Private Line Auto Ringdown) Configuration
Gateway(config)# voice-port 0/1
Gateway(config-voice-ports-0/1)# connect plar 200
Step 5) configuration 확인
Gateway# sh voice port 0/1
Voice port slot(0)/port(1)
line type = FXS
status = LineFree
input gain = 0 db
output gain = 0 db
ring frequency = 25 Hz
PLAR = 200
description =
associated call number = -1
AddPac Technology Co.,Ltd.
AP200-A
S0
FXS
Fax A
Dial Peer 100 POTS
Voice PORT 0/0
Destination 100
AP200-B
S0
IP
Network
PLAR
S0
AP200-C
FXS
Fax C
Dial Peer 300 POTS
Voice PORT 0/0
Destination 300
LAN HUB
E0.0
20.20.20.1
FXS
Phone B
Dial Peer 200 POTS
Voice PORT 0/0
Destination 200
E0.0
30.30.30.1
