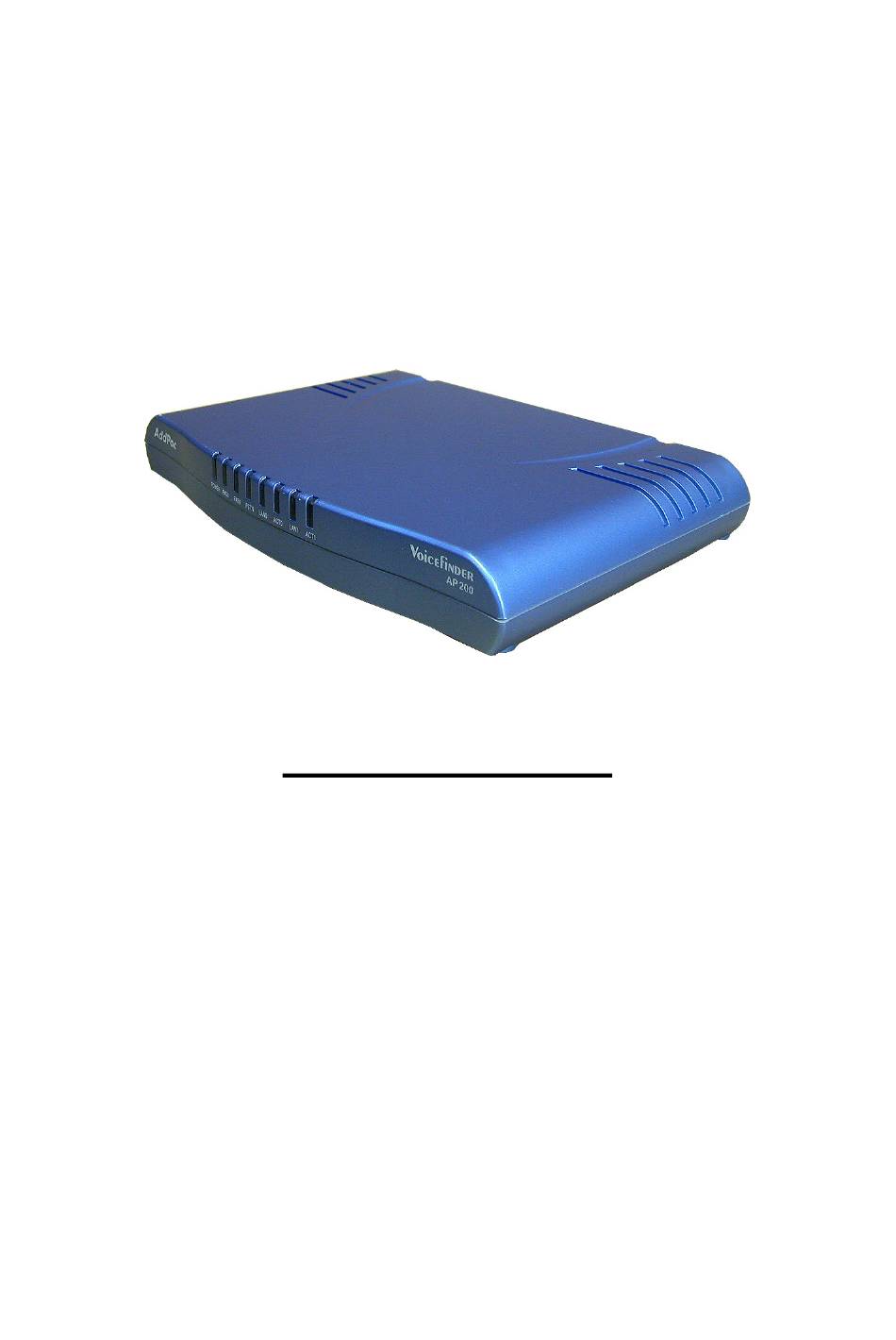

- Page 1 VoiceFinder AP200 VoIP Residential Gateway Installation Guide Release 1.0 June. 2003 AddPac Technology Co., Ltd. 2/ 3F, Jeong-Am Bldg, Kangnam-Gu, Seoul, Korea. Zip 135-080 Phone (82 2) 568-3848 Fax (82 2) 568-3847 E-mail: info@addpac.com http://www.addpac.com...
- Page 2 VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 AddPac Technology Co., Ltd.
-
Page 3: Table Of Contents
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 [Contents] About This Guide Chapter 1. VoiceFinder AP200 Overview ....................11 Introduction to VoiceFinder AP200 Gateway................... 11 Main Features .............................13 Hardware Description ........................13 Voice over IP Service........................14 IP Routing Protocols ........................14 Network Managements .........................15... - Page 4 VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 FXO Interface Connection ......................32 VoiceFinder AP200 Interface connection example ...............33 Booting..............................34 Use Console terminal with HyperTerminal..................36 Chapter 4. Appendix ..........................42 VoiceFinder AP200 Gateway Technical Description...............42 Cable Specification ..........................45 AddPac Technology Co., Ltd.
- Page 5 VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 [Table of Figures] Figure 1-1: The network diagram using VoiceFinder AP200 Gateway ............11 Figure 1-2: The exterior view of VoiceFinder AP200 Gateway ..............12 Figure 1-3: VoiceFinder AP200 Gateway front view..................17 Figure 3-1: Connect VoiceFinder AP200 Gateway and Console PC ............29...
- Page 6 VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 [Table of Tables] Table 1-1: The interfaces and explanation of the front panel of AP200 ............18 Table 1-2: The interfaces and explanation of the rear panel of AP200 Gateway ........19 Table 1-3: Interfaces of VoiceFinder AP200 models ...................21 Table 3-1: VoiceFinder AP200 Gateway package ..................28...
-
Page 7: About This Guide
Guide and explains the symbols and legends. [Organization] The VoiceFinder AP200 VoIP Gateway Installation Guide is offered to assist the operation VoiceFinder AP200 VoIP Gateway. This manual is composed of 4 chapters. Experienced users may refer directly to the related chapters. - Page 8 VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 For technical supports, please contact AddPac Technology Co. Ltd. AddPac Technology Co., Ltd 2/ 3 Fl. Jeong-Am Bulding, 769-12 Yeoksam- Dong, Kangnam-Ku, Seoul, Korea Phone (02) 568-3848 Fax (02) 568-3847 E-mail: info@addpac.com http://www.addpac.com...
- Page 9 VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 The revision history of VoiceFinder AP200 VoIP Gateway Installation Guide is as follows. Revision No. Date Comments Written by AddPac Version 1.0 June 2003 Edition R&D Center AddPac Technology Co., Ltd.
- Page 10 VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 [Symbols and Legends] The symbols and legends used in this User’s Manual are as follows: Commands and Keywords are typed in Bold. Variables that require user inputs are typed in Italic.
-
Page 11: Chapter 1. Voicefinder Ap200 Overview
Area Networks, Wide Area Network or broadband network of ADSL and DOCSIS (Cable). The below is the network diagram using VoiceFinder AP200 Gateway. Figure 1-1: The network diagram using VoiceFinder AP200 Gateway It supports static Route standard routing protocol and IEEE Spanning Tree Bridging function and it can be used for routing of small-scale networks. -
Page 12: Figure 1-2: The Exterior View Of Voicefinder Ap200 Gateway

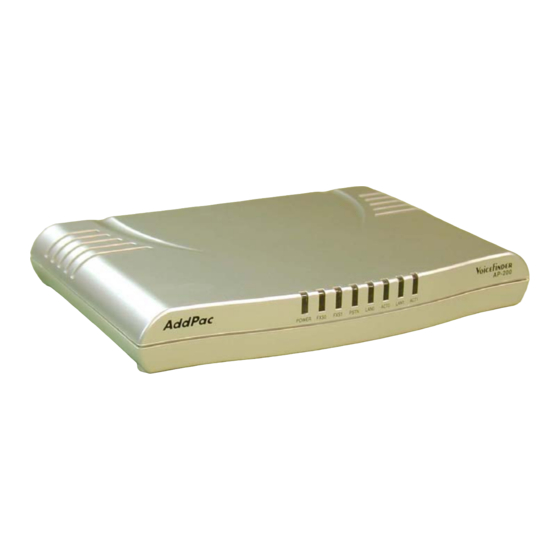

VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 The below figure is the exterior view of VoiceFinder AP200 Gateway. Figure 1-2: The exterior view of VoiceFinder AP200 Gateway As a supplementary service, VoiceFinder AP200 Gateway provides Packet Filtering and Firewall function using an Access List method. The Firewall function restricts... -
Page 13: Main Features
Internet subscribers of ADSL and cable modem. Also, VoiceFinder AP200 Gateway is easy to install and operate, even for first time users and offers static and default routing function. It is the most economic and effective solution for high-speed Internet access VoIP residential gateway. -
Page 14: Voice Over Ip Service
Interoperable with H. 323 based Gateways and Gatekeepers Interoperable with SIP Proxy Servers Interoperable with MGCs IP Routing Protocols VoiceFinder AP200 Gateway supports various IP routing protocols. The main IP routing features are followings. Supports various IP routing and bridging protocol Static, Default IP routing protocols Transparent Bridging (IEEE Spanning Tree Protocol) AddPac Technology Co., Ltd. -
Page 15: Network Managements
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Network Managements VoiceFinder AP200 Gateway supports various network management protocols and functions. Standard SNMP Agent (MIB v2), MIB II, Bridge MIB Support Consol function with Async. Port. Remote Management using Console, Rlogin, Telnet. -
Page 16: Operation And Managements
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Operation and Managements VoiceFinder AP200 Gateway supports following operation and maintenance features. System Performance Analysis for Process, CPU, Connection I/F Configuration Backup & Restore for APOS Managements Debugging, System Auditing, and Diagnostics Support... -
Page 17: Hardware Configuration And Network Interface
Gateway. VoiceFinder AP200 Gateway Part & Description VoiceFinder AP200 Gateway is made by the high intensity ABS with compact design. The front panel of VoiceFinder AP200 Gateway includes various LEDs indicating the operational status of the device. On the rear panel, there is a LAN0 interface for WAN connection and LAN1 interface for LAN connection. -
Page 18: Table 1-1: The Interfaces And Explanation Of The Front Panel Of Ap200
Display the TX/RX status of LAN0 port. (Active Orange) LAN1 Display the operation status of LAN1 port.(Active Green) ACT1 Display the RX/TX status of LAN1 port. (Active Orange) ※ The LEDs on the front panel are vary by each VoiceFinder AP200 Gateway models. AddPac Technology Co., Ltd. -
Page 19: Rear View Of Ap200
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Rear View of AP200 The rear side of the VoiceFinder AP200 VoIP Gateway includes 10Mbps Ethernet Interface for WAN/LAN interface, PSTN port, RS-232C serial port for management, and FXS/ FXO interface port for voice signal processing. - Page 20 VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Following figures show the back panel interface pictures of VoiceFinder AP200 Gateway. Figure 1-5: The real panel of VoiceFinder AP200B model Figure 1-6: The real panel of VoiceFinder AP200C model Figure 1-7: The rear panel of VoiceFinder AP200D model Figure 1-8: The rear panel of VoiceFinder AP200E model AddPac Technology Co., Ltd.
-
Page 21: Table 1-3: Interfaces Of Voicefinder Ap200 Models
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Table 1-3: Interfaces of VoiceFinder AP200 models Model Ethernet PSTN Console AP200-B 2 x 10Mbps None AP200-C 2 x 10Mbps None 2 x 10Mbps None None AP200-D 2 x 10Mbps None AP200-E AddPac Technology Co., Ltd. -
Page 22: Network Interface
1 Port 10Mbps Ethernet Interface for LAN 1 Port RS232C Asynchronous Serial Interface With the above network interface, VoiceFinder AP200 Gateway can establish WAN and LAN network supporting TCP/IP network protocol. So it can easily form VoIP network on the broadband network of ADSL and Cable Modem. Also, the Console port offers easy configuration of the gateway. -
Page 23: Voice Processing Interfaces
FXS Interface voice processing port FXO Interface voice processing port PSTN Backup port for PSTN connection VoiceFinder AP200 Gateway is a network device offers not only data service, but also voice service at one device. 1~2 Port FXS Voice Interface VoiceFinder AP200 Gateway supports one (1) or two (2) Port FXS (Foreign Exchange Station) Voice Interface. -
Page 24: Chapter 2. Before Installation
Ensure VoiceFinder AP200 Gateway is in a dust-free environment before and after installation. Make sure to open VoiceFinder AP200 Gateway cover on a flat and safe surface. To prevent accidents, be careful with ties, scarf, sleeves, and any other loose clothing from entangling with the chassis. -
Page 25: General Requirements
If no wrist strap is available, earthening by holding a metal part of the Chassis will help prevent static electricity. General Requirements VoiceFinder AP200 Gateway is ready for use where other electronic products can be Warning used. However, the following conditions are recommended for maximum performance. -
Page 26: Network Connection Requirements
Consider EMI Standard and distance limitation while installing VoiceFinder AP200 Warning Gateway. The below explains PSTN cable, Ethernet cable, Console Cable of VoiceFinder AP200 Gateway. Necessaries Unless ordered in advance, the tools and certain cables are not provided in the package. -
Page 27: Ethernet Port
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Ethernet Port VoiceFinder AP200 Gateway offers two (2) RJ45 type 10BaseTX Ethernet Ports on the rear panel and LEDs are indicating the port status are on the front panel. The PIN information of the Ethernet cable, refer to Chapter 4. -
Page 28: Chapter 3. Gateway Installation
Item Contents Q’ty VoiceFinder AP200 Gateway Main Body Ethernet Cable (RJ45 to RJ45) Console Cable (RJ45 to DB9) Power supply External Adapter (110V/220V) If any item is missing, immediately contact AddPac Technology Co. Ltd. customer support. AddPac Technology Co., Ltd. -
Page 29: Voicefinder Ap200 Interfaces And Cable Connection
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 VoiceFinder AP200 Interfaces and Cable connection Install VoiceFinder AP200 Gateway at the suitable place illustrated at Chapter 2. Async Serial Interface Connection Connect RJ45 connector of RS-232C serial console cable to the Console port and connect the other side of the cable at the serial port of the PC. -
Page 30: Ethernet Interface Connection
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Ethernet Interface Connection With RJ45 UTP cable, connect LAN0 port of VoiceFinder AP200 Gateway and LAN interface of the WAN equipment. Also, connect LAN1 interface of the gateway with LAN interface of the user PC. -
Page 31: Fxs Voice Interface Connection
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 FXS Voice Interface Connection Connect FXS port to an analog phone with RJ11 cable. Figure 3-3: Connect VoiceFinder AP200 Gateway and a normal telephone PSTN Interface Connection Connect the PSTN line to the PSTN port with RJ11 cable. -
Page 32: Fxo Interface Connection
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 FXO Interface Connection Connect FXO Interfaces to PBX (Private Branch eXchange) with RJ11 cable. Applicable to the models supporting FXO Interface. Figure 3-5: Connect VoiceFinder AP200 Gateway and PBX AddPac Technology Co., Ltd. -
Page 33: Voicefinder Ap200 Interface Connection Example
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 VoiceFinder AP200 Interface connection example The below figure is the interface connection example of VoiceFinder AP200 Gateway. PSTN Analog Phone (IP Network) Figure 3-6: The example of interface connection AddPac Technology Co., Ltd. -
Page 34: Booting
Booting When power is supplied, the system is booted as described below VoiceFinder AP200 Gateway performs a self-test and checks basic operations of the CPU, the memory and interfaces. The boot loader is executed, and the boot loader seeks for proper software image files. - Page 35 VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Danger After connecting all the interfaces, supply the power to VoiceFinder AP200 Gateway. Turn on the power after connecting the power adapter to VoiceFinder AP200 Gateway. Do not connect the adapter to the power supply before connecting it to the gateway.
-
Page 36: Use Console Terminal With Hyperterminal
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Use Console terminal with HyperTerminal To use a PC as a Console terminal, the communication emulator application should be installed. When the PC is MS-Windows line, use the HyperTerminal Application. Figure 3-7: MS-Windows Communication Emulator HyperTerminal... -
Page 37: Figure 3-8: Assign A Name For The New Connection
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Assign a name to the connection. “AddPac” is used at the below example. Figure 3-8: Assign a name for the new connection AddPac Technology Co., Ltd. -
Page 38: Figure 3-9: Select The Interface For Console Cable
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Select the interface whether the Console cable is connected. Typically, the Console cable is connected to the RS-232C 9Pin Serial Port, so select the right port according to the user environment. “COM1” is selected at the below example. -
Page 39: Figure 3-10: Com1 Properties
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Set the port information. The below examples is based on “COM1” port. Figure 3-10: COM1 Properties AddPac Technology Co., Ltd. - Page 40 VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 After the configuration, press “Enter” button, then the below message will be displayed on the HyperTerminal. This message shows the routing S/W version, Gateway H/W test result, memory and etc. System Boot Loader, Version 1.3.6/1 Copyright (c) by AddPac Technology Co., Ltd.
-
Page 41: Figure 3-11: The Hyperterminal Message Of Voicefinder Ap200 Gateway
After the log-in process, the prompt “router#” is displayed on the console terminal. There are two types of prompts used for VoiceFinder AP200 Gateway: “router>” and “router#”. The “ > ” prompt indicates that the user is not an administrator. With this prompt, the user is unable to use certain commands: particularly the configuration commands. -
Page 42: Chapter 4. Appendix
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Chapter 4. Appendix VoiceFinder AP200 Gateway Technical Description This Chapter explains the supported Technical Specification of VoiceFinder AP200 VoIP Gateway. (* means that the item is not yet implemented.) IP Routing Service... - Page 43 VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Dual Tone Multi Frequency (DTMF) Comfort Noise Generation (CNG) Echo Cancellation Network Managements SNMP Standard SNMP Agent MIB v2 Web Based Management using HTTP Server Interface Traffic Queuing Others Frame-Relay Flow Control...
- Page 44 VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Other Scalability Features Dynamic Host Configuration Protocol (DHCP) Server and DHCP Relay Functions Network Address Translation (NAT) Protocol NAT/PAT Port Address Translation (PAT) Protocol IEEE Standard Spanning Tree Bridging Protocol Bridging...
-
Page 45: Cable Specification
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 Cable Specification This Appendix provides information about the Pinout specifications of the following cables used with VoiceFinder AP200 Gateway. Console Port Signal and Pinout (RJ-45 to DB9) Ethernet Cable Assemble (RJ-45 to RJ-45) Pinout [Console Port Signal &... -
Page 46: Figure 4-1: 10Base-T Rj-45 Connector
VoiceFinder AP200 VoIP Residential Gateway Installation Guide Version 1.0 [Ethernet Cable Assemble (RJ-45 to RJ-45) Pinout] In order to connect the gateway with other equipments (i.e. HUB), the RJ-45 to RJ-45 Ethernet Cable is used. The RJ-45 Connector Pin sequence is provided below and the transferred signal and Pinout specifications are enlisted at the below table.
