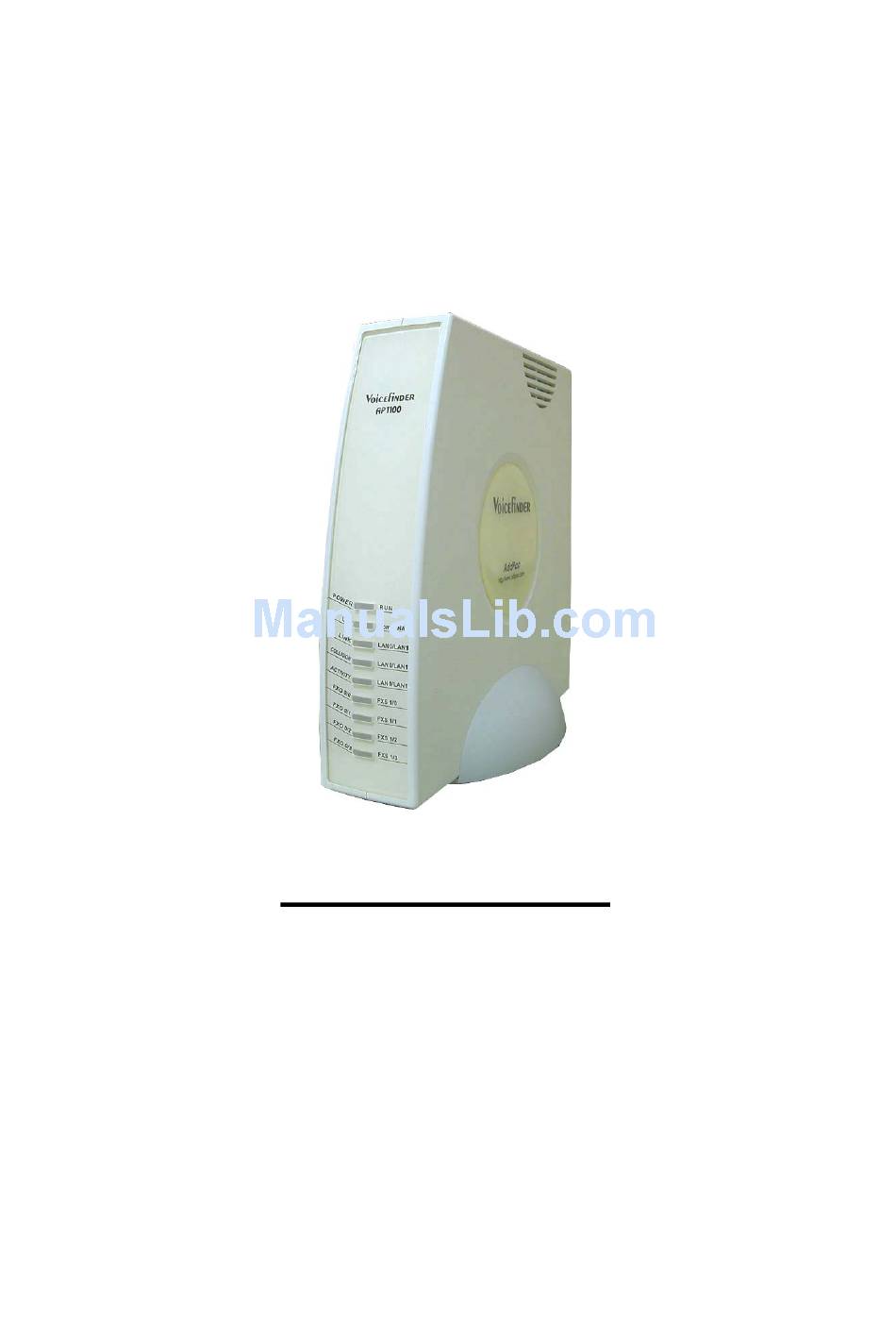

Page 1: Voip Gateway
VoiceFinder AP1100 VoIP Gateway Installation Guide Release 1.0 June. 2003 AddPac Technology Co., Ltd. 2/ 3F, Jeong-Am Bldg, Kangnam-Gu, Seoul, Korea. Zip 135-080 Phone (82 2) 568-3848 Fax (82 2) 568-3847 E-mail: info@addpac.com http://www.addpac.com... - Page 2 VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 AddPac Technology Co., Ltd.
-
Page 3: Table Of Contents
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 [Contents] About This Guide Chapter 1. VoiceFinder AP1100 VoIP Gateway Overview........11 Introduction to VoiceFinder AP1100 Gateway................11 Main Features ............................13 Hardware Description ........................13 Voice over IP Service........................14 IP Routing Protocols ......................... 14 Network Managements........................ - Page 4 VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 FXO Interface Connection........................ 35 VoiceFinder AP1100 Interface Connection Example..............36 Booting...............................37 Use Console terminal with HyperTerminal ..................39 Appendix ....................45 Chapter 4. VoiceFinder AP1100 Gateway Technical Description..............45 Cable Specification ...........................48 AddPac Technology Co., Ltd.
- Page 5 Figure 1-2: The exterior view of VoiceFinder AP1100 Gateway ............12 Figure 1-3: VoiceFinder AP1100 Type A Gateway front view ...............16 Figure 1-4: The rear panel image of VoiceFinder AP1100 Type A Gateway........18 Figure 1-5: VoiceFinder AP1100 Type B Gateway front view ...............20 Figure 1-6: The rear panel image of VoiceFinder AP1100 Type B Gateway........22...
- Page 6 Table 1-3: The interfaces and explanation of the front panel of AP1100 Type B Gateway ....20 Table 1-4: The interfaces and explanation of the rear panel of AP1100 Type B Gateway ....23 Table 1-5: The interfaces of VoiceFInder AP1100 Gateways ..............23 Table 3-1: VoiceFinder AP1100 Gateway package ................30 Table 4-1: The transferred signal and Pinout specification ..............48...
-
Page 7: About This Guide
Chapter 1 『 VoiceFinder AP1100 VoIP Gateway Overview 』provides an introduction to the H/W and S/W of VoiceFinder AP1100 VoIP Gateway and how to apply for the technical supports. Chapter 2 『Before Installation』provides an explanation on the installation... - Page 8 VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 For technical supports, please contact AddPac Technology Co. Ltd. AddPac Technology Co., Ltd 2/ 3 Fl. Jeong-Am Bulding, 769-12 Yeoksam-Dong, Kangnam-Ku, Seoul, Korea Phone (02) 568-3848 Fax (02) 568-3847 E-mail: info@addpac.com http://www.addpac.com...
- Page 9 VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 The revision history of VoiceFinder AP1100 VoIP Gateway Installation Guide is as follows. Revision No. Date Comments Written by AddPac Version 1.0 June 2003 Edition R&D Center AddPac Technology Co., Ltd.
- Page 10 VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 [Symbols and Legends] The symbols and legends used in this installation guide are as follows: Commands and Keywords are typed in Bold. Variables that require user inputs are typed in Italic. Square brackets ([]) are optional values.
-
Page 11: Chapter 1. Voicefinder Ap1100 Voip Gateway Overview
Overview Introduction to VoiceFinder AP1100 Gateway Information VoiceFinder AP1100 VoIP Gateway offers Voice over IP service by connecting Local Area Networks, Wide Area Network or broadband network of ADSL. The below is the network diagram using VoiceFinder AP1100 Gateway. Figure 1-1: The network diagram using VoiceFinder AP1100 Gateway... -

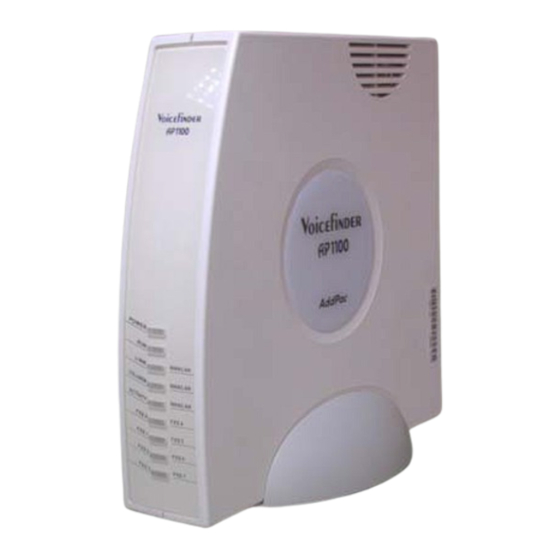

Page 12: Figure 1-2: The Exterior View Of Voicefinder Ap1100 Gateway
IP addresses to network clients automatically (DHCP server mode) and can receive a dynamically assigned IP address from a DHCP Server (DHCP client mode). VoiceFinder AP1100 Gateway solves the IP address shortage problem by using NAT (Network Address Translation) protocol. -
Page 13: Main Features
Internet subscribers of ADSL and cable modem. Also, VoiceFinder AP1100 Gateway is easy to install and operate, even for first time users and offers static, RIP v1/2 and OSPF v2 routing function. -
Page 14: Voice Over Ip Service
Interoperable with SIP Proxy Servers Interoperable with MGCs IP Routing Protocols VoiceFinder AP1100 Gateway supports various IP routing protocols. The main IP routing features are followings. Supports various IP routing and bridging protocol Static, RIP v1/v2, OSPF v2 routing protocols... -
Page 15: Security Functions
Multi-level User Account managements Auto-Disconnect for Telnet/Console Sessions Operation and Managements VoiceFinder AP1100 Gateway supports following operation and maintenance features. System Performance Analysis for Process, CPU, Connection I/F Configuration Backup & Restore for APOS Managements Debugging, System Auditing, and Diagnostics Support... -
Page 16: Hardware Configuration And Network Interfaces
Gateway. VoiceFinder AP1100 Gateway Part & Description VoiceFinder AP1100 Gateway is made by the high intensity ABS with compact design. The front panel of VoiceFinder AP1100 Gateway includes various LEDs indicating the operational status of the device. On the rear panel, there is a LAN0 interface for WAN connection, LAN1 interface for LAN connection, HomePNA interface and various voice interfaces. -
Page 17: Table 1-1: The Interfaces And Explanation Of The Front Panel Of Ap1100 Type A Gateway
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 Table 1-1 shows the functional explanation about each LED of VoiceFinder AP1100 Type A Gateway. Table 1-1: The interfaces and explanation of the front panel of AP1100 Type A Gateway Description Power LED, display whether external power is supplied normally POWER or not. -
Page 18: Rear View Of Ap1100 Type A
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 Rear View of AP1100 Type A The rear side of the VoiceFinder AP1100 Type A VoIP Gateway includes 10Mbps Ethernet Interface ports for WAN/LAN interfaces, a HomePNA port, RS-232C serial port for management, and FXS and FXO interface ports for voice signal processing. It can also form network environment for WAN-to-LAN routing service. -
Page 19: Table 1-2: The Interfaces And Explanation Of The Rear Panel Of Ap1100 Type A Gateway
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 The following Table 1-2 explains the rear side panel interface of AP1100 Type A VoIP gateway. Table 1-2: The interfaces and explanation of the rear panel of AP1100 Type A Gateway Interface... -
Page 20: Front View Of Ap1100 Type B
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 Front View of AP1100 Type B The front panel of VoiceFinder AP1100 Type B Gateway includes various LEDs indicating the operational status of the device. The following figure is the external form... - Page 21 VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 RUN LED, display whether the equipment is operated normally or LINK not. LAN0/LAN1 LED, display the status of WAN or LAN1 networks. LAN0/LAN1 (LAN0: Green, LAN1: Orange, both LAN0 & LAN1: Yellow) Collision Collision, display the collision status of the network.
-
Page 22: Rear View Of Ap1100 Type B
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 Rear View of AP1100 Type B The rear side of the VoiceFinder AP1100 Type B VoIP Gateway includes 10Mbps Ethernet Interface ports for WAN/LAN interfaces, RS-232C serial port for management, and FXS interface ports for voice signal processing. -
Page 23: Table 1-4: The Interfaces And Explanation Of The Rear Panel Of Ap1100 Type B Gateway
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 The following Table 1-4 explains the rear side panel interface of AP1100 Type B VoIP gateway. Table 1-4: The interfaces and explanation of the rear panel of AP1100 Type B Gateway Interface... -
Page 24: Network Interface
It is a RJ45 type standard interface. 1-Port 10Mbps Ethernet Interface for LAN (RJ45) VoiceFinder AP1100 VoIP Gateway offers one (1) 10Mbps Ethernet interface to form Local Area Network (LAN). It is a RJ45 type standard interface. 1-Port HomePNA LAN Interface (RJ11) VoiceFinder AP1100 VoIP Gateway supports one (1) HomePNA (Phoneline Networking Alliance) interface. -
Page 25: Voice Processing Interfaces
VoiceFinder AP1100 Gateway provides network management features using an RS-232C asynchronous serial interface port. Voice Processing Interfaces The voice interfaces of VoiceFinder AP1100 Gateway can be connected to the ordinary telephones, fax machines and PBX. AP1100 Type A 4-Port FXS voice interface ports... -
Page 26: Chapter 2. Before Installation
Ensure VoiceFinder AP1100 Gateway is in a dust-free environment before and after installation. Make sure to install VoiceFinder AP1100 Gateway on a flat and safe surface. To prevent accidents, be careful with ties, scarf, sleeves, and any other loose clothing from entangling with the chassis. -
Page 27: General Requirements
If no wrist strap is available, earthening by holding a metal part of the Chassis will help prevent static electricity. General Requirements VoiceFinder AP1100 Gateway is ready for use where other electronic products can Warning be used. However, the following conditions are recommended for maximum performance. -
Page 28: Network Connection Requirements
Consider EMI Standard and distance limitation while installing VoiceFinder AP1100 Warning Gateway. The below explains PSTN cable, Ethernet cable, Console Cable of VoiceFinder AP1100 Gateway. Necessaries Unless ordered in advance, the tools and certain cables are not provided in the package. -
Page 29: Ethernet Port
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 Ethernet Port VoiceFinder AP1100 Gateway offers two (2) RJ45 type 10BaseTX Ethernet ports on the rear panel and LEDs are indicating the port status are on the front panel. For the PIN information of the Ethernet cable, refer to Chapter 4. -
Page 30: Chapter 3. Gateway Installation
Q’ty VoiceFinder AP1100 Gateway Main Body Ethernet Cable (for RJ45 to RJ45) Console Cable (for RJ45 to DB9) Power supply External Adapter (110V/220V) If any item is missing, immediately contact AddPac Technology Co. Ltd. customer support. AddPac Technology Co., Ltd. -
Page 31: Voicefinder Ap1100 Interfaces And Cable Connection
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 VoiceFinder AP1100 Interfaces and Cable connection Install VoiceFinder AP1100 Gateway at the suitable place illustrated at Chapter 2. Async Serial Interface Connection Connect RJ45 connector of RS-232C serial console cable to the Console port and connect the other side of the cable (DB-9 connector) to the serial port of the PC. -
Page 32: Ethernet Interface Connection
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 Ethernet Interface Connection With RJ45 UTP cable, connect LAN0 Interface of VoiceFinder AP1100 Gateway and LAN interface of the WAN equipment (Router or Modem). Figure 3-2: Network connection diagram between AP1100 gateway and WAN network AddPac Technology Co., Ltd. -
Page 33: Figure 3-3: Network Connection Diagram Between Ap1100 Gateway And Local Lan Network
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 In case of IP share mode, connect PC directed to the LAN1 Interface. In case of NAT/PAT, connected logal HUB. For the detailed configuration, refer to Operation Manual or Quick Operation Manual. -
Page 34: Fxs Voice Interface Connection
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 FXS Voice Interface Connection Connect FXS port to analog phones with RJ11 cables. Figure 3-4: FXS analog voice port interface diagram between AP1100 VoIP gateway and analog telephones, FAXs and PBX AddPac Technology Co., Ltd. -
Page 35: Fxo Interface Connection
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 FXO Interface Connection Connect FXO Interfaces to PBX (Private Branch eXchange) with RJ11 cable. Figure 3-5: FXO analog voice port interface diagram between AP1100 VoIP gateway and PBX or PSTN AddPac Technology Co., Ltd. -
Page 36: Voicefinder Ap1100 Interface Connection Example
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 VoiceFinder AP1100 Interface Connection Example The below is an example of VoiceFInder AP1100 voice and data interface connections. Figure 3-6: The example diagram of network and voice interfaces of AP1100 VoIP gateway... -
Page 37: Booting
Booting When power is supplied, the system is booted as described below VoiceFinder AP1100 Gateway performs a self-test and checks basic operations of the CPU, the memory and interfaces. The boot loader is executed, and the boot loader seeks for proper software image files. - Page 38 After connecting all the interfaces, supply the power to VoiceFinder AP1100 Gateway. Danger Supply the power after connecting the adapter to VoiceFinder AP1100 Gateway. Do not connect the adapter to the power supply before connecting it to the gateway. Also, use 110V adapter in case the power supply is 110V.
-
Page 39: Use Console Terminal With Hyperterminal
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 Use Console terminal with HyperTerminal To use a PC as a Console terminal, the communication emulator application should be installed. When the PC is MS-Windows line, use the HyperTerminal Application. Figure 3-7: MS-Windows Communication Emulator HyperTerminal... -
Page 40: Figure 3-8: Assign A Name For The New Connection
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 Assign a name to the connection. “AddPac” is used at the below example. Figure 3-8: Assign a name for the new connection AddPac Technology Co., Ltd. -
Page 41: Figure 3-9: Select The Interface For Console Cable
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 Select the interface where the Console cable is connected. Typically, the Console cable is connected to the RS-232C 9Pin Serial Port, so select the right port according to the user environment. “COM1” is selected at the below example. -
Page 42: Figure 3-10: Com1 Properties
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 Set the port information. The below examples is based on “COM1” port. Figure 3-10: COM1 Properties AddPac Technology Co., Ltd. - Page 43 VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 After the configuration, press “Enter” button, then the below message will be displayed on the HyperTerminal. This message shows the routing S/W version, Gateway H/W test result, memory and etc. System Boot Loader, Version 1.3.6/1 Copyright (c) by AddPac Technology Co., Ltd.
- Page 44 After the log-in process, the prompt “router#” is displayed on the console terminal. There are two types of prompts used for VoiceFinder AP1100 Gateway: “router>” and “router#”. The “ > ” prompt indicates that the user is not an administrator. With this prompt, the user is unable to use certain commands: particularly the configuration commands.
-
Page 45: Chapter 4. Appendix
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 Chapter 4. Appendix VoiceFinder AP1100 Gateway Technical Description This Chapter explains the supported Technical Specification of VoiceFinder AP1100 VoIP Gateway. (* means that the item is not yet implemented.) IP Routing Service Static... - Page 46 VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 Security Functions IP Access List Standard and Extended IP Access List, IP Packet Filtering PPP User Password Authentication Protocol (PAP) Authentication Challenge Handshake Authentication Protocol (CHAP) Access Control and Data Protections Enable/Disable for Specific Protocols...
-
Page 47: Hardware Specification
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 Hardware Specification Microprocessor 32bit RISC Microprocessor 1-Port 10Mbps Ethernet Interface for WAN (RJ45) 1-Port 10Mbps Ethernet Interface(RJ45) or 1-Port HomePNA Interface(RJ11) for LAN Network Interface 1-Port Async Serial Interface for RS-232C Console Port... -
Page 48: Cable Specification
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 Cable Specification This Appendix provides information about the Pinout specifications of the following cables used with VoiceFinder AP1100 Gateway. Console Port Signal and Pinout (RJ-45 to DB9) Ethernet Cable Assemble (RJ-45 to RJ-45) Pinout [Console Port Signal &... -
Page 49: Figure 4-1: 10Base-T Rj-45 Connector
VoiceFinder AP1100 VoIP Gateway Installation Guide Version 1.0 [Ethernet Cable Assemble (RJ-45 to RJ-45) Pinout] In order to connect the gateway with other equipments (i.e. HUB), the RJ-45 to RJ-45 Ethernet Cable is used. The RJ-45 Connector Pin sequence is provided below and the transferred signal and Pinout specifications are enlisted at the below table.
