VoiceFinder AP200 VoIP Residential Gateway (RGW) User's Guide Version 1.1
E0.0
10.10.10.1
Station
Phone A
AP200-A,B Configuration
Same to Configuration 5
1 stage call configuration
AP200-A
4 Gateway(config)# dial-peer voice 200 VoIP
4 Gateway(config-dialpeer-VoIP-200)# destination-pattern
Description) Total 6 digit number for transmission
5 Gateway(config-dialpeer-VoIP-200)# session target 20.20.20.1
6 Gateway(config-dialpeer-VoIP-200)# exit
AP200-B
4 Gateway(config)# dial-peer voice 200 VoIP
4 Gateway(config-dialpeer-VoIP-100)# destination-pattern
Description) Total 6 digit number for transmission
5 Gateway(config-dialpeer-VoIP-100)# session target 20.20.20.1
6 Gateway(config-dialpeer-VoIP-200)# exit
Note : For ARS of PBX, imagine ARS No. to be 0, 2 second delay, it is able to make
voice port configuration with adding prfix as follows
AddPac Technology Co.,Ltd.

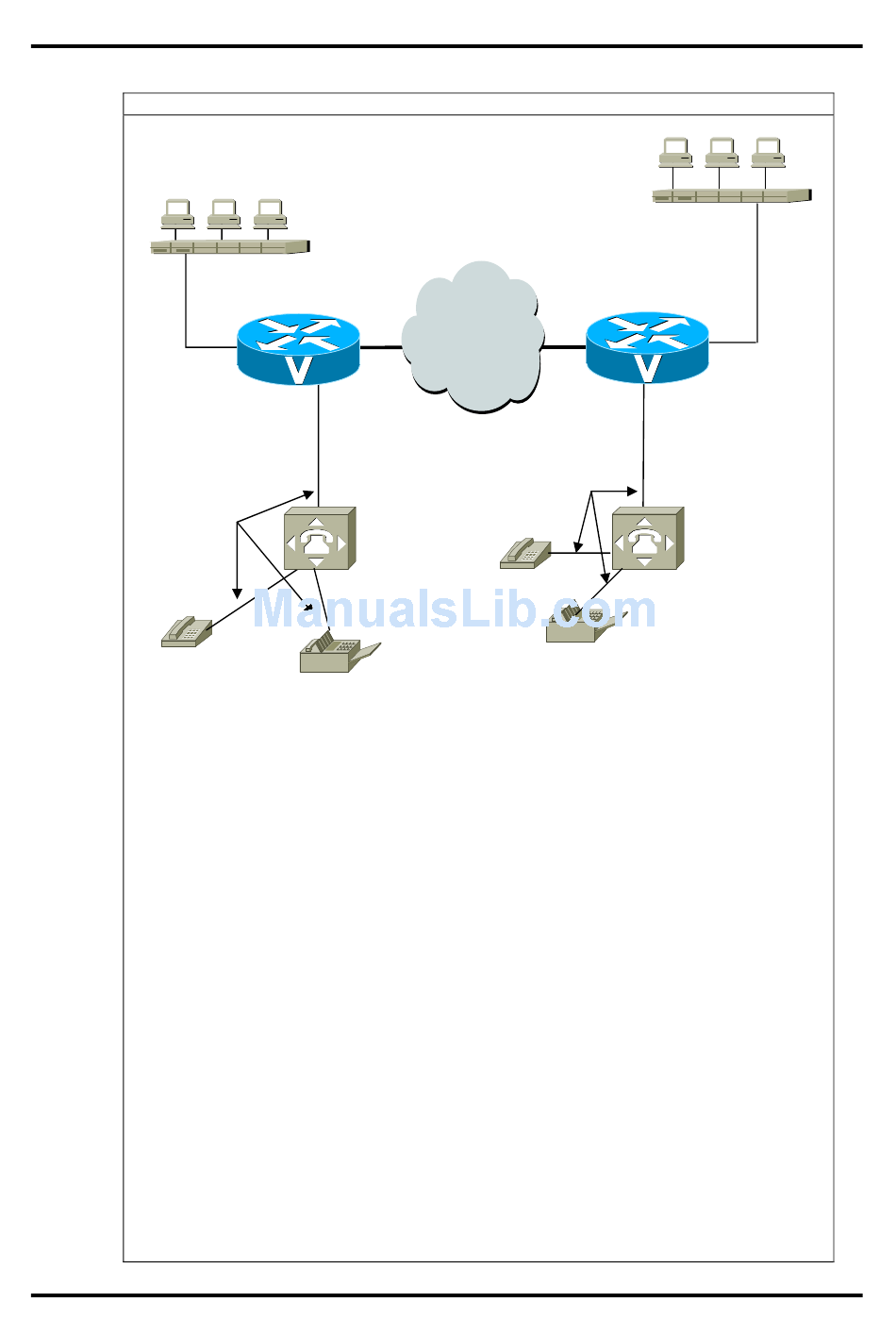

Configuration 6 - Linking PBX Users with FXO, FXS(1 Stage Call)
AP200-A
S0
FXO
Dial Peer 100 POTS
Voice PORT 1/0
Destination 100
802
PBX
800 801
FAX A
AP200-B
S0
IP
Network
Station
700
Phone B
701
FAX B
LAN HUB
E0.0
20.20.20.1
FXS
Dial Peer 200 POTS
Voice PORT 0/0
Destination 200
8 Trunk
PBX
2.....
1.....
