defined endpoints. As shown in Figure 5.3, for outgoing calls (from the
perspective of the POTS dial peer 1), the POTS dial peer establishes the source
(via the originating telephone number or voice port) of the call.
The VoIP dial peer establishes the destination by associating the destination
phone number with a specific IP address.
(408) 555....
To configure call connectivity between the source and destination as
illustrated in Figure 5.3, enter the following commands on router 10.1.2.2:
dial-peer voice 1 pots
destination-pattern 1408555 . . . .
port 0
dial-peer voice 2 VoIP
destination-pattern 1310555 . . . .
Session target 10.1.1.2
In the previous configuration example, the last four digits in the VoIP dial peer's
destination pattern were replaced with wildcards.
This means that from access server 10.1.2.2, calling any number string that
begins with the digits "1310555" will result in a connection to access server
10.1.1.2.
AddPac Technology Co.,Ltd.
Source
Source
PBX
Voice Port
POTS Call leg

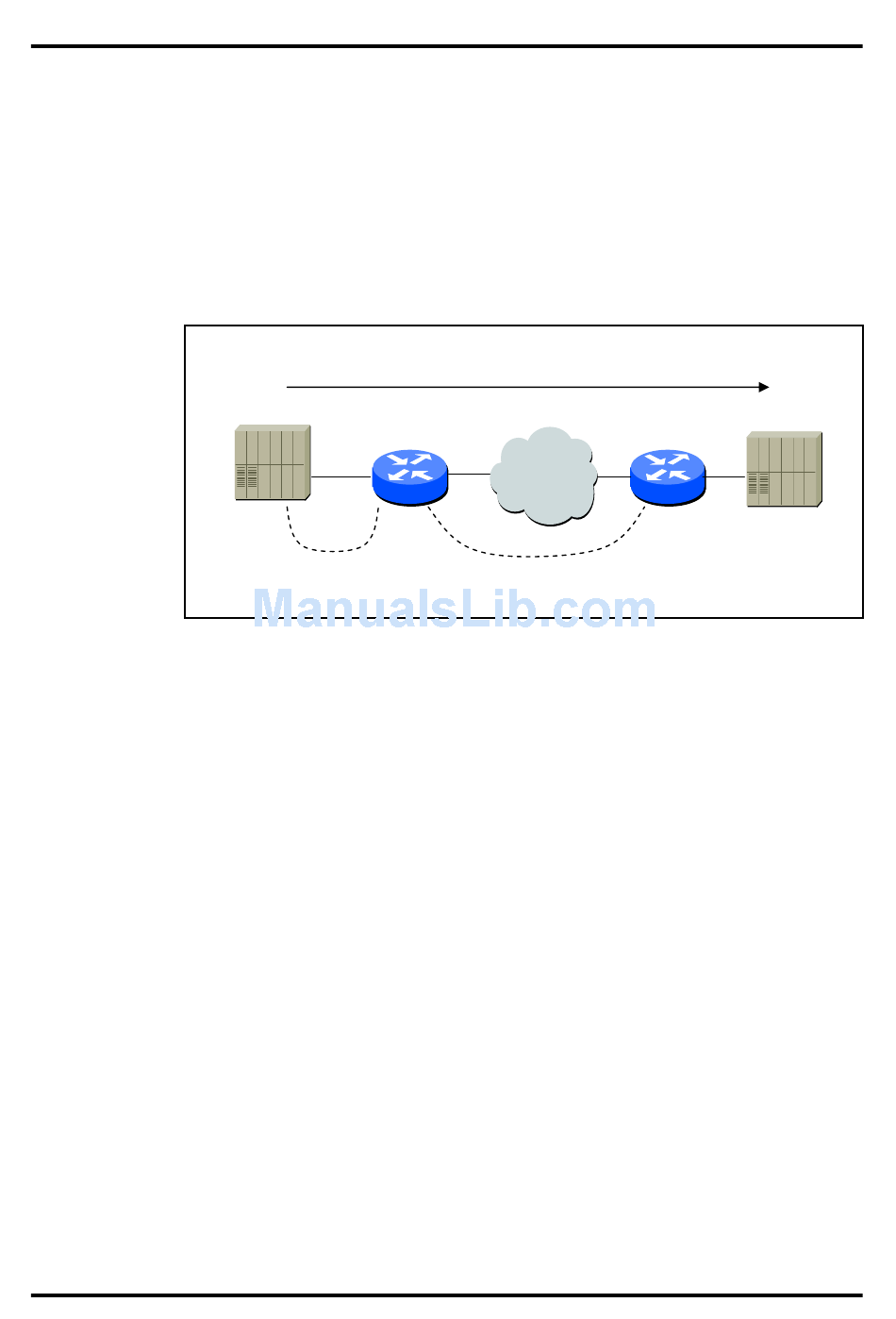

Figure 0.1 Outgoing Call in POTS Dial Peer 1's view
