VoiceFinder AP200 VoIP Residential Gateway (RGW) User's Guide Version 1.1
No.
(1)
(2)
(3)
(4)
(5)
(6)
[Table 1-3 The explanation of Back Side Panel Interfaces of AP200 Model B
RGW]
Following Figure 1-8 shows the Back panel interface picture of AP200 Model B
VoIP Residential Gateway.

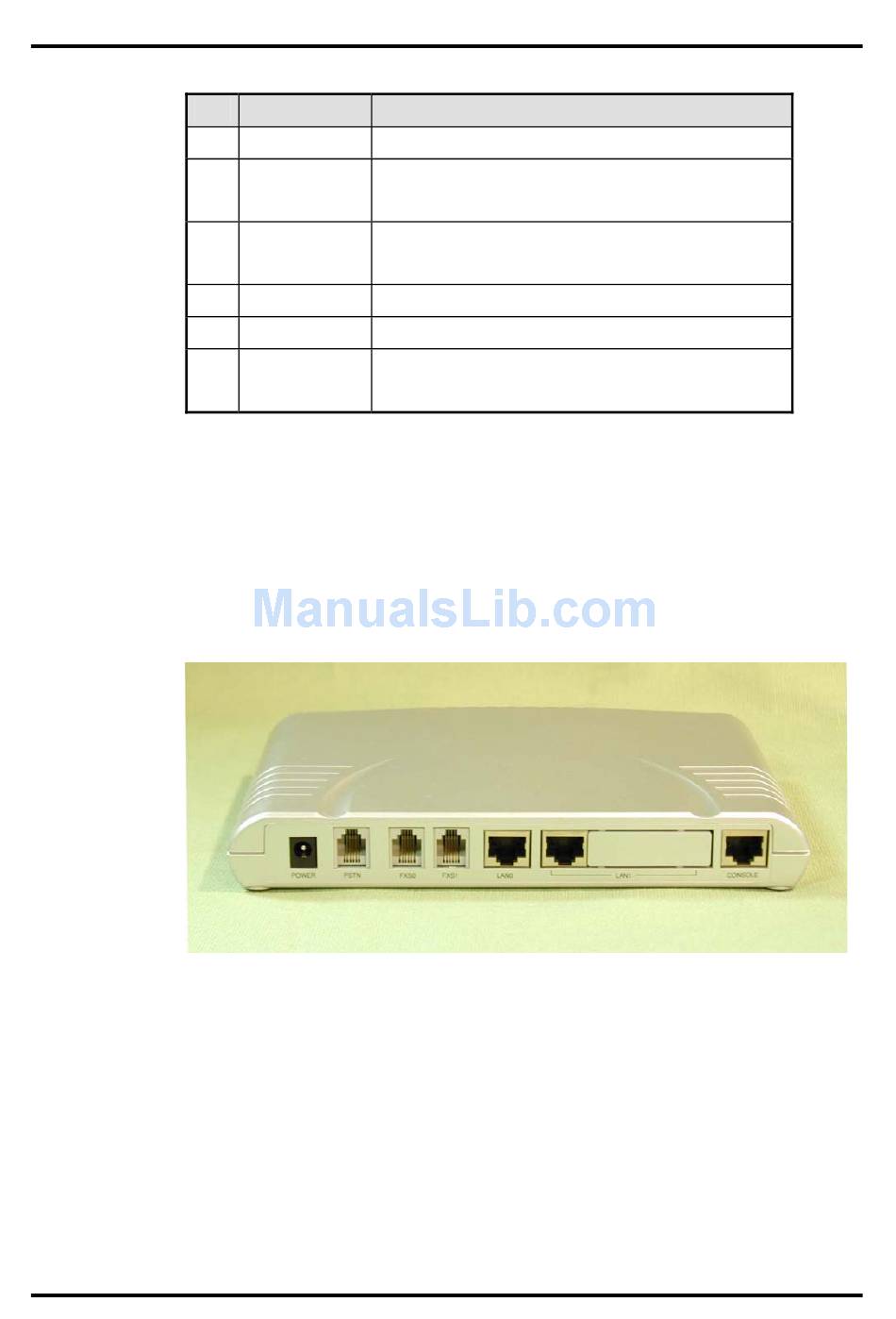

[Figure 1-8 Back Side Panel Picture of VoiceFinder AP200 Model B VoIP RGW]
AddPac Technology Co.,Ltd.
Interface
External DC Power Supply Input. (DC 5V)
DC Power
This port is used to connect PSTN Analog Line for
PSTN
PSTN backup. (RJ11)
2 FXS Ports : As FXS Voice Interface Ports, Phone
FXS (0,1)
or Fax Machine can be connected. (2x RJ11)
10Mbps Ethernet Port for WAN interface. (RJ45)
LAN0
LAN1 10Mbps Ethernet Port for LAN interface. (RJ45)
RS-232C serial port for system management.
Console
(RJ45)
Explanation
