15.7 Faults and Messages

Display

LED Color Status
H1 green on
H1 orange on
H1 - off
H1 red on
DOK-ECODR3-FL*-04VRS**-FK01-EN-P
Position of the Displays
Display of general status messages and input/output status messages is
integrated on the electronic module. The following figure shows the
electronic module and the position of all its displays.

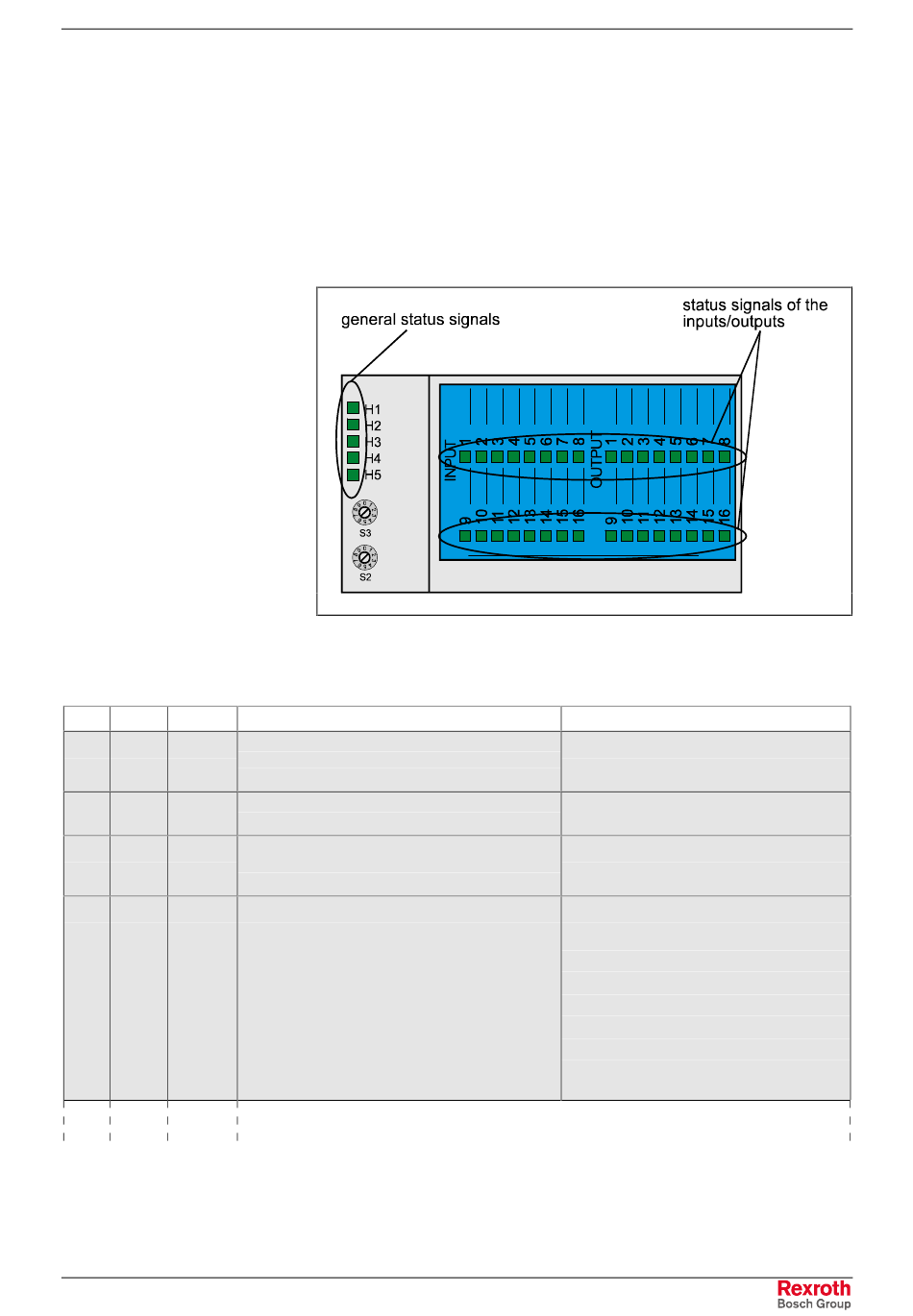

Fig. 15-21: Position of the Electronic Module Displays
General Status Displays
Definition
input/output module is synchronous to master
drive, synchronous data exchange with the
assigned drive
input/output module is synchronous to master
drive, no data exchange with the assigned drive
input/output module is asynchronous to master
drive, asynchronous data exchange with the
assigned drive
no communication with a drive
EMD Module (EcoX-Bus)
Error-Clearing
check if...
•
...the bus cable is correctly connected.
•
...the address switches on the
input/output module are correctly set.
•
... the assigned drive controller is
turned on.
•
...the parameters for the input/output
module assigned to the drive controller
are set correctly.
