Interface
Communications via RS232 Interface
Features:
The RS232 interface is intended for use when connecting a PC with the
MotionManager startup program.
• Transmission rates of:
• Maximum transmission path: 15m
• 8-bit ASCII protocol or 8-bit SIS protocol
• Parity bit: none, even, odd
• one stop bit

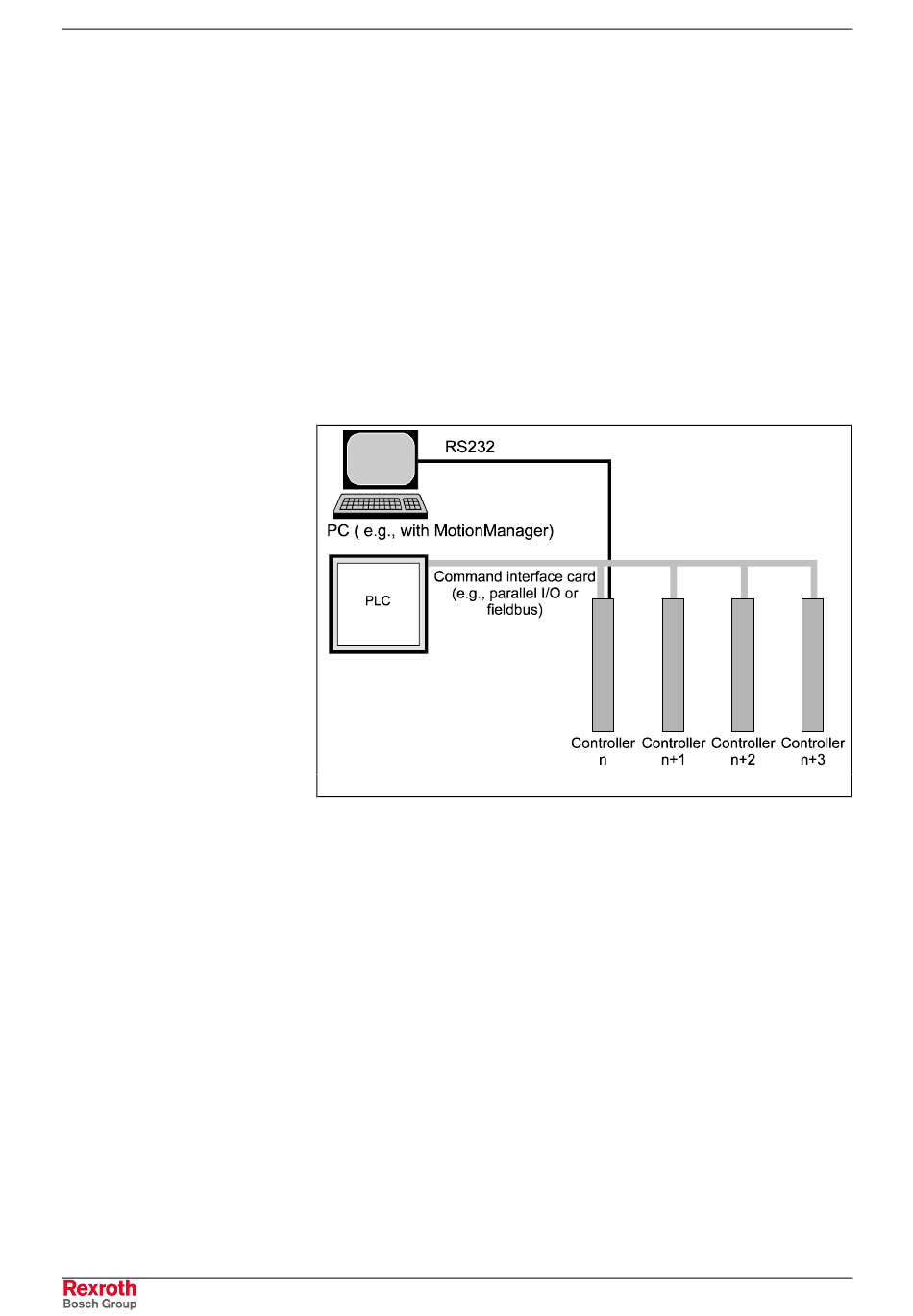

Fig. 10-14 Communications via RS232 interface
ECODRIVE03-FL*-04VRS
2400
baud
ASCII
4800
baud
ASCII
9600
baud
ASCII / SIS
19200 baud
ASCII / SIS
DOK-ECODR3-FL*-04VRS**-FK01-EN-P
Fs0004d1_AE.WMF
