BTV04 Key Descriptions

DOK-ECODR3-FL*-04VRS**-FK01-EN-P

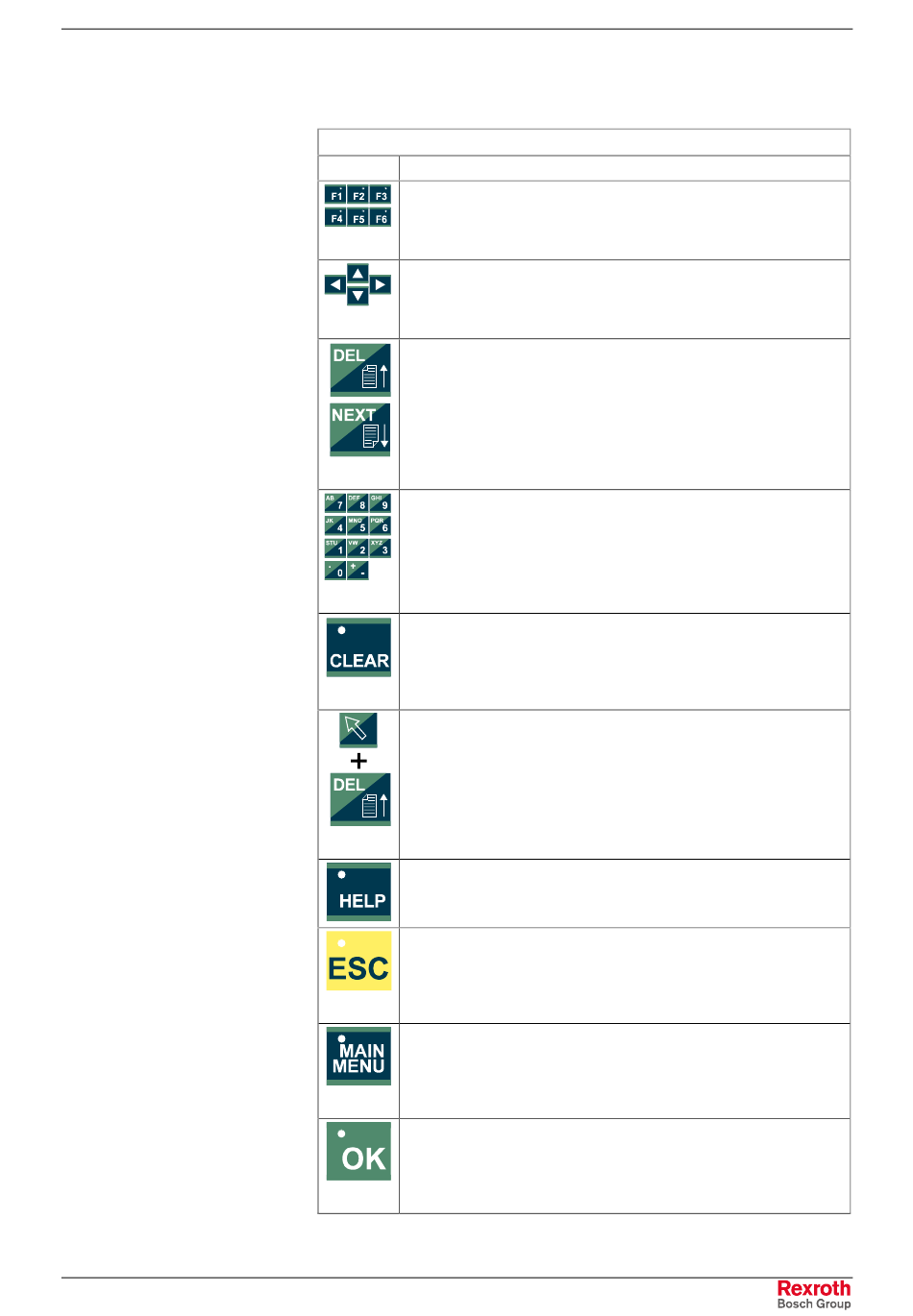

Keys
Symbol Definition
F1 to F6 are function keys which are used to select menus or
display levels.
The arrow keys enable navigation inside a screen or activation of
input fields. When inputting parameters, they also perform
additional functions for scrolling through parameter groups.
The page keys allow paging through screen contents. This function
significantly simplifies working in nested menus.
In the windows where NC instructions, parameters, logic task
instructions or variables are displayed, the running selection
number is incremented by one when a key is pressed.
The alphanumeric keypad allows data input and loading/saving
products in the BTV04 Product Administration. To compose the
character "B," for example, the character key must be pressed
twice while holding the SHIFT key; to compose the character "C,"
the character key must be pressed 3 times, etc. When releasing
the Shift key, the cursor moves one space to the right.
CLEAR – Using the CLEAR key, error messages are cleared. To
clear an error, it must first have been eliminated, otherwise the
error screen will continue to be displayed.
While in the DELETE function, holding down SHIFT and pressing
the DEL key at the same time leads to deleting the entire entry.
HELP – If an 'H' is shown on the display, a help screen can be
called up.
ESC – Jump to previous menu. Cancel functions or data input.
MAIN MENU – Leave the current screen and return to the Main
Menu.
OK – Data input is accepted and saved only by pressing the OK
key. Switching to another screen does not automatically save data.
Note: As long as a data input has not been saved, it is shown in
italics.
