Setting The Motor Holding Brake Type - Bosch Rexroth OptiFeed-FS EcoDrive 03 FLP04VRS Functional Description

5-4
Motor Configuration

Setting the Motor Holding Brake Type

Behavior with Spindle Brake
CM07, Holding brake type
The motor holding brake type can be set using Parameter CM07,
Holding brake type.
The following are stipulated:
• self-releasing or self-holding brake
• Spindle brake or servo brake
0 0
0 = self-holding brake
1 = self-releasing brake
0 = Servo brake
1 = Main spindle brake
The motor holding brake is always activated when the actual velocity of
the motor is less than 10 RPM.

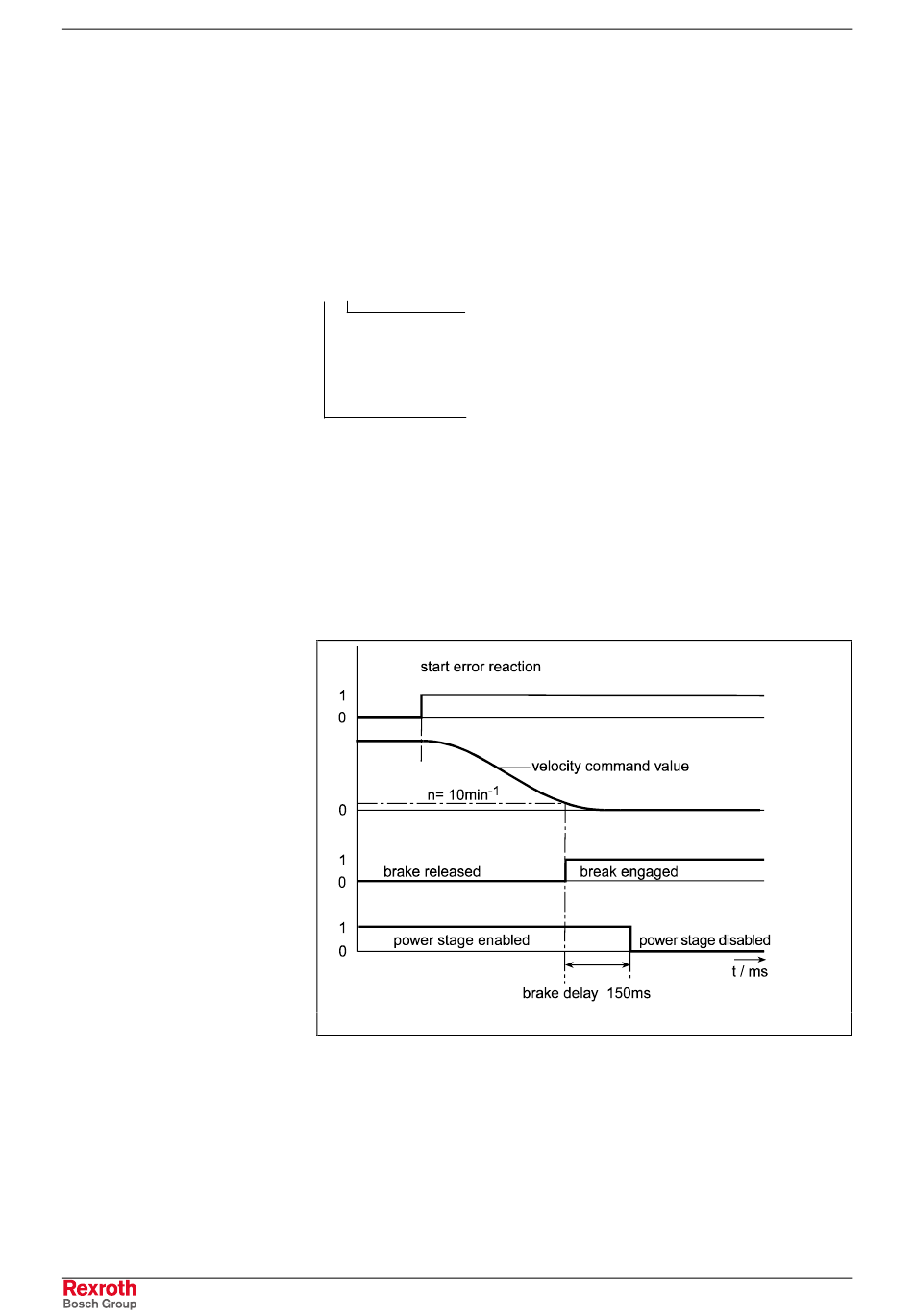

Fig. 5-2: Timing Diagram for Command Value Reset and CM07, Holding Brake
Type (Spindle Brake)
ECODRIVE03-FL*-04VRS
0V at the brake, brake applied
24V at the brake, brake applied
Brake is applied after reaching the max. braking
time.
Brake is applied only at < 10 RPM
DOK-ECODR3-FL*-04VRS**-FK01-EN-P
Sv5078fl_AE.WMF
