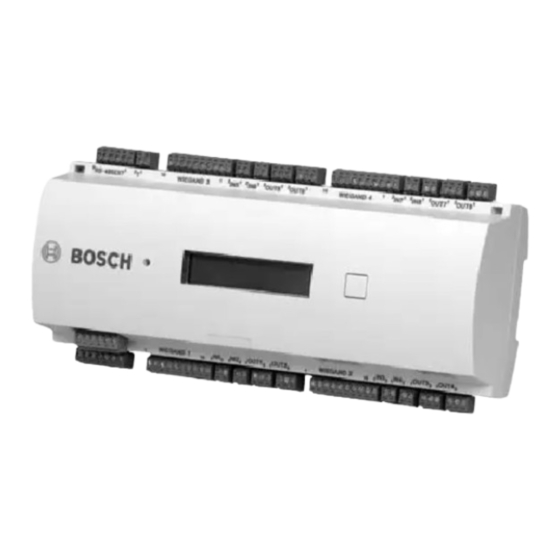

AMC2 Modular Controller
AMC2‑4R4
en
Installation Manual

Advertisement

Table of Contents
loading

  Also See for Bosch AMC2

Bosch AMC2 Series Installation Manual
Bosch AMC2 Series Installation Manual 72 pages
Bosch AMC2 Installation Manual
Bosch AMC2 Installation Manual 54 pages
Bosch AMC2-4WE Installation Manual
Bosch AMC2-4WE Installation Manual 38 pages

  Related Manuals for Bosch AMC2

  Summary of Contents for Bosch AMC2

  • Page 1 AMC2 Modular Controller AMC2‑4R4 Installation Manual...

  • Page 3: Table Of Contents

    System Overview Installing Mounting Unmounting Opening the Case Closing the Case Cabling 4.5.1 Conductor data for power to AMC2 Grounding and Shielding 4.6.1 Grounding for Host Interface 4.6.2 Grounding for Extension Interface 4.6.3 Grounding for Bus Interfaces Connecting Power Supply...

  • Page 4: Safety Instructions

    10. Lightning - For added protection during electrical storms external lightning conductors can be installed. This prevents power surges from damaging the unit. 11. The units should be installed in locations with restricted access. 2018-02 | AMC2-4R4 | Installation Manual Bosch Access Systems GmbH...

  • Page 5: Safety Precautions

    AMC2 Modular Controller Safety Instructions | en Safety Precautions Read instructions! Before working with the AMC2 device, read these instructions carefully. Make sure you have understood all information described in this document. Warning! Risk of electric shock External power supplies must be installed and put into service by qualified personnel.

  • Page 6: Unpacking

    Do not attempt to put the unit into operation if components are damaged. If any parts are missing, inform your customer service representative or a Bosch Security Systems salesperson. The shipping carton is the safest transport container for the unit. Store it and the other packaging material for future use.

  • Page 7: Important Information

    Bosch Security Systems retains all rights not expressly granted. Nothing in this license constitutes a waiver of Bosch’s rights under the U.S. Copyright laws or any other federal or state law. If you have any questions concerning this license, please, write to:...

  • Page 8: Introduction

    RS-232 or 10/100 Mbit/s Ethernet. It has eight analog input devices and eight relay outputs. With its analog input devices, the AMC2-4R4 verifies, for example, if a lock is closed or open. The relay outputs can be used to activate lock mechanisms if access is granted, or activate the...

  • Page 9: Equipment Configuration

    (AMC2-8IOE, AMC2-16IE, or AMC2-16IOE) can be connected. The extensions offer 8 or 16 additional inputs and outputs. The setup procedure for an AMC2-4R4 is made very simple and fast by the use of door templates. Once selected, all the inputs and outputs are predefined. These settings can be changed to choose every free contact of the controller or a connected extension.
  • Page 10 Connectors for eight analog inputs Connectors for eight relay outputs Notice! All connectors, with the exception of the RS-232 and Ethernet host interface, are pluggable screw clamp terminals. Figure 3.5: Jumper at the bottom side 2018-02 | AMC2-4R4 | Installation Manual Bosch Access Systems GmbH...

  • Page 11: Performance Characteristics

    Figure 3.6: Jumper at the bottom side Jumper for setting either voltage free relay output (“dry” mode) or looped-in voltage from the AMC2 internal power supply (“wet” mode). Jumper: Potential equalization between different systems and earth ground (shield) for the bus systems.

  • Page 12: System Overview

    Using RS-485 reader interfaces, up to eight peripheral devices can be connected to each AMC2. The four reader interfaces are divided into two buses. Interface 1 and 2 are on one bus, and interfaces 3 and 4 are on the other bus. With this arrangement, you can connect all readers to one interface.

  • Page 13: Installing

    Installing Mounting The AMC2-4R4 can be attached on a standard 35 mm (1.377 in.) mounting rail using a snap-in mechanism. Attach the AMC2-4R4 into the upper edge of the mounting rail [1], then push down the device and snap it onto the rail by pushing it towards the back [2].

  • Page 14: Unmounting

    To remove the AMC2-4R4 from a mounting rail, first remove all pluggable connectors. Push down the AMC2-4R4 until the lower edge snaps out of the mounting rail [1]. Pull the lower end of the AMC2-4R4 from the mounting rail [2].

  • Page 15: Opening The Case

    To open the AMC2-4R4, first remove all pluggable connectors. The AMC2-4R4 case consists of a top cover mounted with a two-point snap-in closure on a chassis. To open the case, push down the two snap-ins with a screwdriver, then swing the cover down.

  • Page 16: Closing The Case

    [1]. Please ensure that the BOSCH logo is not upside-down. The upper edge of the front cover now aligns with the two-point snap-in closures on the upper edge of the back cover [2], and may thus be clicked gently into place.
  • Page 17 These specifications apply to power supply, readers, relay outputs, and extension interface. Regarding inputs, specific voltage-drop values need to be taken into account. Refer to Connecting Analog Input Devices, page 33. Bosch Access Systems GmbH Installation Manual 2018-02 | AMC2-4R4 |...

  • Page 18: Grounding And Shielding

    AMC2 Modular Controller Grounding and Shielding The main grounding point at the AMC2-4R4 is connected to pin 2 of the power supply connector - see Connecting Diagrams, page 44. It is good practice to shield all wires carrying low level signals.

  • Page 19: Grounding For Extension Interface

    Jumper C (for the second bus) and jumper D (for the first bus) connects the internal ground of the AMC2 to the RS-485 ground of the bus. Only set jumper C and D (C2 or D2) if the AMC2 powers all other peripheral devices which are directly connected to the AMC2.

  • Page 20: Connecting Power Supply

    Connecting Diagrams, page 44 for a complete diagram of the power supply connector. Figure 4.8: Location of the power supply connector Connect an external power supply (10 - 14 Vdc) for the AMC2 device at pin 1 (positive) and pin 3 (0 V) of the pluggable screw connector.

  • Page 21: Ethernet Host Interface

    Figure 4.9: Location of the Ethernet interface Notice! After connecting a new AMC2 device to a network using DHCP, it can take some time before the new AMC2 device is recognized by the remote server. You can accelerate this process by running the following command: ipconfig /flushdns This makes the AMC2 device immediately available by its name.

  • Page 22: Rs-485 Host Interface

    | Installing AMC2 Modular Controller RS-485 Host Interface An RS-485 host system can consist of up to eight AMC2 controllers connected using 2- or 4- wire connection. Figure 4.10: Configuration of a RS-485 host system Host RS-232 connection RS-232 / RS-485 converter...

  • Page 23: Rs-485 Two Wire Connection

    Any bus line conductor connects up to eight AMC2. Do not exceed the maximum number of devices. To use RS-485 mode at the AMC2-4R4 , connect the data cables to the pluggable screw connector of the RS-485 host interface. The setting of the AMC2-4R4 must correspond with the settings of the RS-232 / RS-485 converter.

  • Page 24: Rs-485 Four Wire Connection

    Figure 4.13: Settings for RS-485 four wire connection Notice! See the notices for setting the RS-232 / RS-485 converter. Notice! If a four-wire connection is used the interface must be set up as a crosslink. 2018-02 | AMC2-4R4 | Installation Manual Bosch Access Systems GmbH...

  • Page 25: Rs-232 Host Interface

    Cable length between two RS-232 COM serial interfaces must not exceed 15 meters (45 ft). Figure 4.14: Location of the RS-232 serial interface As the AMC2 controller is conceptionally a PC, it is not possible to connect them directly using normal cables. Use instead a null modem or “crossover” cable. A complete connection...

  • Page 26: Dil Switch Selector

    DIL switches are used to configure the host settings. The first four DIL switches for address selection define the RS-485 address of the AMC2 in a RS-485 bus system. Switch 5 selects one of the two different protocols, SDEB and BPA (according to DIN6619).

  • Page 27: Rs-485 For Extension Modules

    Installing | en – RS-485 host connection with more than one and maximum eight AMC2s per bus Notice! Changing the type of the host connection requires a reset of the AMC2 - see Resetting the Software, page 39. DIL Switches Mode...
  • Page 28 | Installing AMC2 Modular Controller Figure 4.17: Connection of an extension module to an AMC2 2018-02 | AMC2-4R4 | Installation Manual Bosch Access Systems GmbH...

  • Page 29: Rs-485 Interface For Card Readers

    All eight possible readers can connect to each of the busses in any combination. However, the addresses of the readers must be unique on an AMC2. The voltage on the interface is equal to the input voltage of the AMC2-4R4 A complete connection diagram of the RS-485 interface is shown in chapter Connecting Diagrams, page 44.

  • Page 30: Connecting Relay Outputs

    4.14 Connecting Relay Outputs To operate locks or alarm systems, the AMC2-4R4 has eight relay outputs. The outputs will be connected to the 3-pin pluggable screw connectors S5, S6, S10, S11, S17, S18, S22, and S23 - refer to chapter Connecting Diagrams, page 44.
  • Page 31 Notice! Risk of damage to equipment Do not connect externally powered devices in wet mode. This can damage the AMC2-4R4. Bosch Access Systems GmbH Installation Manual 2018-02 | AMC2-4R4 |...
  • Page 32 Each relay output has a separate jumper setting on the underside of the circuit board to select dry (E1) or wet (E2) mode. Figure 4.22: Location of relay output jumpers (bottom side) 2018-02 | AMC2-4R4 | Installation Manual Bosch Access Systems GmbH...

  • Page 33: Connecting Analog Input Devices

    Risk of damage to equipment Do not connect external power supply to the AMC2 inputs. When connecting a relay output to an AMC2 input use dry mode with potential-free contact - refer to Connecting Relay Outputs, page 30. Figure 4.23: Location of the analog input connectors The AMC2-4R4 can also detect the wiring conditions ‘short circuit’...
  • Page 34 Table 4.3: Maximum values of cable resistance per used resistor combination in Ohm Notice! We recommend using serial resistors (R ) no higher than 5K6 in order to obtain clear measurements. 2018-02 | AMC2-4R4 | Installation Manual Bosch Access Systems GmbH...

  • Page 35: Tamper Protection

    4.16 Tamper Protection To protect the AMC2-4R4 against unauthorized access and so prevent tampering with sensitive data, the AMC2-4R4 provides an additional interface to connect external tamper contacts. This interface is a potential-free 2-pin pluggable screw connector marked with T.

  • Page 36: Operating

    | Operating AMC2 Modular Controller Operating Status Display of the AMC2 The liquid crystal display delivers status information about the AMC2-4R4. Push the 'Dialog' button to switch between different modes. Figure 5.1: Location of the ’Dialog’ button 2018-02 | AMC2-4R4 |...
  • Page 37 Dig. I2: :::::::::::::::: shown on separate pages. Dig. I3: :::::::::::::::: MAC 0010174C8A0C Network device address (MAC) N AMC-1234-5678 Network name of the AMC2 I 192.168.10.18 IP-address of the AMC2 G 192.168.10.255 IP-address of the gateway (Version V 00.44 or higher) M 255.255.255.0...

  • Page 38: Configuring The Ethernet Interface

    | Operating AMC2 Modular Controller Configuring the Ethernet Interface To configure the AMC2-4R4 in a TCP/IP network environment, use the AmcIpConfig tool provided in the following directory on the standalone or the remote server of the Building Integration System:...

  • Page 39: Troubleshooting

    The AMC2-4R4 deletes its application program leaving only its bootloader and network setting. As soon as it is online again, the AMC2-4R4 bootloader will download a fresh copy of the application program and configuration. If the problem persists please request technical support.

  • Page 40: Resetting The Device To Factory Default

    Resetting the Device to Factory Default Reset the AMC2-4R4 as described above. Open the upper case of the AMC2-4R4 as described in Opening the Case, page 15. Set all six DIL switches of the RS-485 selector to ON as shown in the figure below.

  • Page 41: Technical Data

    64,8 mm x 13,9 mm (2.551 x 0.547 in.) 1 line, 16 characters Power consumption AMC: 5 VA Peripheral devices: using the PSU-60 – up to 55 VA – constant load: 25 VA Bosch Access Systems GmbH Installation Manual 2018-02 | AMC2-4R4 |...
  • Page 42 Weight approx. 0.53kg (1.2lb) Notice! The voltage drop from the power supply to the AMC2-4R4 affects the AMC interfaces. The total drop must not exceed 2V! Notice! To determine the environmental impact of an installation, take into account the most extreme values of all participating devices.
  • Page 43 AMC2 Modular Controller Technical Data | en Bosch Access Systems GmbH Installation Manual 2018-02 | AMC2-4R4 |...

  • Page 44: Appendices

    Figure 7.1: Connectors on upper PCB Shield Data RxTx+ (2-wire) Data Rx+ (4-wire) Data RxTx- (2-wire) Data Rx- (4-wire) Ground (PAG) Data Tx+ (4-wire) Data Tx- (4-wire) Tab. 7.4: RS-485 host on upper PCB 2018-02 | AMC2-4R4 | Installation Manual Bosch Access Systems GmbH...
  • Page 45 AMC2 Modular Controller Appendices | en TXD+ TXD- RXD+ not connected not connected RXD- not connected not connected Tab. 7.5: Ethernet Network socket (RJ45) Figure 7.2: Interconnect diagram of the RS-232 serial interface Bosch Access Systems GmbH Installation Manual 2018-02 | AMC2-4R4 |...
  • Page 46 | Appendices AMC2 Modular Controller Figure 7.3: Connector blocks of the AMC2-4R4 2018-02 | AMC2-4R4 | Installation Manual Bosch Access Systems GmbH...
  • Page 47 Relay Output, normally open Relay Output, common Relay Output, normally closed Tab. 7.9: Relay output Power supply for external devices (10V - 30V) Power supply for external devices (0V) Shield Data RxTx+ Data RxTx- Bosch Access Systems GmbH Installation Manual 2018-02 | AMC2-4R4 |...
  • Page 48 | Appendices AMC2 Modular Controller Ground (PAG) Tab. 7.10: Host / Extension interface Tamper Contact, in Tamper Contact, out Tab. 7.11: External tamper contact 2018-02 | AMC2-4R4 | Installation Manual Bosch Access Systems GmbH...

  • Page 49: Index

     11, 30, 41 overview  12 power supply  16, 20 reader interfaces  11, 29, 41 resetting  39 resistor  33 RS-232 host interface  11, 25 RS-485 host interface  9, 11, 22 Bosch Access Systems GmbH Installation Manual 2018-02 | AMC2-4R4 |...
  • Page 50 | Index AMC2 Modular Controller 2018-02 | AMC2-4R4 | Installation Manual Bosch Access Systems GmbH...
  • Page 52 Bosch Sicherheitssysteme GmbH Robert-Bosch-Ring 5 85630 Grasbrunn Germany www.boschsecurity.com © Bosch Sicherheitssysteme GmbH, 2018...
