ECODRIVE03-FL*-04VRS
12

Diagnostic Message Descriptions

12.1 Overview of the Diagnostic Message Descriptions

Diagnostic Message Types

Composition of a Diagnostic Message

DOK-ECODR3-FL*-04VRS**-FK01-EN-P
Each operating state of the drive controller is identified with a diagnostic
message.
Distinctions are made between:
• Diagnostic Error Messages
• Diagnostic Warning Messages
• Command Diagnostic Messages
• Diagnostic Status Messages
• Operation Status
A diagnostic message consists of:
• a diagnostic message number and a
• Diagnostic Message Text
F-0304 NC - Command illegal
or
F228

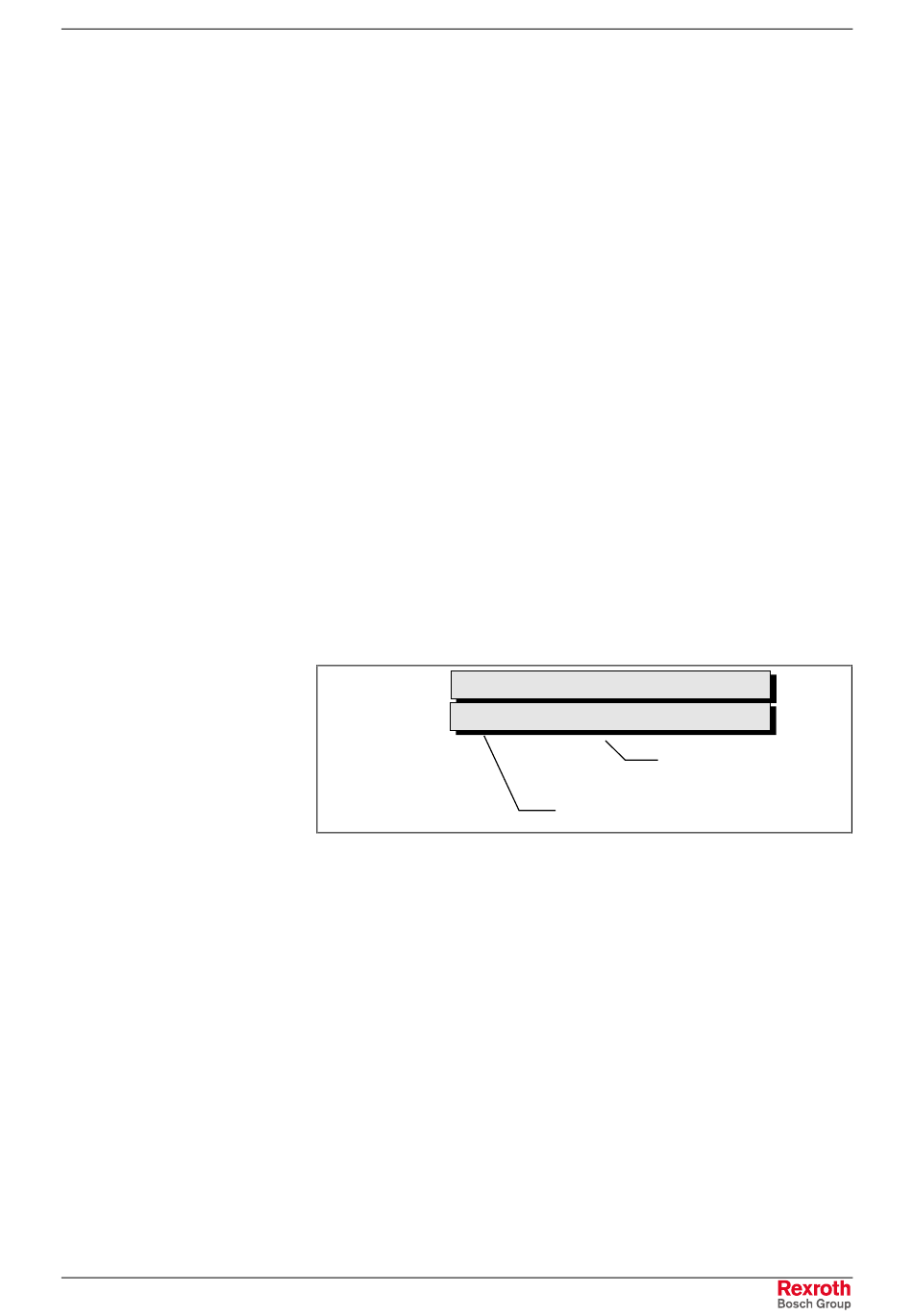

Fig. 12-1: Composition of Diagnostic Message with Diagnostic Message
Number and Text
For the example shown in the above graphic, "F-," "03" and "04" or "F2"
and "28" alternate in the H1 display.
Using status 53, the control can read the diagnostic message number
and the diagnostic message text as F228, Excessive deviation.
Diagnostic Message Descriptions
Excessive deviation
Diagnostic
message text
Diagnostic message number
12-1
