Bosch Rexroth OptiFeed-FS EcoDrive 03 FLP04VRS Functional Description page 135

ECODRIVE03-FL*-04VRS
DOK-ECODR3-FL*-04VRS**-FK01-EN-P

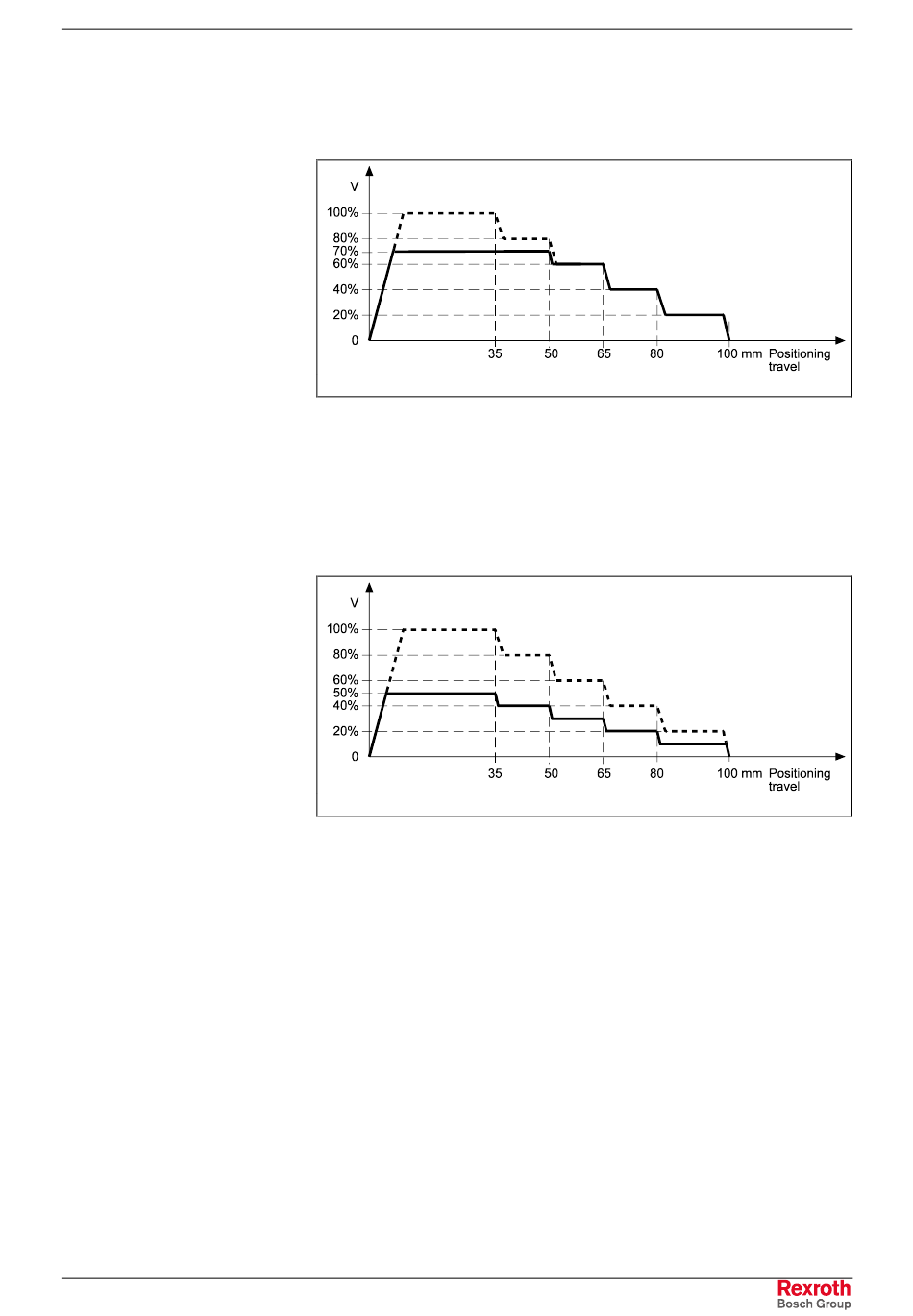

2) Program B – velocity limited to 70% by
instruction number 0006
Fig. 6-40: VEO Command – Limit Velocity to 70%
3) Program C - Multiplication by factor of '500' from instruction number
0008
Fig. 6-41: VEO Command - Multiplication by a Factor
Writing the User Program
Veo2_bef_AE.WMF
Veo3_bef_AE.WMF
6-71
