1-2
System Overview
1.3

Drive Controllers and Motors

Available Controllers
Supported Motor Types
The ECODRIVE03 family of drives is at present made up of eight different
units. They differ primarily in terms of which interface is used for machine
control (e.g. SPS, CNC). The drive controllers are available in three
different rating classes with peak currents of 40A, 100A and 200A.
For the FLP, two different interfaces are supported:
• DKC21.3
Parallel Interface 2
• DKC03.3
Profibus-DP Interface
For other application-specific firmware versions:
• DKC11.3
Analog Interface
• DKC01.3
Parallel Interface
• DKC02.3
SERCOS Interface
• DKC03.3
Profibus-DP Interface
• DKC04.3
Interbus Interface
• DKC05.3
CANopen Interface
• DKC06.3
DeviceNet Interface
The following motor types can be operated using ECODRIVE03 firmware:
• synchronous motors for standard applications up to 48 Nm.
• synchronous motors for more stringent demands up to 64 Nm.

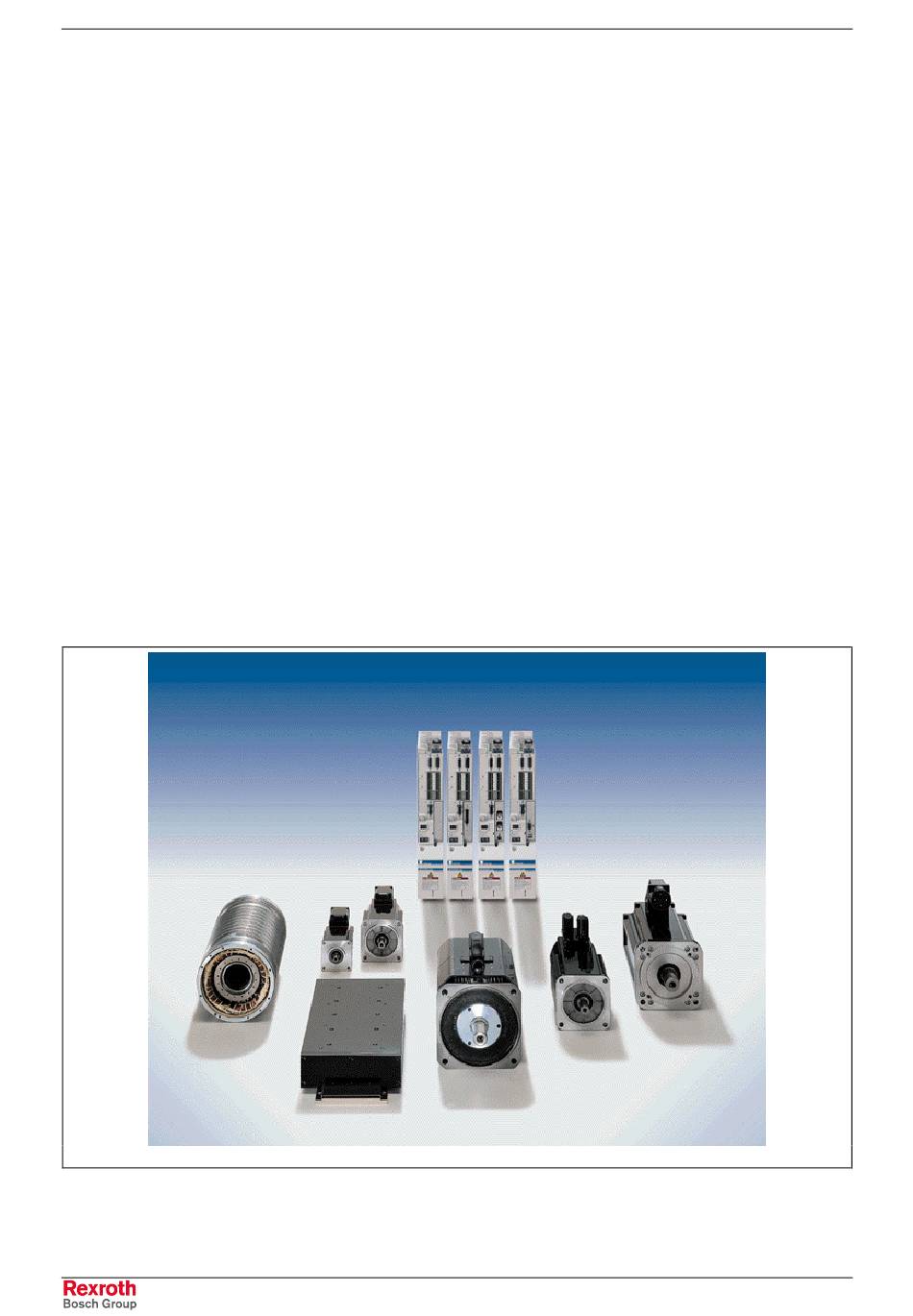

Fig. 1-1: The ECODRIVE03 Family of Drives and the Motors Supported
ECODRIVE03-FL*-04VRS
DOK-ECODR3-FL*-04VRS**-FK01-EN-P
