Program Examples

DOK-ECODR3-FL*-04VRS**-FK01-EN-P

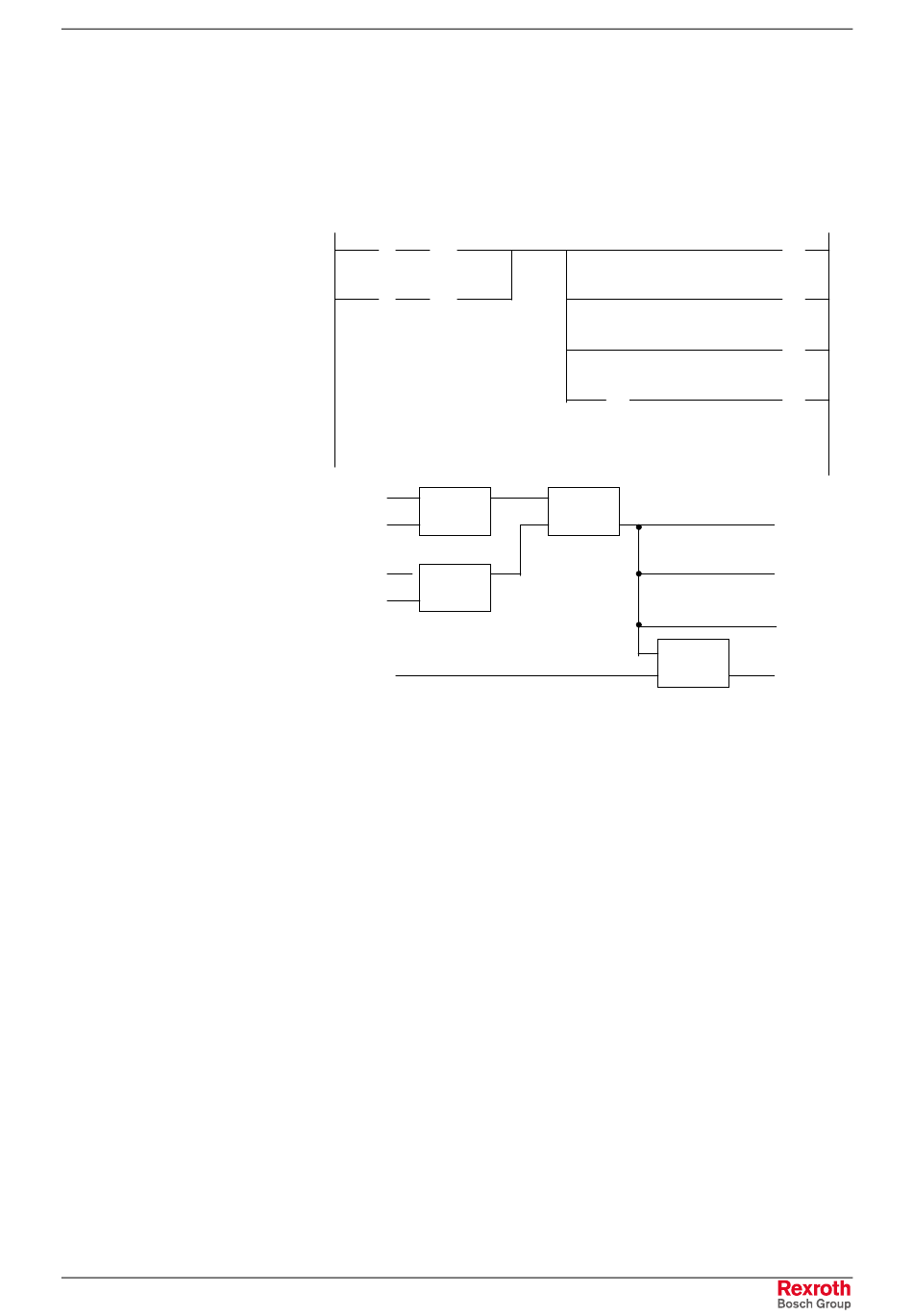

Example 1:
M6.00.0 M6.00.1
] [ ] [
M6.00.2 M6.00.3
] / [ ] [
M6.00.0 &
M6.00.1
M6.00.2 o &
M6.00.3
M6.00.4
LDN M6.00.2
AND M6.00.3
OR( M6.00.0
AND M6.00.1
)
ST M6.01.0
ST M6.01.1
ST M6.01.3
AND M6.00.4
ST M6.01.2
Logic Task
M6.00.4
] [
≥1
&
7-7
M6.01.0
( )
M6.01.1
( )
M6.01.3
( )
M6.01.2
( )
M6.01.0
M6.01.1
M6.01.3
M6.01.2
