ECODRIVE03-FL*-04VRS
Installation/Removal
Required Installation Space and
Measurements
Mounting Materials
Installing the Base Module
DOK-ECODR3-FL*-04VRS**-FK01-EN-P
The required installation space and the unit dimensions can be found in
the Section "Dimensions and Installation Measurements"
The input/output module is designed for mounting on a top-hat or
mounting rail. The following drawing contains the dimensions of the top-
hat rail.

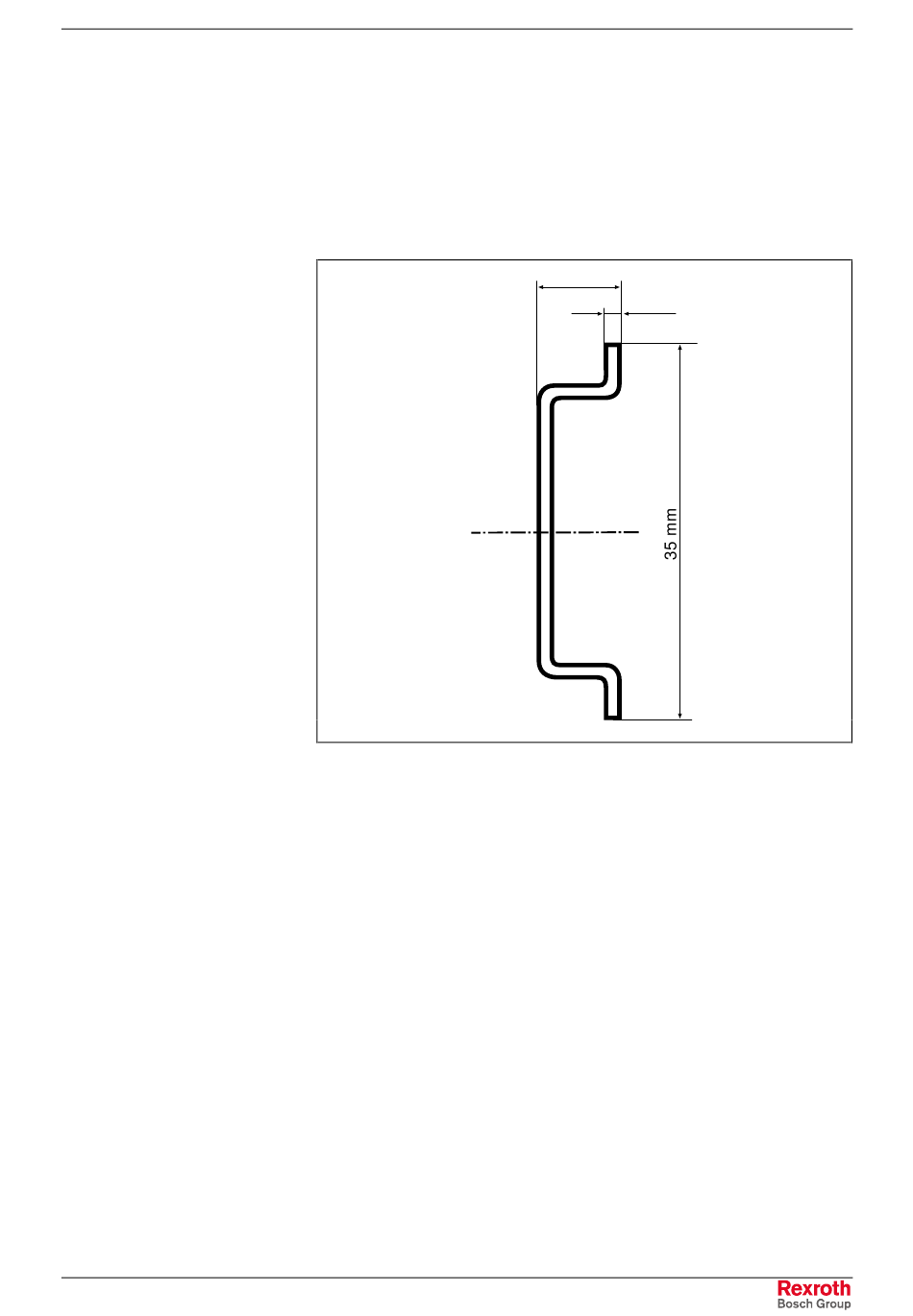

Fig. 15-8: Dimensions of the Top-Hat Rail
The base module and the electronic module together make up the
input/output module.
No tools are required to install the base module. It must be hooked into
the top-hat rail and latched into place, as shown in the following drawing.
EMD Module (EcoX-Bus)
7,5 mm
1 mm
15-9
mb5061f1.EPS
