ECODRIVE03-FL*-04VRS
Installation and Removal of the
Electronic Module
Installation and Removal of the
Description Plate
DOK-ECODR3-FL*-04VRS**-FK01-EN-P
Damage by live parts!
⇒ Turn off the power to the base module before installing
or removing the electronic module, so the electronic
module is not damaged.
CAUTION
No tools are required to install or remove the electronic module. It must
be inserted in the required slot on the base module and pressed in place,
until an audible click is heard for each of the four latches.
"Klick" "Klick" "Klick"
H1
H2
H3
H4
H5
X1
0
S2
X1
0
S1
"Klick" "Klick" "Klick"
1 2 3 4 5 6 7
F1
24V 17 18 19 20 21 22 23 24
F1
0V 33 34 35 36 37 38 39 40

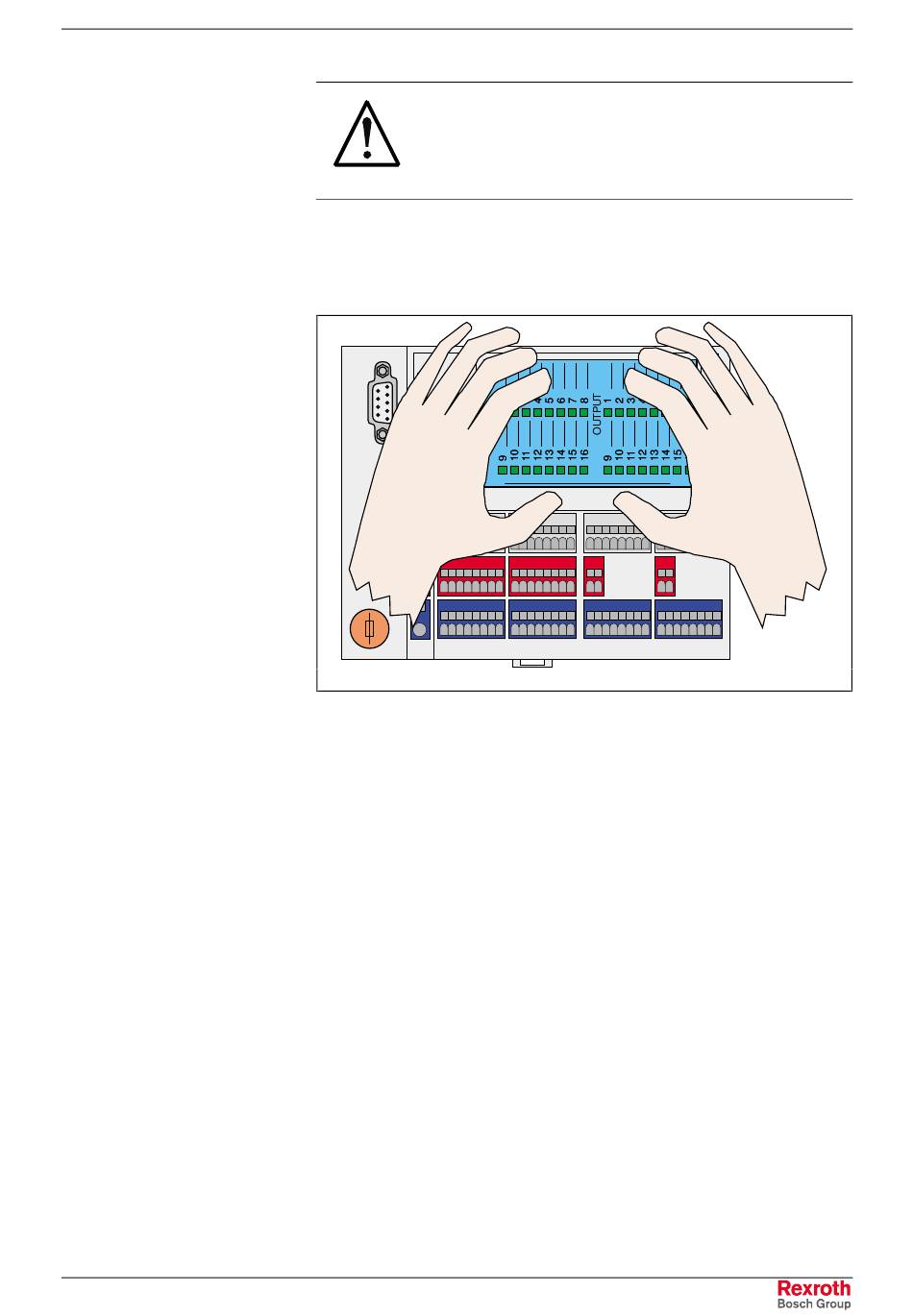

Fig. 15-11: Installing the Electronic Module
To remove the electronic module, press all four latches simultaneously,
hold them down and pull the electronic module away from the base
module.
The description plate is plastic. It can be removed for replacement or to
place on a flat surface for labeling. (For labeling we recommend a water
proofed felt-tip pen).
To install or remove the description plate, no tools are required. To
remove it, use fingers to slightly bend it free of the latch points. Installation
is accomplished in the opposite order.
EMD Module (EcoX-Bus)
PUSH PUSH
8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
25 26 27 28 29 30 31 32 17 18 25 26
41 42 43 44 45 46 47 48 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
INPUT I OUTPUT O
15-11
"Klick" "Klick" "Klick"
"Klick" "Klick" "Klick"
eb0010f1.EPS
