13.1 DKC21.3

DOK-ECODR3-FL*-04VRS**-FK01-EN-P

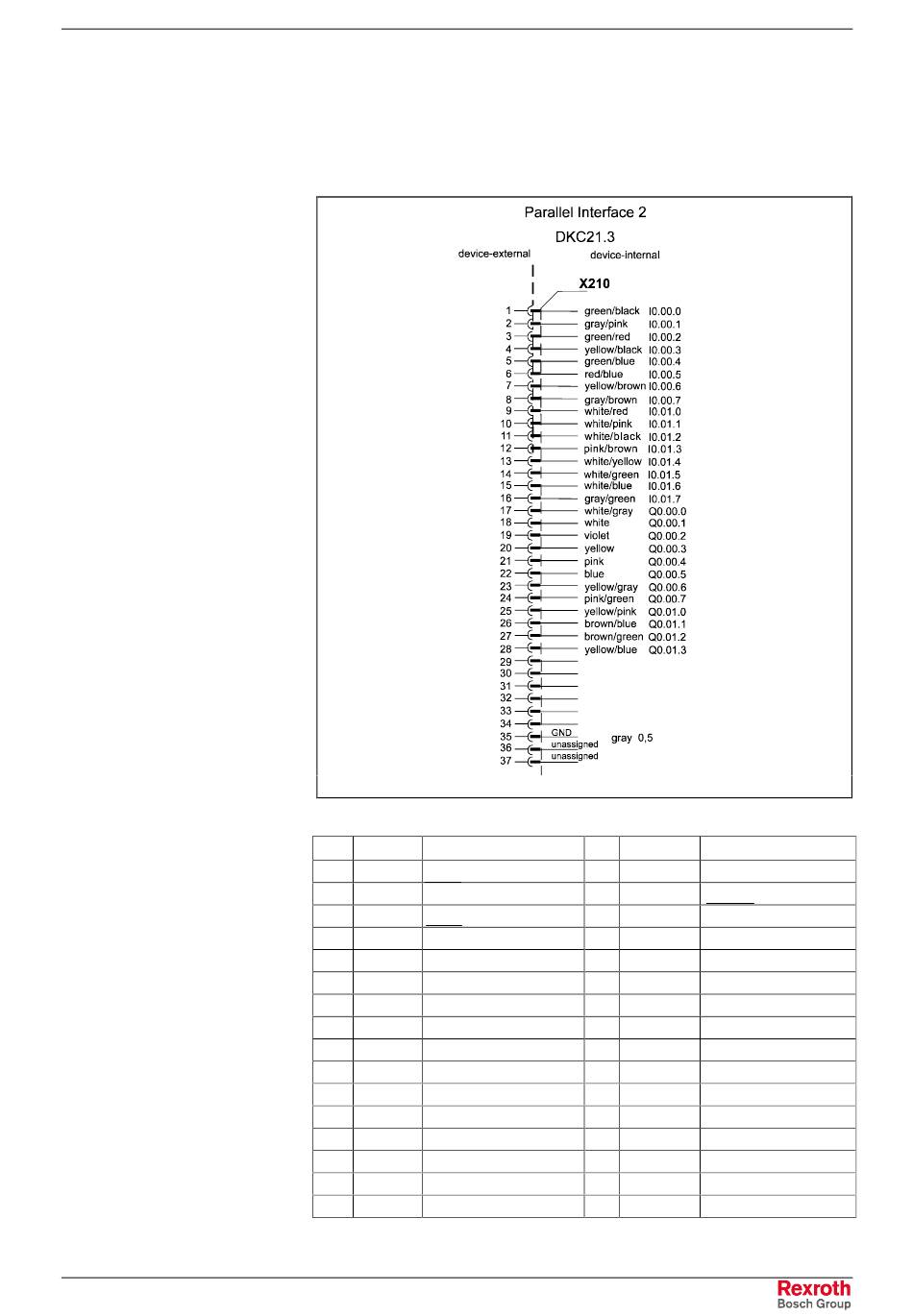

Fig. 13-1: X210 Connector for DKC21.3 with IKS4037 Cable Colors
Pin Inputs
1 I0.00.0 Parameters
2 I0.00.1 Manual/Automatic
3 I0.00.2 Start
4 I0.00.3 Stop
5 I0.00.4 Jog forward
6 I0.00.5 Jog reverse
7 I0.00.6 Input 1
8 I0.00.7 Input 2
9 I0.01.0 Input 3
10 I0.01.1 Input 4
11 I0.01.2 Input 5
12 I0.01.3 Input 6
13 I0.01.4 Input 7
14 I0.01.5 Input 8
15 I0.01.6 Input 9
16 I0.01.7 Input 10
Connectors
Ap5164fe_1_AE.WMF
Pin Outputs
17 Q0.00.0 Manual
18 Q0.00.1 Automatic
19 Q0.00.2 Fault
20 Q0.00.3 Run
21 Q0.00.4 Output 1
22 Q0.00.5 Output 2
23 Q0.00.6 Output 3
24 Q0.00.7 Output 4
25 Q0.01.0 Output 5
26 Q0.01.1 Output 6
27 Q0.01.2 Output 7
28 Q0.01.3 Output 8
13-1
