ECODRIVE03-FL*-04VRS
15.4 Installation
Dimensions and Installation Measurements
DOK-ECODR3-FL*-04VRS**-FK01-EN-P

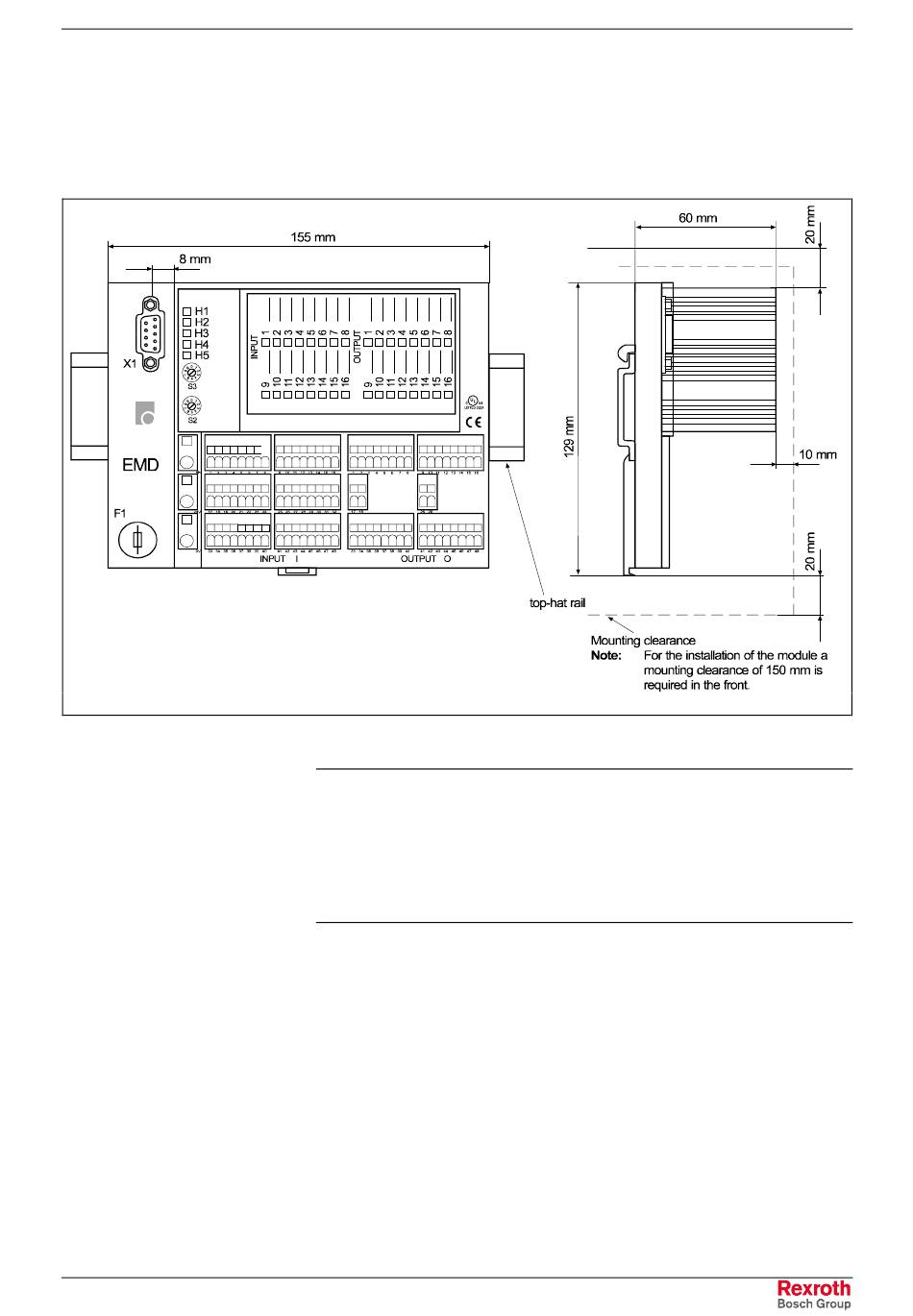

Fig. 15-6: EMD Unit Dimensions and Installation Space
Note:
To ensure adequate ventilation of the input/output module and
to avoid overheating, please adhere to the required installation
space shown in Fig 15-6.
Please also note that the required installation space of
150 mm is required at the front. Additionally, the D-SUB
connector for the bus connection may protrude beyond the
unit!
EMD Module (EcoX-Bus)
mb5059f1_AE.WMF
15-7
