15-10
EMD Module (EcoX-Bus)
Removing the Base Module

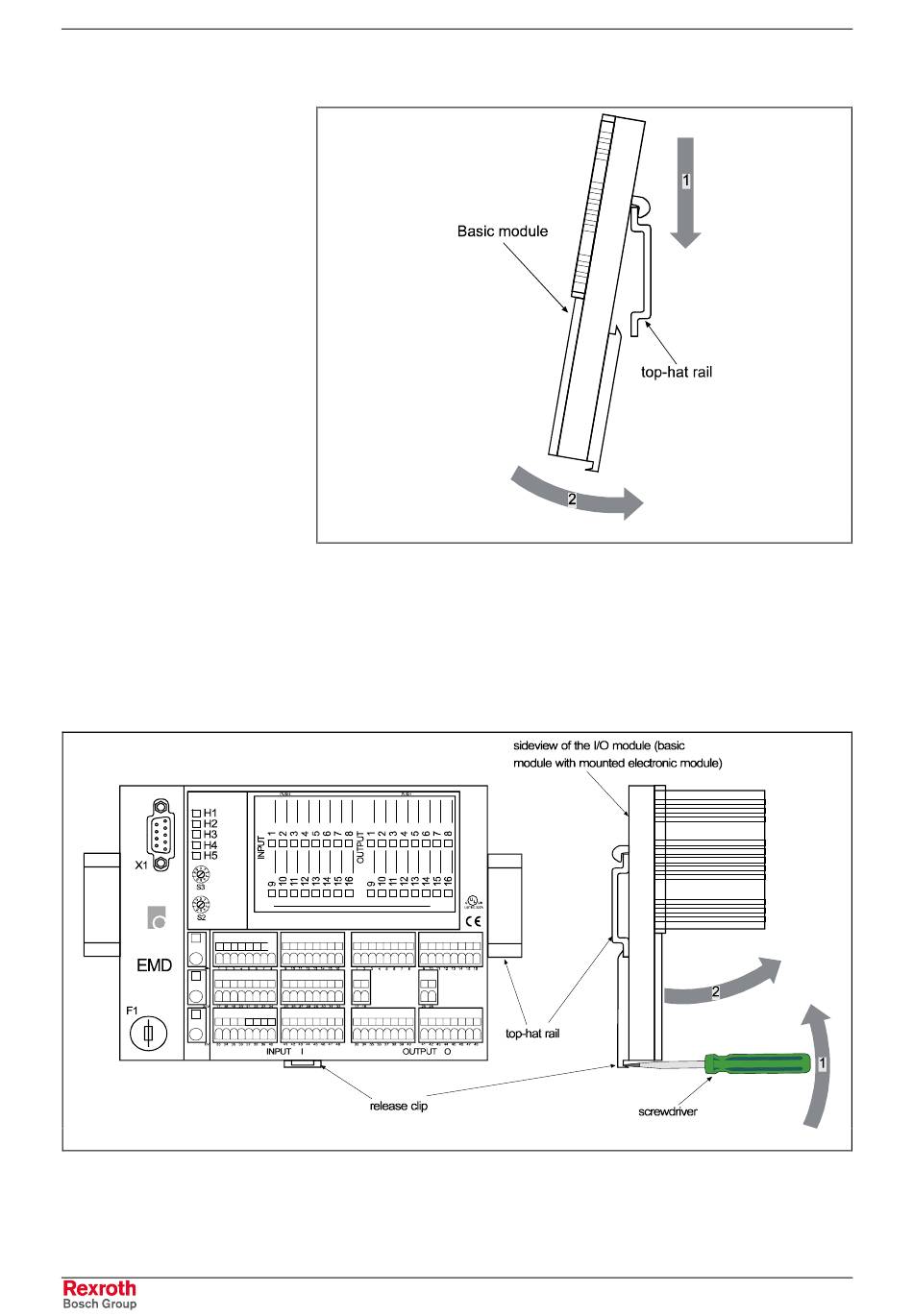

Fig. 15-9: Installing the Base Module
Removing the base module requires a 6 mm x 1 mm screwdriver.
Remove the base module by placing the tip of the screwdriver on the
release clip of the base module. Proceed as shown in the following
drawing.
Fig. 15-10: Removing the Base Module
ECODRIVE03-FL*-04VRS
eb0008f1_AE.WMF
eb0009f1_AE.WMF
DOK-ECODR3-FL*-04VRS**-FK01-EN-P
