EMD Module (EcoX-Bus)

15.1 Digital Input/Output Module

System Setup

Functionality and
Communication
Physical Characteristics
DOK-ECODR3-FL*-04VRS**-FK01-EN-P
Using the digital input/output module described in this documentation, the
number of digital inputs (16 per module) and outputs (16 per module) can
be increased for drive controllers in the ECODRIVE03 family.
Input/Output modules and the drive controller are connected via the EcoX
Bus. Via this bus, signals and the firmware required for the modules are
transmitted.
The input/output module consists of two parts:
• the base module
• the electronic module (shown in detail in the following drawing). A
description plate that allows the user to add information is attached to
the electronic module.
PUSH
H1
H2
H3
H4
H5
X1
0
S2
0
S1
EMD
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7
24V 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 17 18
F1
0V 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 33 34 35 36 37 38 39 40
INPUT I OUTPUT O

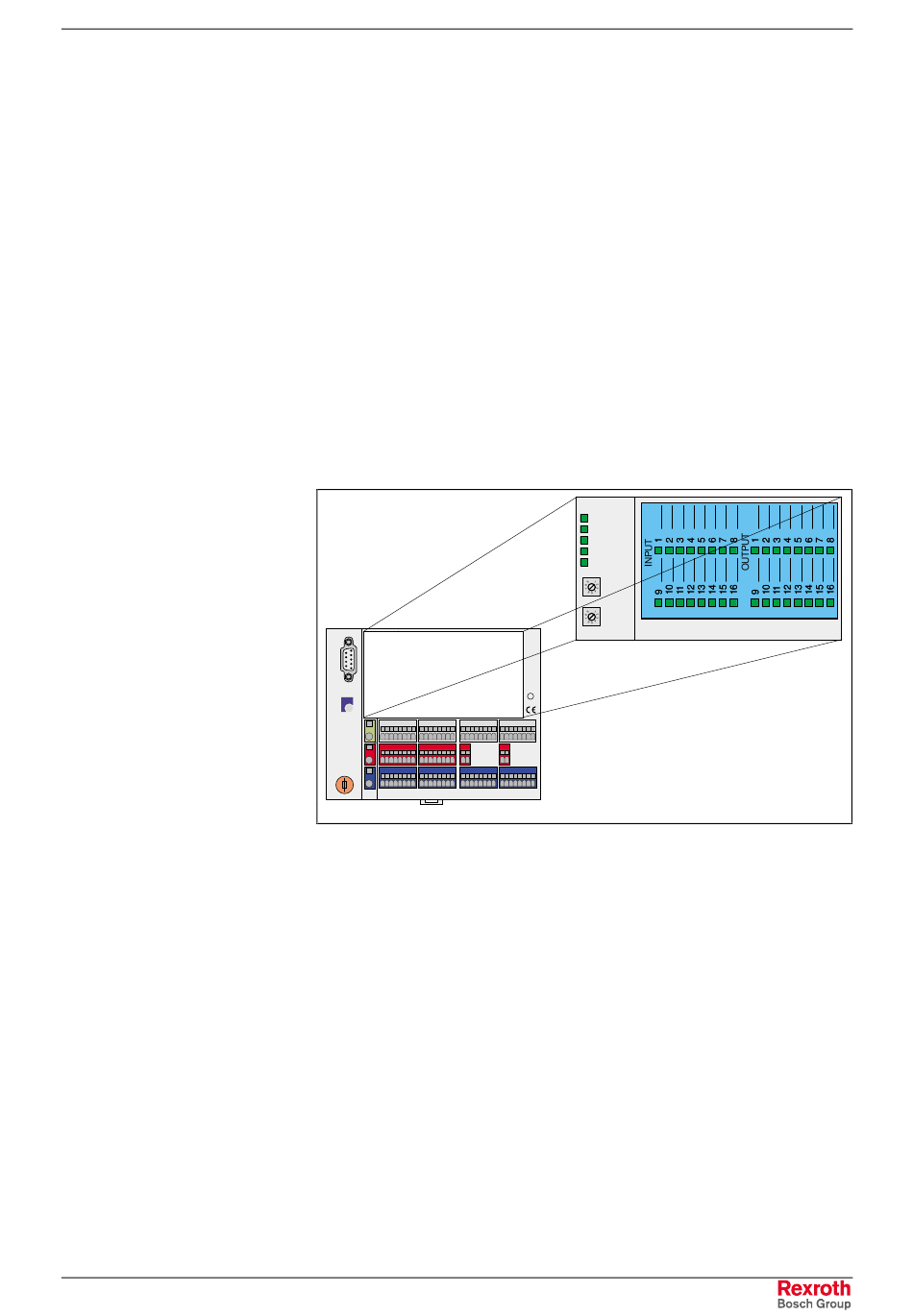

Fig. 15-1: EMD Digital Input/Output Module
The base module is designed for mounting on a top-hat rail. The power
supply, EcoX Bus, sensors and actors must be connected to this rail. The
electronic module connector must be inserted into the base module.
