10-8
Interface

Profibus Interface DKC 03.3 Programmable Inputs/Outputs

BTV04 Programmable Inputs/Outputs

Profibus Inputs
32 inputs, I2.02.0 to I2.05.7, are available.
Profibus Outputs
32 outputs, Q2.02.0 to Q2.05.7, are available.
See also Section 11.2 Profibus
These inputs and outputs are only available if a BTV04 is being used as
an operator console. The parameters must be designated as:
• B002 0 1 0 0 0 000
• B009 1 xxx (xxx = 200 – 500)
The inputs and outputs are transferred serially to the BTV04. The transfer
time can take up to 500ms.
BTV04 X4 Inputs
10 inputs, I1.03.0 to I1.04.1 are available.
BTV04 X5 Outputs
11 outputs, Q1.03.0 to Q1.04.2, are available.
Some keys can be queried from the user programs.
I1.01.3
I1.01.2
I1.01.1
I1.01.0

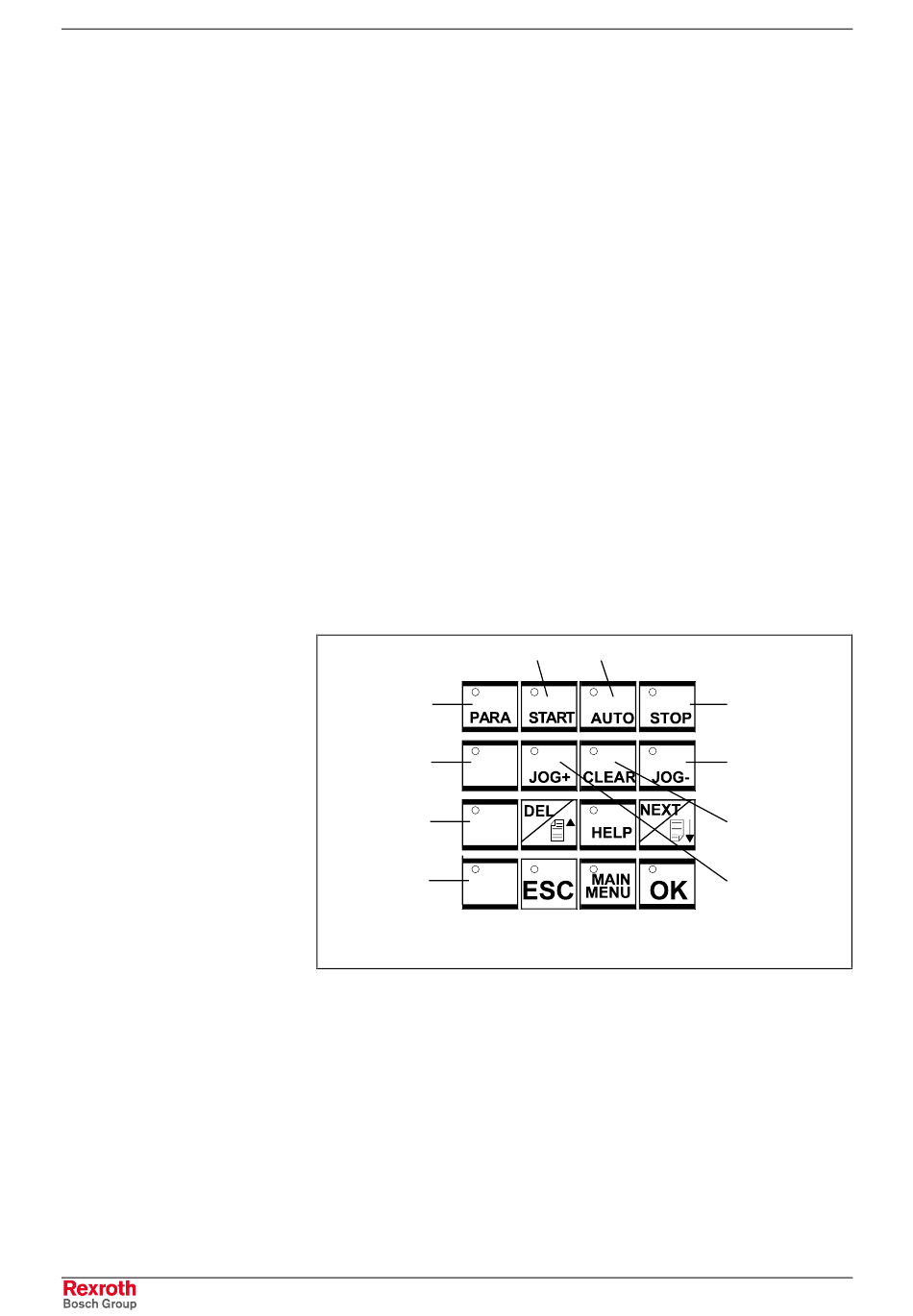

Fig. 10-5: BTV04 Key Inputs
Following LED can be switched on and off:
Q1.01.0
Q1.01.1
Q1.01.2
PARA Q1.01.3
START Q1.01.4
AUTO Q1.01.5
STOP Q1.01.6
CLEAR Q1.01.7
ECODRIVE03-FL*-04VRS
I1.01.4 I1.01.5
DOK-ECODR3-FL*-04VRS**-FK01-EN-P
I1.01.6
I1.00.1
I1.01.7
I1.00.0
