Diagnostic Message Output
DOK-ECODR3-FL*-04VRS**-FK01-EN-P
If more than one diagnostic message is active, then the message with the
highest priority will be displayed. If more than one diagnostic message is
Priority
active, then the message with the highest priority will be displayed.
The following graphic classifies the operating states in order of
importance.

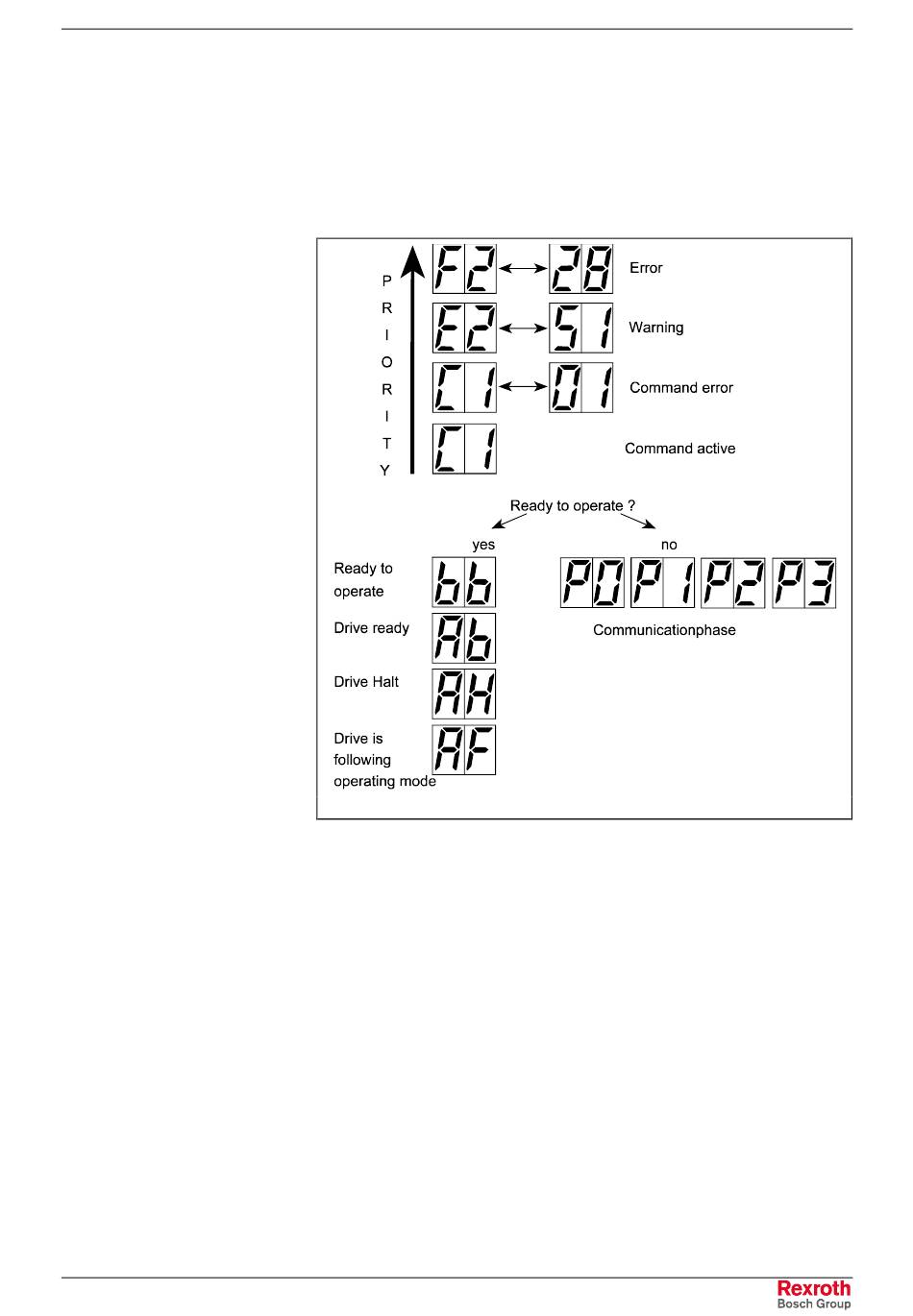

Fig. 12-3: Diagnostic Message Priority Diagram
The plain-text diagnostic message contains the diagnostic message
number followed by the diagnostic message text, as shown in the
example, "Excessive deviation" (Fig. 12-1).
It can be read out via Status 53, Diagnostic, and is used for direct display
of the drive status on a user interface.
The language of the plain-text diagnostic message can be changed,
depending on the language selection (Parameter B000).
Diagnostic Message Descriptions
12-3
